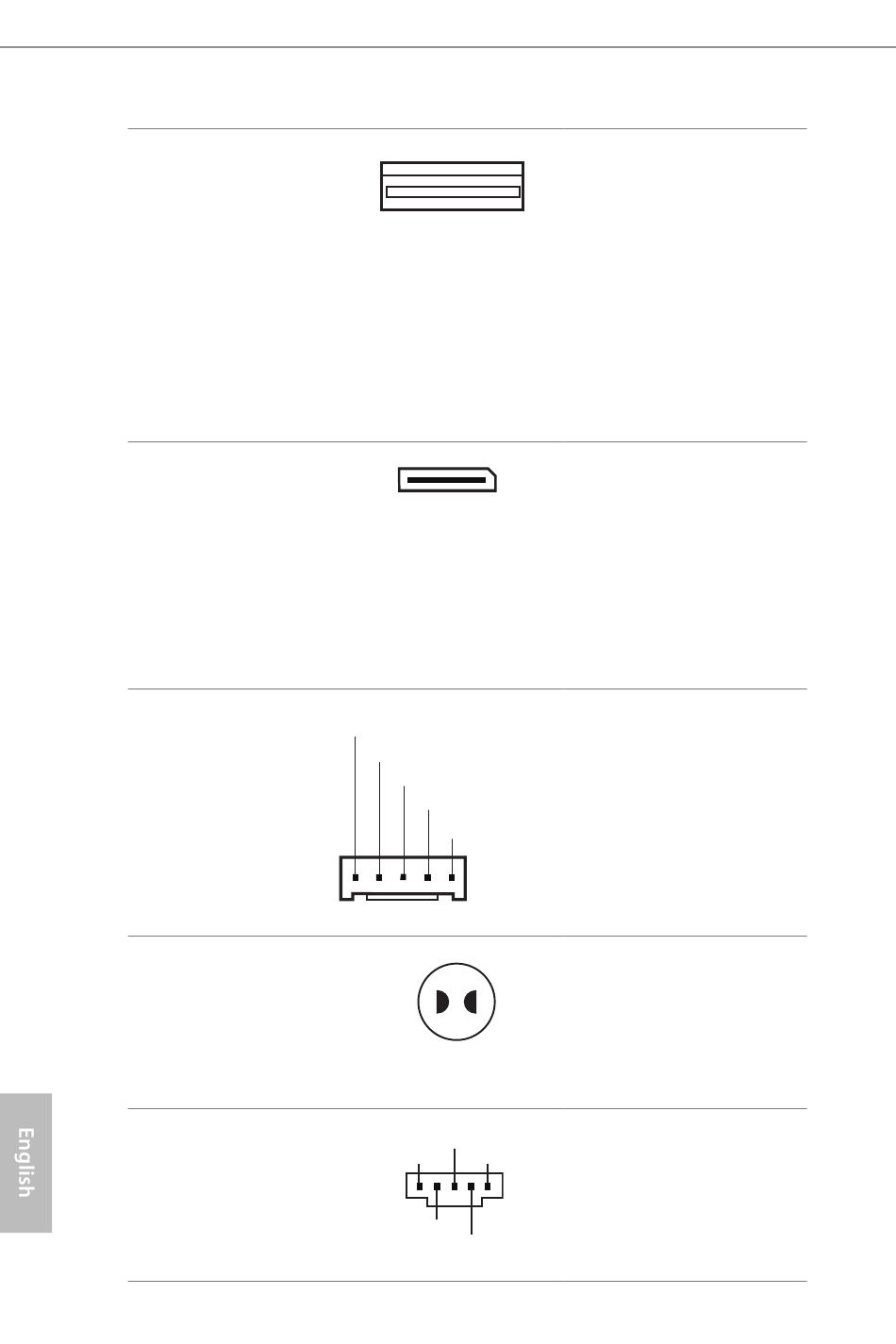

ASROCK SPC741D8QM3-NL User Manual page 36

Mini Cool Edge IO x8
Connectors
(MCIO1)
(see p.6, No. 8)
(MCIO2)
(see p.6, No. 9)
(MCIO3)
(see p.6, No. 3)
(MCIO4)
(see p.6, No. 4)
OCuLink Connector
(OCU1)
(see p.6, No. 19)
BMC SMB Header
(5-pin BMC_SMB1)
(see p.6, No. 45)
Clear CMOS Pad
(CLRMOS1)
(see p.6, No. 28)
PSU SMBus Header
(5-pin PSU_SMB1)
(see p.6, No. 17)
28
BMC_SMB_PRESENT_1_N
Power
BMC_SMBCLK
GND
BMC_SMBDATA
ALERT
SMBCLK +3V
1
SMBDATA
GND
This motherboard supports
four Mini Cool Edge IO x8
Connectors. Please connect
these connectors to the HDD
backplane board.
Please connect PCIE SSDs to
the connector.
The header is used for the SM
BUS devices.
This allows you to clear the
data in CMOS. To clear CMOS,
take out the CMOS battery and
short the Clear CMOS Pad.
PSU SMBus monitors the
status of the power supply, fan
and system temperature.
