2.8 ATX PSU Power Connections
This motherboard support ATX power input. Please refer to the table below for the
required connections between the motherboard and the power supply.
DC-IN
PSU
12V 8pin

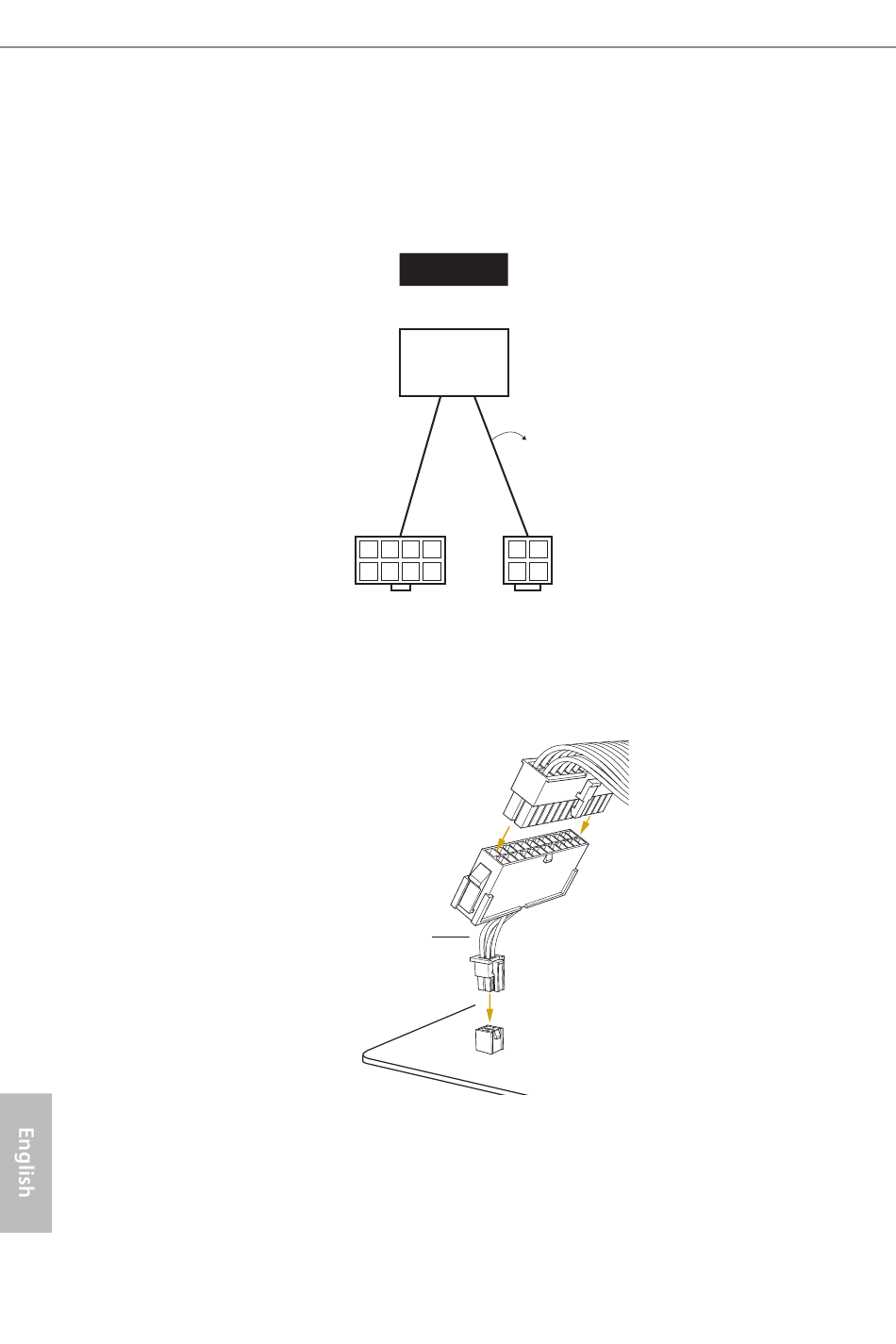

The following diagram illustrates how to connect the bundled ATX 24pin-to-4pin
converter cable.
32
ATX PSU
PSU
(via a 24pin-to-4pin
Converter Cable)
12V 8pin
ATX 4pin
24pin-to-4pin
Converter Cable
