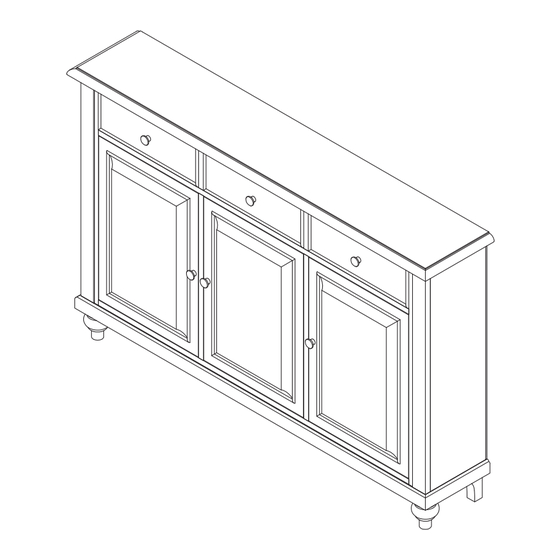

PRODUCT NAME: Martin 3 Door Console
ITEM NUMBER: MS110
ASSEMBLED DIMENSIONS : 36"H x 55 3/4"W x 10 3/4"D
PRODUCTS ARE NOT INTENDED
FOR COMMERCIAL USE.
UPDATED: 10-26-2020
Prevent accidentally discarding small parts or
hardware. Retain all carton contents until assembly
and installation are complete.
Customer Service: 800-367-2810
Online: www.ballarddesigns.com
MADE IN CHINA
Page 1 of 4
Advertisement
Related Manuals for Ballard Designs Martin MS110
Summary of Contents for Ballard Designs Martin MS110
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Martin 3 Door Console ITEM NUMBER: MS110 ASSEMBLED DIMENSIONS : 36”H x 55 3/4”W x 10 3/4”D Prevent accidentally discarding small parts or hardware. Retain all carton contents until assembly and installation are complete. PRODUCTS ARE NOT INTENDED MADE IN CHINA FOR COMMERCIAL USE.
- Page 2 Assemble in location for intended use. REQUIRED TOOLS: Phillips Screwdriver, Ltr. Qty. Hardware Included Allen Wrench (included) Allen Wrench -Two person assembly suggested. Allen Bolts Remove all parts, hardware and protective packaging from carton Lock Washers and carefully arrange on a clean, level, padded surface.
- Page 3 Assemble in location for intended use. STEP 1: Place Console (G) backside down onto a level, padded surface then turn in Front Feet (H) as illustrated. Fully tighten. Next, install Back Feet (I) using Allen Bolt (B) with Lock Washer (C) and Flat Washer (D).
- Page 4 WALL ANCHORING HARDWARE (ANTI-TIP) Ltr. Qty. Hardware Included Large Screw Small Screw WARNING Tip-Over Hazard Bracket Serious or fatal crushing injuries can occur from a furniture tip-over Prevent tipping accidents. Anchor your furniture. Retention Belt Installation: 1. Place furniture against wall at desired location then locate and mark a Wall Stud behind unit. 2.
