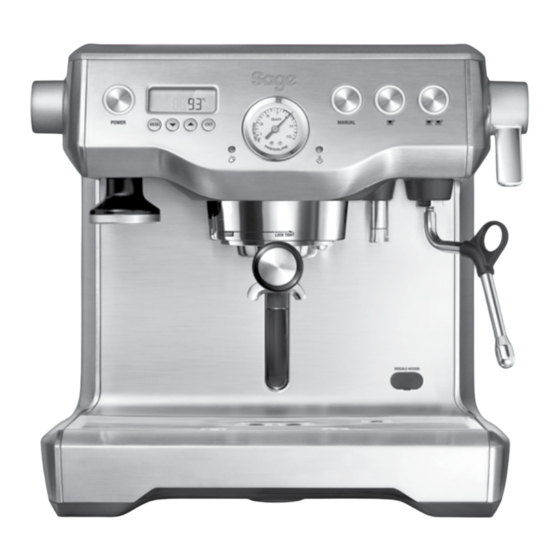

Sage the Dual Boiler BES920BSS Instruction Booklet

Hide thumbs

page of 36

/ 36
Bookmarks

Quick Links

Download this manual

https://tehnoteka.rs

Uputstvo za upotrebu (EN)

SAGE aparat za kafu BES920BSS

Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike,

potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji.

Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike

i konkurentne cene proizvoda.

Posetite nas i uživajte u ekskluzivnom iskustvu pametne kupovine klikom na link:

https://tehnoteka.rs/p/sage-aparat-za-kafu-bes920bss-akcija-cena/

Need help?

Do you have a question about the the Dual Boiler BES920BSS and is the answer not in the manual?

Questions and answers

Summary of Contents for Sage the Dual Boiler BES920BSS

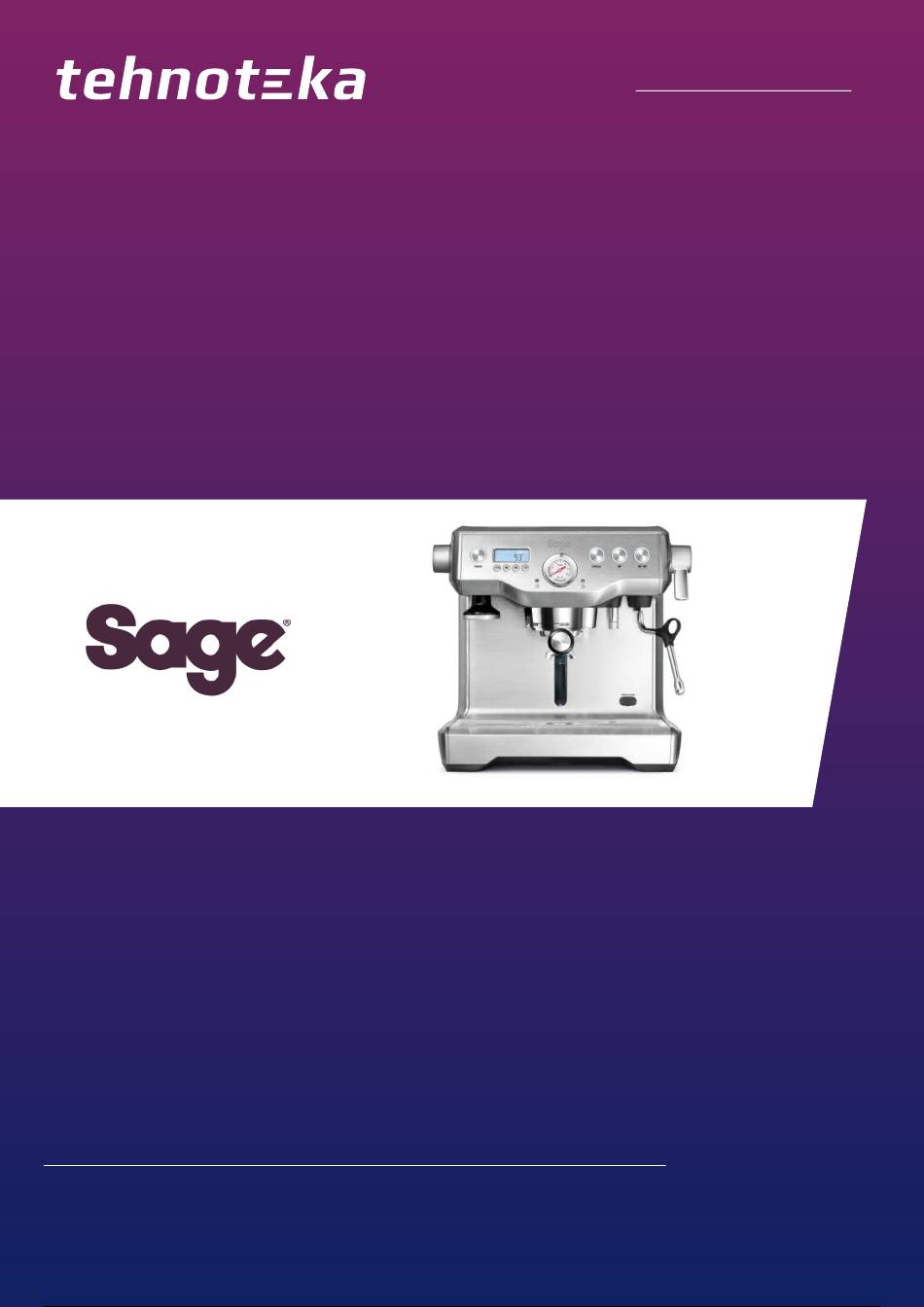

Page 1 Uputstvo za upotrebu (EN) SAGE aparat za kafu BES920BSS Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike, potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji. Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike i konkurentne cene proizvoda.
Page 2 Dual Boiler ™ Instruction Booklet BES920...
Page 3 CONTENTS We recommend safety first Features of your new appliance Know your new appliance Operating your new appliance Coffee making tips & preparation Care & cleaning Troubleshooting Coffees to try...
Page 4 WE RECOMMEND SAFETY FIRST At Sage we are very safety conscious. We design and ® manufacture appliances with your safety foremost in mind. We also ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.
Page 5 This appliance can be used material and promotional by children aged from labels or stickers before using 8 years and above if they have the Sage for the first time. been given supervision or instruction concerning use • To eliminate a choking...
Page 6 Do not use this return the entire appliance appliance for other than its to the nearest authorised intended use. Do not use in Sage Service Centre for moving vehicles or boats. examination, replacement Do not use outdoors. or repair.
Page 7 WE RECOMMEND SAFETY FIRST • Ensure the portafilter is firmly The symbol shown inserted and secured into the indicates that this group head before starting an appliance should not be extraction. Never remove the disposed of in normal portafilter during the brewing household waste.
Page 8 FEATURES OF YOUR NEW APPLIANCE TRIPLE HEAT SYSTEM ADDITIONAL FEATURES Dual Stainless Steel Boilers LCD Interface Dedicated espresso and steam boilers for Displays current settings and simplifies simultaneous milk texturing and espresso programming functions. extraction at the optimum temperature. High Volume Instant Steam Actively Heated Group Head Dedicated 950ml steam boiler delivers Commercial 58mm group head with...
Page 9 KNOW YOUR NEW APPLIANCE Top fill 2.5 litre removable water tank Dedicated hot water outlet delivers with integrated water filter and backlit instant hot water for long blacks & level indicator. pre-heating cups. POWER button 360° swivel action steam wand with 3 hole tip for a silkier texture.
Page 10 KNOW YOUR NEW APPLIANCE Single Wall Dual Wall ACCESSORIES LCD INTERFACE Stainless steel frothing jug Display Modes Single & dual wall filter baskets • Shot Temp (1 & 2 cup) • Shot Clock Timer Water filter holder with filter • Clock Cleaning disc Allen key...
Page 11 OPERATING YOUR NEW APPLIANCE FIRST USE WARNING Both the STEAM LEVER and Initial Start Up HOT WATER dial must be in the • Fill tank with cold tap water. CLOSED position for the machine to • Dip Water Hardness Test Strip into enter START UP mode.
Page 12 OPERATING YOUR NEW APPLIANCE START UP LCD INTERFACE Press the POWER button to switch the Display modes machine ON. The POWER button will flash 3 modes can be displayed on the LCD and the LCD screen will display the current screen: Shot Temp, Shot Clock or Clock.
Page 13 OPERATING YOUR NEW APPLIANCE GENERAL OPERATION MANUAL The MANUAL button allows you to 1 CUP control the espresso pour volume to suit Press 1 CUP once to extract a single shot your preference. of espresso at the pre-programmed Press MANUAL button once to start the duration (30secs).
Page 14 OPERATING YOUR NEW APPLIANCE STEAM LCD PROGRAMMING FUNCTIONS For instant steam, move STEAM LEVER to To program the machine, press MENU OPEN position. The Steam LED will be On. button once. The LCD will display all programming functions. Continue to press MENU button to select your desired function.
Page 15 OPERATING YOUR NEW APPLIANCE SHOT DURATION SHOT VOLUME 1 CUP Duration Programming 1 CUP Volume Programming Press MENU button until SHOT VOL icon Press MENU button until SHOT VOL flashes and 1 CUP is displayed on the LCD icon flashes and 1 CUP is displayed on screen.
Page 16 OPERATING YOUR NEW APPLIANCE EXTRACTION TEMPERATURE AUTO START Press MENU button until SHOT TEMP To use AUTO START, first ensure clock icon flashes. The LCD will display the has been set. current shot temperature setting. NOTE Clock must first be set prior to activating the auto start feature.
Page 17 OPERATING YOUR NEW APPLIANCE If AUTO START is ON, the LCD will Press UP or DOWN arrow to adjust the time. display a Clock icon. Press MENU button and the current Auto Start time will be displayed on the LCD screen. Press EXIT button.
Page 18 OPERATING YOUR NEW APPLIANCE ADVANCED ESPRESSO FUNCTIONS Resetting default settings The machine has the following Press & Hold - 1 CUP default settings: Press & hold 1 CUP to bypass the Temperature – 93°C pre-infusion phase and deliver water to Pre-Infusion –...
Page 19 OPERATING YOUR NEW APPLIANCE Temperature Unit - ˚C/˚F (SEt) Machine Audio (Snd) Temperature Unit will be displayed on the LCD Machine Audio refers to the volume level screen as SEt. Press MENU to Select. Use UP and DOWN arrows to select desired of the ‘beeps’...
Page 20 OPERATING YOUR NEW APPLIANCE ADVANCED FEATURES ALERTS Pre-Infusion Programming STEAM LED Flashing At START UP With machine in STANDBY mode, press The machine will not enter START UP mode UP and DOWN arrows together to enter when the STEAM LEVER is in the OPEN Pre-Infusion programming mode.
Page 21 OPERATING YOUR NEW APPLIANCE CLEAN ME! The machine will detect when 200 extractions have been carried out since the last clean cycle. The CLEAN ME! icon will be displayed on the LCD screen the next time the machine enters START UP mode. For information on how to clean the machine, refer to the CLEAN CYCLE instructions on page 24.
Page 22 COFFEE MAKING TIPS & PREPARATION PRE-HEATING DUAL WALL Filter Baskets Use Dual Wall filter baskets if using Heating your cup or glass pre-ground coffee. A warm cup will help maintain the coffee’s Dual Wall filter baskets regulate the pressure optimal temperature. Pre-heat your cup by and help to optimise the extraction regardless rinsing with hot water from the Hot Water of the grind, dose, tamp pressure or freshness.
Page 23 COFFEE MAKING TIPS & PREPARATION • Tamp down firmly (using approx. NOTE 15 – 20kgs of pressure). The amount of pressure is not as important as If the extraction is too fast, make the consistent pressure every time. grind finer & repeat above steps. If the extraction is too slow, make the grind coarser and repeat above steps.
Page 24 COFFEE MAKING TIPS & PREPARATION The flavour of your coffee will depend on • Keep the tip at or slightly below the many factors, such as the type of coffee surface, continuing to maintain the vortex. Texture the milk until sufficient beans, degree of roast, freshness, coarseness volume is obtained.
Page 25 CARE & CLEANING CLEANING CYCLE INSTALLING WATER FILTERS • CLEAN ME! will be displayed on • Soak filter in a glass of water for LCD to indicate when a cleaning cycle 5 minutes. is required (approx. 200 shots). • Rinse the filter and mesh under •...
Page 26 CARE & CLEANING CLEANING THE FILTER BASKETS CLEANING THE OUTER HOUSING AND PORTAFILTER & CUP WARMING TRAY • The filter baskets and portafilter should • The outer housing and cup warming tray be rinsed under hot water directly after can be cleaned with a soft, damp cloth. use to remove all residual coffee oils.
Page 27 CARE & CLEANING 2 – Empty Boilers DESCALE (dESC) Remove the grey silicone cover on the lower front panel marked DESCALE NOTE ACCESS. Even if you used the provided water filter, we recommend you to descale DESCALE ACCESS DESCALE ACCESS DESCALE ACCESS DESCALE ACCESS if there is scale build-up in the water...
Page 28 Press 1 Cup button and the LCD screen will tray may be hot. show countdown time (20 minutes). Empty water tank, remove water filter. Dissolve 1 sachet of Sage Descaler into ™ 1 litre of warm water. Pour solution into the water tank.
Page 29 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO The Hot Water LED • Hot Water dial is open. Turn the Hot Water dial to the CLOSED position. flashes when the machine is turned On. The Steam LED flashes • Steam Lever is open. Move the Steam Lever to the CLOSED position.
Page 30 Turn machine Off. Wait for 60 minutes and turn ceases to operate. machine back On. If problem persists please contact Sage Customer Service or go to sageappliances.com Steam pouring out of Turn machine Off. Wait for 60 minutes and turn group head.
Page 31 RAZOR™ dosing tool. If the dose is correct, make the grind finer. If the pressure gauge reads below 5 bar, contact Sage Customer Service Centre. Coffee not hot enough. • Cups not preheated. Rinse cups under hot water outlet and place on cup warming tray.
Page 32 Unable to set auto • Clock not set. Set clock. start time. E1, E2 or E3 error • An error that cannot Contact Sage Customer be reset by the user Service or go to message on LCD screen. has occurred. sageappliances.com...
Page 33 / Hot water outlet machine is designed with no/low mineral leaks. to function. content such as de-mineralised or distilled water. If problem persists please contact Sage Customer Service or go to sageappliances.com...
Page 34 COFFEES TO TRY CAPPUCCINO A single shot of espresso with textured milk and garnished with drinking chocolate. ESPRESSO Intense and aromatic, it is also known as an espresso or short black and is served in a small cup or glass. LATTÉ...
Page 35 Sage Appliances GmbH Johannstraße 37, 40476 Düsseldorf, Deutschland Für den Kundendienst besuchen Sie bitte www.sageappliances.com BRG Appliances Limited Unit 3.2, Power Road Studios, 114 Power Road, London, W4 5PY Freephone (UK Landline): 0808 178 1650 Mobile Calls (National Rate): 0333 0142 970 www.sageappliances.com...
Page 36 Ovaj dokument je originalno proizveden i objavljen od strane proizvođača, brenda Sage, i preuzet je sa njihove zvanične stranice. S obzirom na ovu činjenicu, Tehnoteka ističe da ne preuzima odgovornost za tačnost, celovitost ili pouzdanost informacija, podataka, mišljenja, saveta ili izjava sadržanih u ovom dokumentu.
