1. Brief
The FB2414 is an all-in-one, PC/104, DMP Vortex low power CPU module. This user's quick setting
provides the jumper settings, connector location, and their pin assignment.

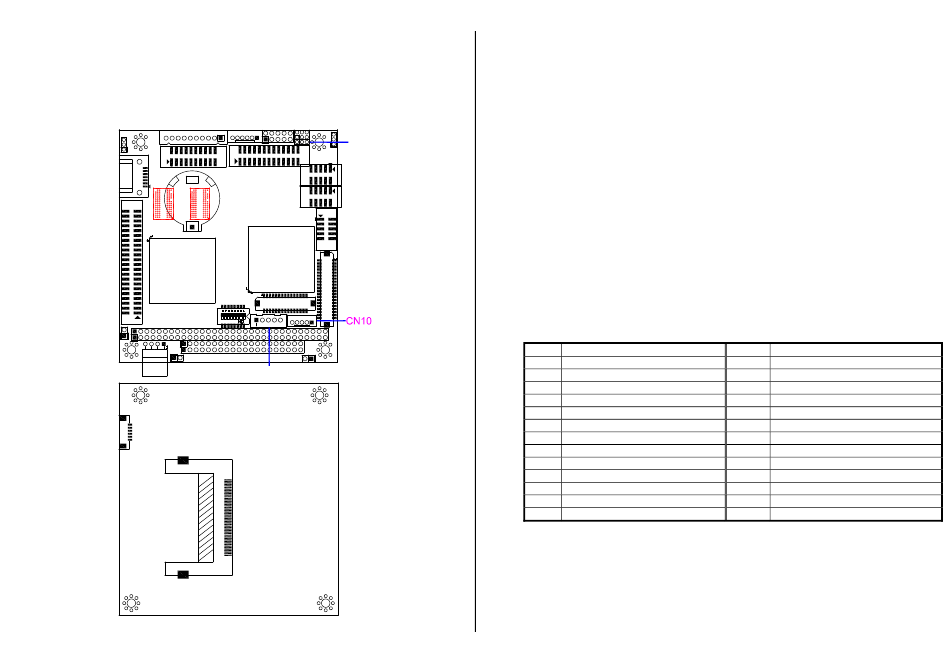

2. Board Placement
JP1
CN2
U2
CN1
U1
BUS1
JP2
J5
CN6
J2
CF1
www.fabiatech.com
FB2414 Series User's Quick Setting
J6
J4
J1
JP4 JP5
JP3
CN12
CN11
CN4
U3
CN3
BT1
CN7
U11
CN8
CN9
SW1
J3
CN5
3. Packing List
1 FB2414x all-in-one PC/104 CPU board.
1 VGA (CRT interface) adapter cable.
1 44-pin hard disk drive interface cable. (Optional)
2 serial port adapter cables.
1 PS/2 keyboard and mouse port adapter cable.
1 10-pin LAN adapter cable with FB4605A transfer board.
1 compact disc includes software utilities and manual.
4. Features
*
On-board 800 MHz DMP Vortex CPU, fanless operation.
*
On-board 128MB DDR2 RAM.
*
One 10/100 base-TX Ethernet port.
*
Provides VGA and TTL/LVDS LCD (optional) with up to 4MB memory.
*
2 RS-232, 2 USB ports, 1 CF socket, and 1 PCI IDE interface.
*
PS/2 compatible keyboard and mouse interface.
*
Provides header for external speaker and hard disk access LED.
*
Programmable watchdog timer and Flash BIOS with easy upgrade utility.
*
Power requires +5V only, 3A maximum.
*
PC/104 form factor, 90.2 mm x 95.9 mm (3.55" x 3.775")
5. Connectors and Jumpers List
Name
Function
CN1
44-pin IDE Connector (44-pin IDC)
CN2* SATA Connector (optional)
CN3
COM1 Connector (10-pin IDC)
CN4
COM2 Connector (10-pin IDC)
CN5
TTL I/O Connector (5-pin JST)
CN6
Power Connector (4-pin)
CN7
VGA Connector (10-pin IDC)
CN8* TTL LCD Connector (40-pin DF-13)
CN9* LVDS Connector (30-pin DF-13)
CN10* LCD Power Connector (5-pin JST)
CN11* LPT Connector (26-pin IDC)
CN12* Floppy Connector (20-pin IDC)
CF1
CompactFlash Socket
Note: Connectors with * mark are optional items.
6. Connectors, Headers and Their Relative Jumpers
A. Reset Header (J5)
J5 is a 2-pin header for connecting to system reset bottom. Close these 2 pins to hardware reset
FB2414 and restart system booting.
Page 1/3
Name
Function
J1
USB #1 & #2 Connector (J2*5)
J2
Reserved Header
J3
External Speaker Header (J1*2)
J4
KB/MS Connector (6-pin JST)
J5
Reset Header (J1*2)
J6
LAN Connector (10-pin JST)
JP1
CF Master/Slave Select (J1*3)
JP2
External Hard Disk LED Header (J1*2)
JP3/JP4 COM2 RS-232/485 Select (J3*3)
JP5
RS-485 Terminator Select (J1*3)
BUS1
Stack-Through PC/104 Connector
LED1
On-board PW/WD LED (Green)
SW1*
Panel Rype Select Switch (Optional)
