Instruction Sheet

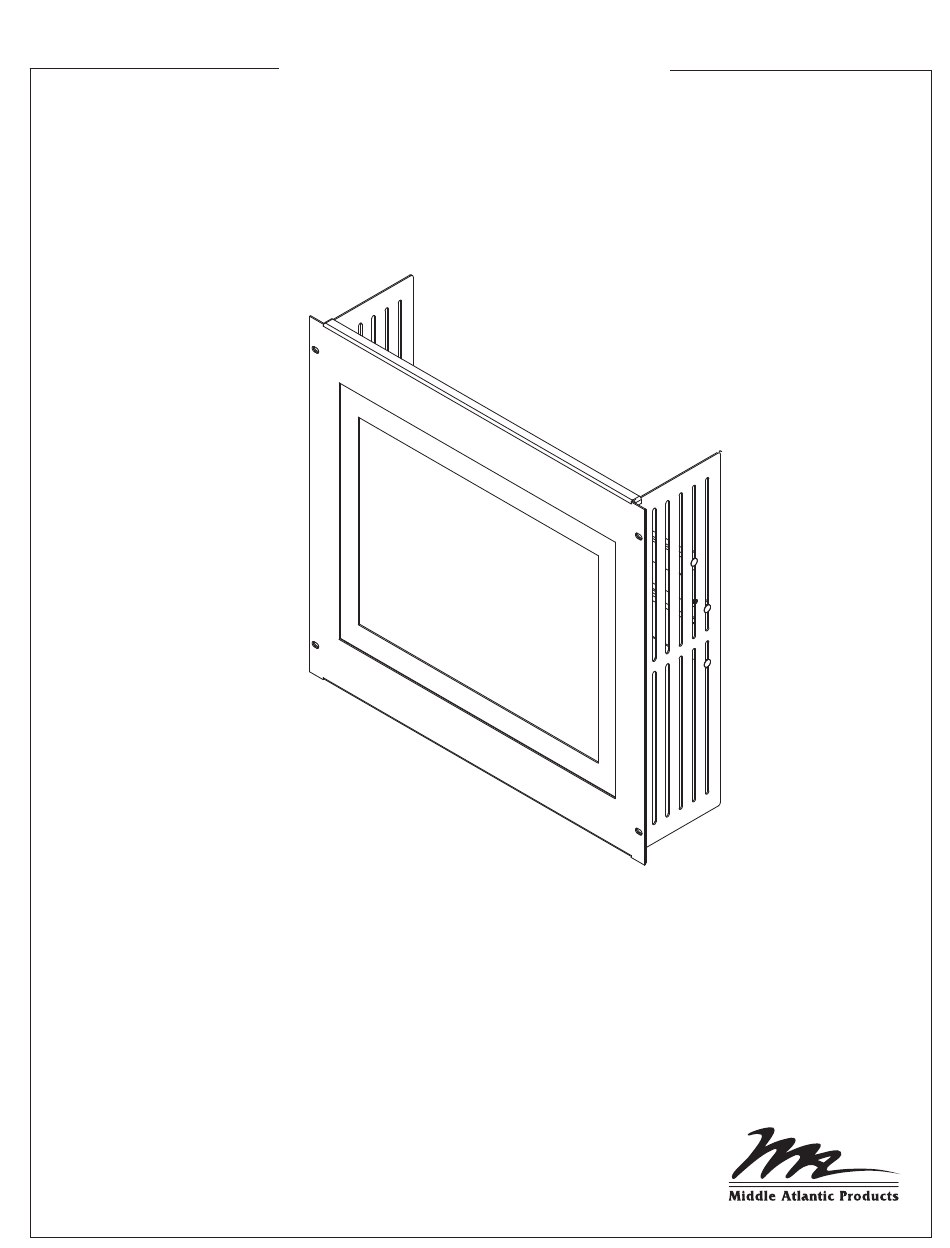

RSH SERIES

Custom LCD Mount

THANK YOU

Thank you for purchasing the RSH Custom LCD Mount. Please read these instructions thoroughly

before installing / assembling this product.

PRODUCT FEATURES

- Accommodates most LCD screens

- Securely mounts an LCD monitor within the enclosure

- Clamping design captivates the monitor even when mounted into a

sloped surface

I-00064

Rev D

Need help?

Do you have a question about the RSH Series and is the answer not in the manual?

Page 1 Instruction Sheet RSH SERIES Custom LCD Mount THANK YOU Thank you for purchasing the RSH Custom LCD Mount. Please read these instructions thoroughly before installing / assembling this product. PRODUCT FEATURES - Accommodates most LCD screens - Securely mounts an LCD monitor within the enclosure...
Page 2 ASSEMBLY STEP 1 1) Place the monitor face-down. LCD MONITOR (face-down) 2) Determine which VESA bracket to use by placing STEP 2 bracket against back of monitor and matching hole spacing. VESA 75 VESA 100 STEP 3 3) Assemble the VESA bracket as shown using the supplied hardware.
Page 3 STEP 5 5) Place the faceplate face-down and slide the ears under the faceplate tabs as shown. FACEPLATE STEP 6 6) Place the monitor inside the mount. Make sure the LCD screen is positioned correctly and fits STUD within the cutout in the faceplate. Secure as shown FLANGE NUT using the supplied hardware.
Page 4 WARRANTY Middle Atlantic Products (the "Company") warrants the RSH Custom LCD Mount Series to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product. The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and...
