THANK YOU
Thank you for purchasing RSH Series Custom Rackshelf, 1 Space. Please read these instructions
thoroughly before installing or assembling this product.
PRODUCT FEATURES
• Two small device mounting pattern locations on the shelf bottom.
• Interchangeable face-after faceplate design.
• Toolless assembly using Shovel Lance Hook technology (patented).
Instruction Sheet
RSH Series

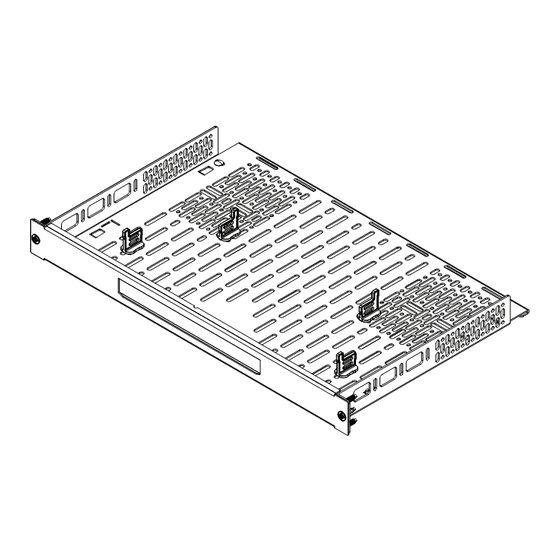

Custom Rackshelf, 1 Space
I-00777
Rev A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Middle Atlantic Products RSHSUB-1S
Summary of Contents for Middle Atlantic Products RSHSUB-1S
- Page 1 Instruction Sheet RSH Series Custom Rackshelf, 1 Space THANK YOU Thank you for purchasing RSH Series Custom Rackshelf, 1 Space. Please read these instructions thoroughly before installing or assembling this product. PRODUCT FEATURES • Two small device mounting pattern locations on the shelf bottom. •...
- Page 2 National Electrical Code or codes administered by local authorities. All electrical products may present a possible shock or fire hazard if improperly installed or used. Middle Atlantic Products, Inc. electrical products may bear the mark of a Nationally Recognized Testing Laboratory (NRTL) and should be installed in confor- mance with current local and/or the National Electrical Code.
- Page 3 SUPPLIED COMPONENTS AND HARDWARE (4x) Shelf Bottom Faceplate Plastic Rivet Rack Ears (Left and Right) NOTE: Available in 8” or 11½” (pictured) depths. (4x) 10-32 Cage Nut (4x) Mounting Screw NOTE: Cage nuts are (4x) included for installations Stop Bracket using Middle Atlantic’s Forward rackrail.
- Page 4 ASSEMBLING THE RACK EARS 1. With the Shovel Lance hooks on the underside of the shelf bottom (A) pointing downward, place rectangular openings on the flange of the left ear (B) over the hooks as shown. (FIGURE A) NOTE: Find the left ear and left side of the shelf bottom by matching the "L" punched on both components.
- Page 5 ASSEMBLING THE RACK EARS (CONTINUED) 4. Insert a plastic rivet (C) through the shelf holes in each corner of the shelf bottom (A) and into the ear (B) as shown. (FIGURE C) (Left Ear) NOTE: Two small device mounting pattern locations on the shelf bottom (A). (Right Ear) FIGURE C NOTE: For wide components where rivets (C) may...
- Page 6 INSTALLING THE STOP BRACKETS 1. Put the faceplate (D) against the front of the rackshelf as a guide. (FIGURE D) NOTE: Faceplate cutouts vary based on your order. A sample center cutout is shown on the faceplate used in these instructions. This same stop bracket installation procedure applies to single or multiple component setups.
- Page 7 MOUNTING TO RACKRAIL 1. Set aside your faceplate (D) and component from the rackshelf. 2. Use (4x) mounting screws (F) through the ears (B) and into the rackrail to mount the rackshelf to your desired location in the enclosure as shown. (FIGURE F) Rackrail FIGURE F NOTE:...
- Page 8 Factory Distribution United States: New Jersey, California, Illinois - Canada: Ontario - The Netherlands: Weert At Middle Atlantic Products we are always listening. Your comments are welcome. Middle Atlantic Products is an ISO 9001 and ISO 14001 Registered Company. Page 8...
