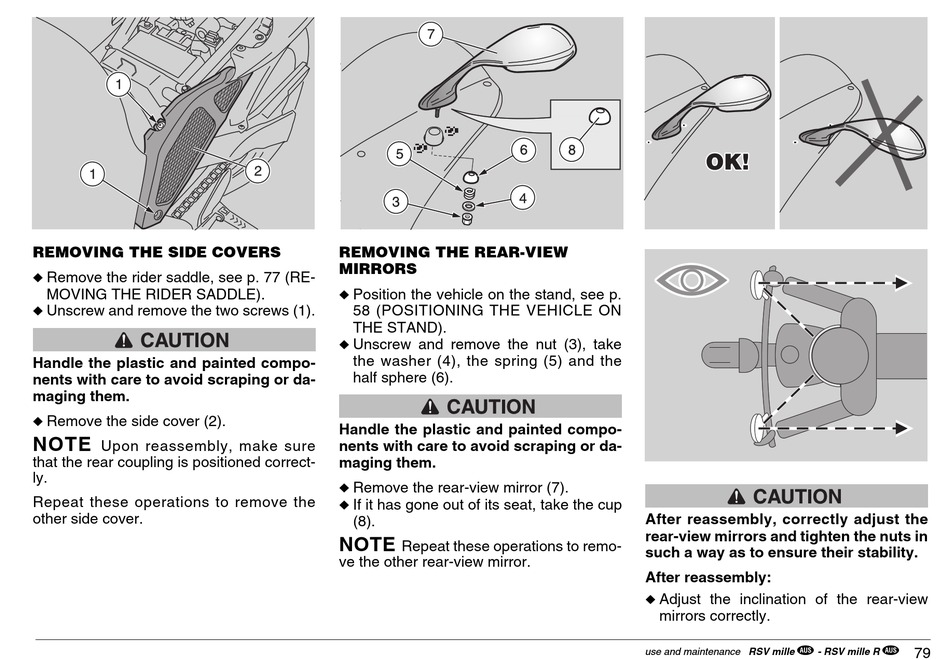

REMOVING THE SIDE COVERS
◆
Remove the rider saddle, see p. 77 (RE-
MOVING THE RIDER SADDLE).
◆
Unscrew and remove the two screws (1).
Handle the plastic and painted compo-
nents with care to avoid scraping or da-
maging them.
◆
Remove the side cover (2).
NOTE
Upon reassembly, make sure
that the rear coupling is positioned correct-
ly.
Repeat these operations to remove the
other side cover.
REMOVING THE REAR-VIEW
MIRRORS
◆
Position the vehicle on the stand, see p.
58 (POSITIONING THE VEHICLE ON
THE STAND).
◆
Unscrew and remove the nut (3), take
the washer (4), the spring (5) and the
half sphere (6).
Handle the plastic and painted compo-
nents with care to avoid scraping or da-
maging them.
◆
Remove the rear-view mirror (7).
◆
If it has gone out of its seat, take the cup
(8).
NOTE
Repeat these operations to remo-
ve the other rear-view mirror.
After reassembly, correctly adjust the
rear-view mirrors and tighten the nuts in
such a way as to ensure their stability.
After reassembly:
◆
Adjust the inclination of the rear-view
mirrors correctly.
!
use and maintenance RSV mille
- RSV mille R
!
79
