State of charge recovery for an Enphase Energy System
CT
CT

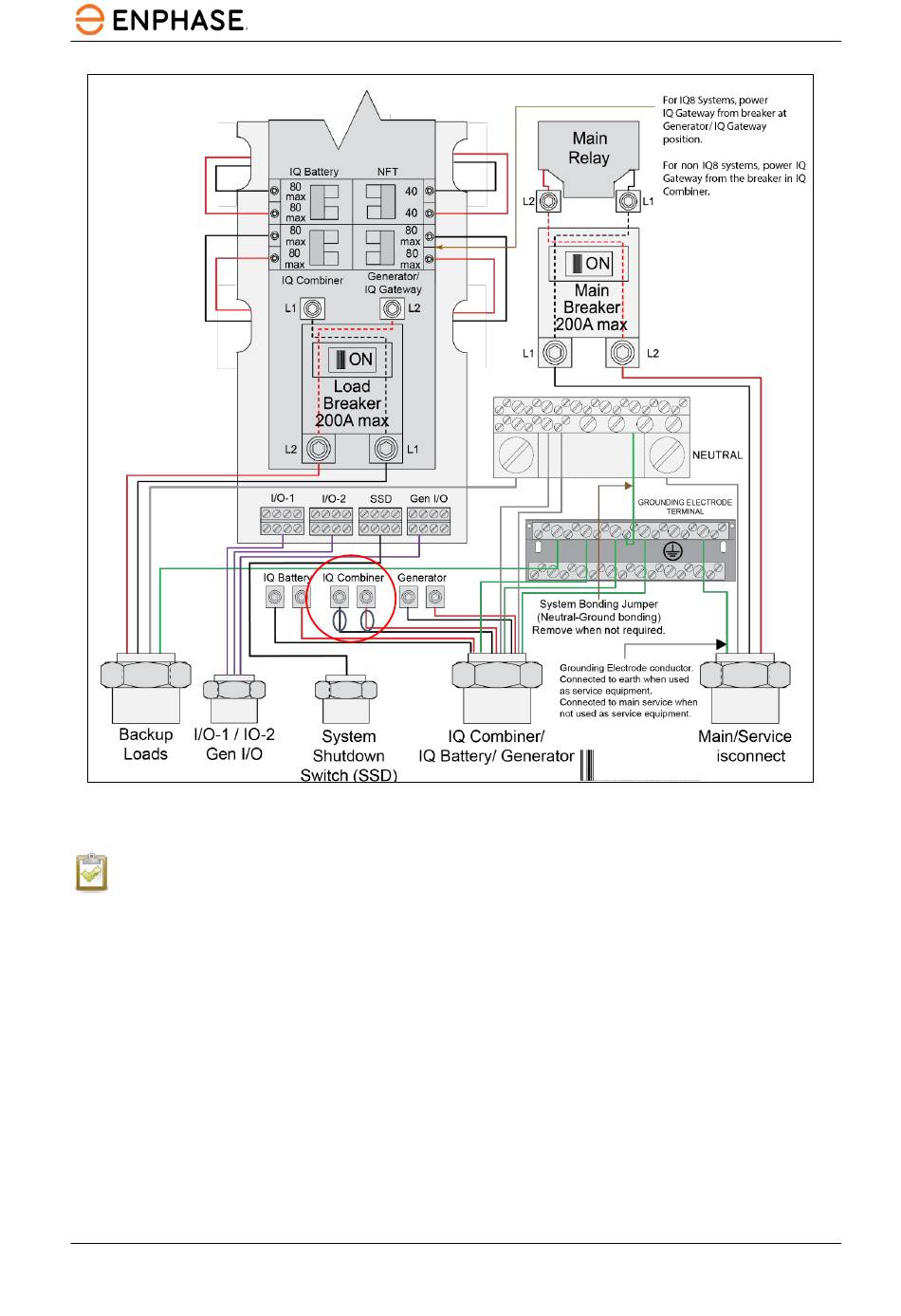

Figure 3: Wiring diagram for System Controller 2 and IQ System Controller 3G, SKUs EP200G101-M240US01/ EP200G-SC2-
RSD-KIT/EP200G-SC2-RSD-BRK-KIT and SC200G111C240US01
NOTE: For systems with non-IQ8 Microinverters, power on the IQ Gateway using a breaker in
the IQ Combiner; disconnecting the combiner lugs will switch off the IQ Gateway. In this
case, connect the IQ Gateway and generator in parallel using Polaris multitap lugs for
simultaneous connection.
