State of charge recovery for an Enphase Energy System
CT
CT

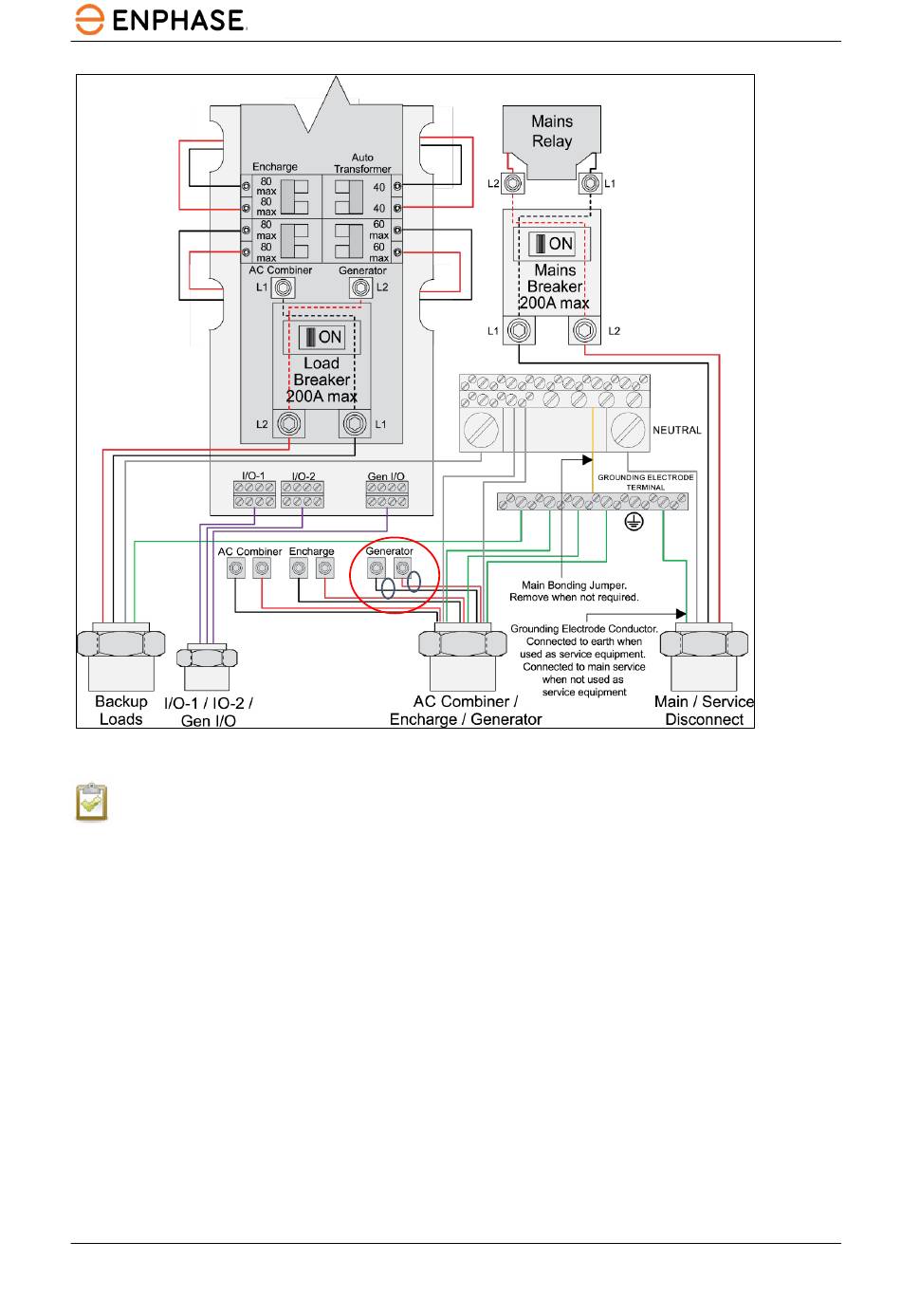

Figure 7: Wiring diagram for System Controller 1, SKUs EP200G101-M240US00
NOTE: System Controller 1, EP200G101-M240US00, is only applicable for systems with non-
IQ8 Microinverters. Power on the IQ Gateway using a breaker in the IQ Combiner;
disconnecting the combiner lugs will switch off the IQ Gateway. In this case, the IQ Gateway
and generator should be connected in parallel, using Polaris multitap lugs to connect both
simultaneously.
17
© 2024 Enphase Energy Inc. All rights reserved.
June 2024
TEB-00084-2.0
