Q U I C K I N S T A L L G U I D E
Installing Hold Down Kit in the Enphase
IQ System Controller
To install Hold Down kit for Eaton BR type circuit breakers in the Enphase IQ System Controller, read and follow all warnings and instructions in this guide. If
you do not fully understand any of the concepts, terminology, or hazards outlined in these instructions, refer installation to a qualified electrician or installer.
These instructions are not meant to be a complete explanation of a renewable energy system. All installations must comply with national and local electrical
codes. Professional installation is recommended.
NOTE: This hold down kit is only compatible with IQ System Controller which has a 200A load center. It is NOT compatible with Combiner that has a 125A
DANGER: Risk of electric shock. Always de-energize the IQ System Controller from all sources present including the utility grid,
Follow the below steps to secure the Eaton BR type circuit breakers with the Hold down kit:
A)
Turn off power to the IQ System Controller smart switch before installing this kit.
B)

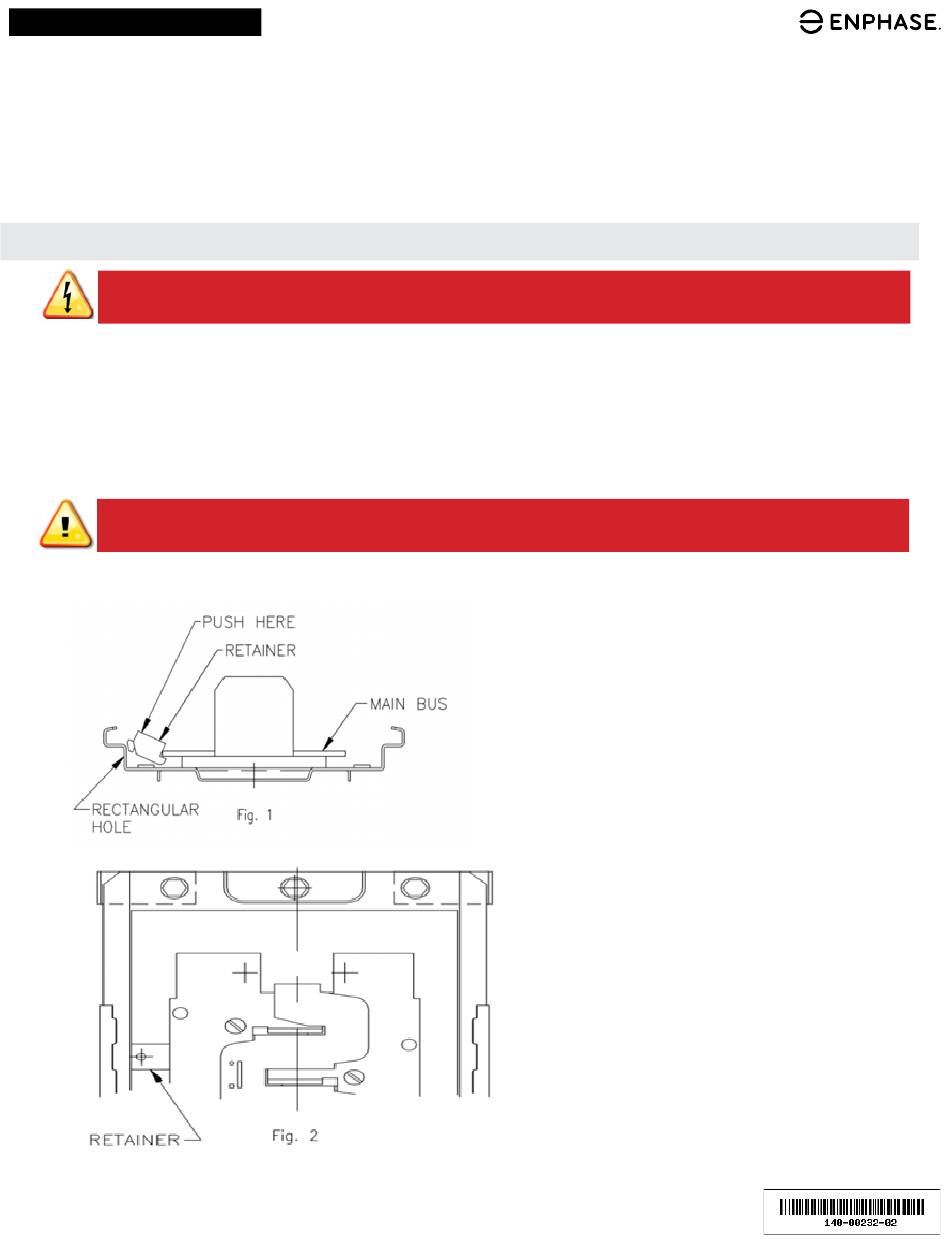

Refer to Figure 1 and locate retainer over rectangular hole in interior backpan and outside of main bus (Locate at upper most bus stab location as
shown in Figure 2).
C)
Snap-in end of retainer at interior backpan by pushing downward. The retainer should fit into the available space in the backpan with part of the
plastic in the rectangular hole and the other side of the retainer under the busbar.
D)
Install the circuit breaker onto bus.
E)
Assemble #5-20 screw into hole in breaker. Thread into retainer and tighten. Torque screw to 13 lb-in (1.5Nm).
© 2021 Enphase Energy. All rights reserved. Enphase, the Enphase logo, IQ System Controller, IQ Battery, IQ Gateway, IQ combiner, IQ microinverter,
Installer Toolkit, Enphase App and other trademarks or service names are the trademarks of Enphase Energy, Inc. Data subject to change. 10-22-2021
PV, storage and generator (if present) before beginning the following procedure.
WARNING: Do not scratch, nick, bend, or otherwise damage bus.
