3 Design

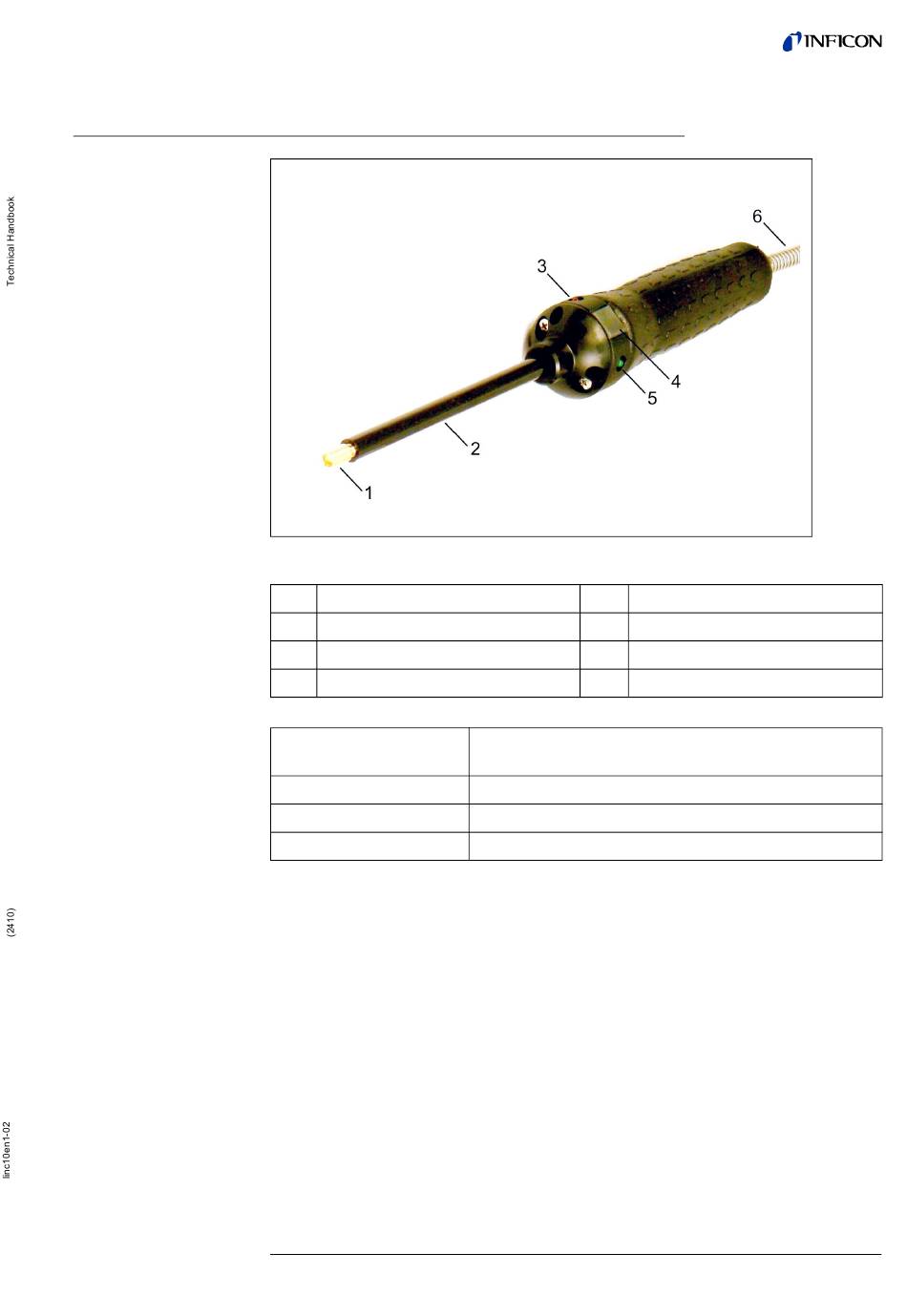

Fig. 2 Sniffer line SL200
Pos. Description
1 Capillary filter
2 Sniffer tip, 120 mm length
3 Indicator „leak" red
Operating-/Display
Element
LED red
LED green
Key
The function of the key and the meaning of the display is explained in the Technical
Handbook of the leak detector.
Pos. Description
4 Key
5 Indicator „ready" green
6 Sniffer line
Function of the leak detector
Exceeded threshold of leak rate of Trigger 1
Fallen unter threshold of leak rate of Trigger 1
ZERO on / off
