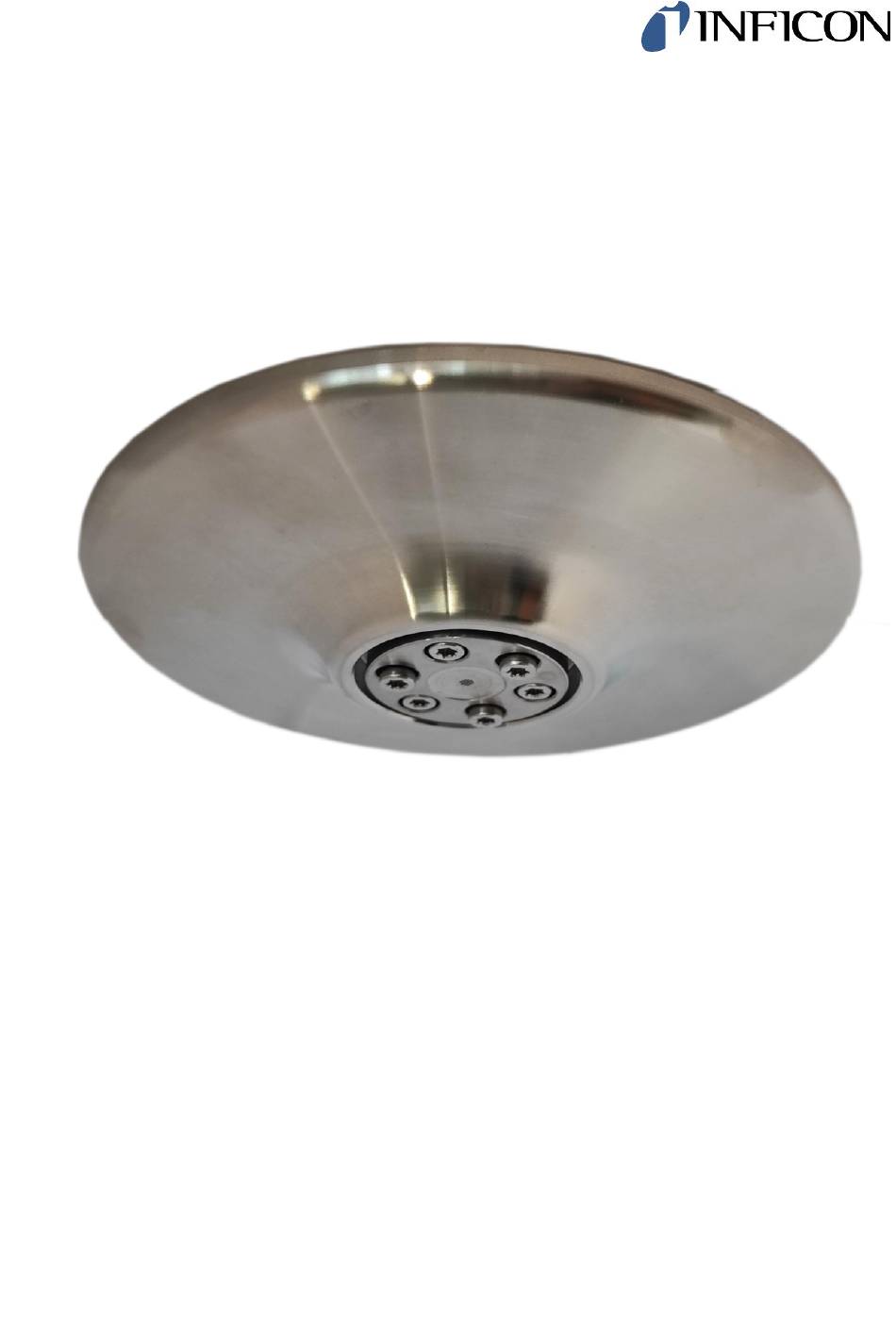

- Page 1 Translation of the original operating instructions E-Check Calibration leak for ELT3000 Catalog No. 600-105 From software version lime10en1-06-(2211)
- Page 2 INFICON GmbH Bonner Straße 498 50968 Cologne, Germany...
-
Page 3: Table Of Contents
INFICON Table of contents Table of contents 1 About this manual ............................ 4 1.1 Warnings .............................. 4 1.2 Target groups............................ 4 2 Safety................................ 5 2.1 Intended use ............................ 5 2.2 Duties of the user ............................. 6 2.3 Requirements for the user........................ 6 3 Scope of delivery, transport, storage...................... -
Page 4: About This Manual
1 | About this manual INFICON 1 About this manual This document applies to the calibration leak indicated on the title page. Product names may occur in the document, which are added for identification purposes only and belong to the respective owner of the rights. -
Page 5: Safety
INFICON Safety | 2 2 Safety 2.1 Intended use • Only use the calibration leak as intended, as described in the instruction manual, to avoid hazards due to misuse. The calibration leak is used to calibrate the battery leak detector. This usually takes place once a day. -
Page 6: Duties Of The User
2 | Safety INFICON 2.2 Duties of the user • Read, observe, and follow the information in this instruction manual and in the work instructions provided by the owner. This concerns in particular the safety and warning instructions. • Always observe the complete operating instructions for all work. -
Page 7: Scope Of Delivery, Transport, Storage
INFICON Scope of delivery, transport, storage | 3 3 Scope of delivery, transport, storage Scope of delivery Item Quantity E-Check Instruction manual Calibrated Leak Certificate Safety data sheet Return material Transport WARNING Risk of explosion due to leaked solvent For transport, the calibration leak is wrapped in a fleece and sealed in foil packages. If... - Page 8 3 | Scope of delivery, transport, storage INFICON Storage Damage caused by improper storage ► Remove the calibration leak from the packaging and store the calibration leak for at least 24 hours with the opening/flange facing downwards before use. ► Store the calibrated leak in a well-ventilated place so that the print on the top is always legible.
-
Page 9: Description
WARNING Risk of explosion due to escaping solvent Use the calibration leak only in a suitable INFICON ELT3000 battery leak tester. If the calibration leak is used to calibrate equipment with internal ignition sources (e.g. valves, electric motors, Pirani vacuum gauges, etc.), an ignition source may cause an explosion. - Page 10 4 | Description INFICON CAUTION Risk of injury through inhalation of solvent vapors Inhalation of solvent vapors from the calibration leak may cause nausea and intoxication up to unconsciousness and respiratory arrest. ► Avoid inhalation of solvent vapors. ► Do not use the solvent to become intoxicated.
- Page 11 Nameplate Fig. 2: View from below Position Name E-check (view from the bottom) Flange with leakage element Support surface of the E-Check in the test chamber The different screw height prevent the closing of the outlet opening. E-Check_Operating-instructions-lime10en1-06-(2211) 11 / 18...
-
Page 12: Function
The central flange contains the diaphragm and is sealingly connected to the housing by means of a copper ring. Note that several measuring cycles are necessary until the actual leakage rate can be determined. Refilling and recertification is only possible through INFICON, see "Maintenance [} 13]". 4.2 Technical data 4.2.1 Mechanical data... -
Page 13: Maintenance
INFICON Maintenance | 5 5 Maintenance WARNING Danger from improper filling. ► The calibration leak may only be refilled by INFICON customer service. For refilling and recertification, contact INFICON customer service. E-Check_Operating-instructions-lime10en1-06-(2211) 13 / 18... -
Page 14: Decommissioning
INFICON 6 Decommissioning The owner can dispose of the device or it can be sent to INFICON. The device consists of materials that can be recycled. This option should be exercised to prevent waste and also to protect the environment. - Page 15 INFICON Decommissioning | 6 Packing the calibration leak Avoidance of damage, bodily injury and environmental damage ► Wrap the calibration leak in the fleece, place the calibration leak with fleece in the first bag and seal it. Then place it in the second bag and seal this bag as well.
-
Page 16: Declaration Of Contamination
6 | Decommissioning INFICON 6.2 Declaration of Contamination 16 / 18 E-Check_Operating-instructions-lime10en1-06-(2211)
