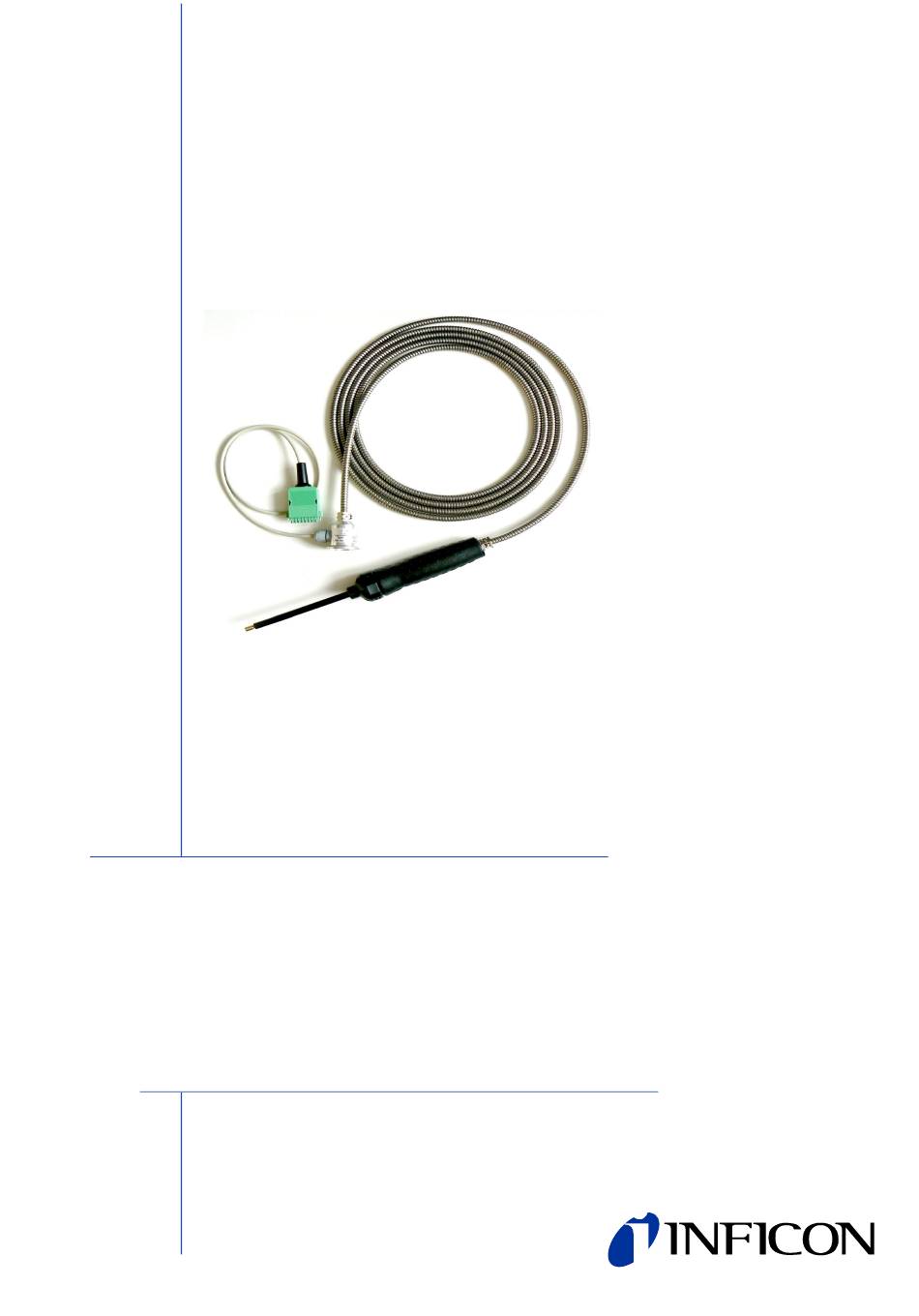

Sniffer Line SL200
for UL1000/UL1000Fab, UL5000, Modul1000, UL3000/6000:
Catalog-No. 14005 (4 m), Catalog-No. 14006 (15 m)
Cable extension for UL3000/6000 Fab Series: Catalog-No. 551-205
Cable extension for UL3000/6000 Fab Series and SL200 (4 m)
as a set: Catalog-No. 551-210
H A N D B O O K
Advertisement
Related Manuals for Inficon SL200
Summary of Contents for Inficon SL200
- Page 1 Sniffer Line SL200 for UL1000/UL1000Fab, UL5000, Modul1000, UL3000/6000: Catalog-No. 14005 (4 m), Catalog-No. 14006 (15 m) Cable extension for UL3000/6000 Fab Series: Catalog-No. 551-205 Cable extension for UL3000/6000 Fab Series and SL200 (4 m) as a set: Catalog-No. 551-210...
- Page 2 The catalog number can be taken from the product name plate. We reserve the right to make technical changes without prior notice. Intended use The sniffer line SL200 is used for locating gas leaks on test objects in conjunction with the following leak detectors: UL1000 / UL1000Fab,...
- Page 3 Content Safety General safety instructions Liability and warranty Technical Data Design Connection Maintenance Replacing the felt discs or the capillary filter Checking / replacing the sinter filter Spare parts Options Returning the Product Disposal Declaration of Conformity Content...
- Page 4 Content...
- Page 5 Adhere to the relevant regulations and take the necessary precautions when handling contaminated parts. Communicate the saftey instructions to other users. Liability and warranty INFICON assumes no liability and the warranty becomes null and void if the custodian or third parties • disregard the information in this document •...
- Page 6 This sniffer line has an effective length of 4 meters from the KF25 flange to the hand probe. Pos. Description not shown Sniffer line SL200, length 15 m (Catalog-No. 14006) Cable extension for the connection to the leak detector UL3000/6000 Fab (Catalog-No. 551-205) Gas throughput ca.
- Page 7 Design Fig. 2 Sniffer line SL200 Pos. Description Pos. Description Capillary filter Sniffer tip, 120 mm length Indicator „ready“ green Indicator „leak“ red Sniffer line Operating-/Display Function of the leak detector Element LED red Exceeded threshold of leak rate of Trigger 1...
- Page 8 To avoid damage switch off the leak detector at the mains before mounting the sniffer line. • Connect the sniffer line SL200 with the flange KF25 to the inlet port of the leak detector. • Then connect the 8-pin plug of the sniffer line SL200 with the built-in plug "Option"...
- Page 9 Maintenance Sniffer probe clogged Clogging of the sniffer probe may be due to: • Clogging of capillary filter: refer to Chapter • Clogging of sinter filter: refer to Chapter Cloggin of sniffer probe capillary replace sniffer tip • Damage of sniffer tip replace sniffer tip •...
- Page 10 Replacing the felt discs or the capillary filter • Switch the leak detector off or disconnect the sniffer line. • Remove dirty felt discs by means of tweezers and replace them. • unscrew capillary filter and replace it. (If using the metallic version, do not forget the seal.) Checking / replacing the sinter filter •...
- Page 11 Spare parts Fig. 7 Description Order no. Capillary filter 200 035 01 Plastic standard version (5 pcs.) Felt discs for capillary filter (50 pcs.) 200 001 116 Fig. 8 Description Order no. Sinter filter, with seal; (5 pcs.) 200 035 00 Spare parts...
- Page 12 Options Fig. 9 Description Order no. Capillary filter 122 17 Metal version for rough duty, with seal (1 piece) Sniffer tip, rigid / flexible rigid flexible Cat.-No. Cat.-No. 120 mm, 1 piece 122 13 122 14 385 mm, 1 piece 123 15 122 16 Fig.
- Page 13 Returning the Product Caution Forwarding contaminated products. Contaminated devices could endanger the health. The contamination declaration serves to protect all persons who come into contact with the device. • Fill in the declaration of contamination completely. Products not accompanied by a completed declaration of contamination are returned to the sender.
- Page 14 Disposal Caution Contaminated parts can be detrimental to health. Before you begin to work, find out whether any parts are contaminated. Adhere to the relevant regulations and take the necessary precautions when hand- ling contaminated parts. Separating the components After disassembling the product, separate its components according to the following criteria: Components exposed to process gases Components which have been exposed to radioactive, toxic, caustic, or microbiolo-...
- Page 15 Declaration of Contamination The service, repair, and/or disposal of vacuum equipment and components will only be carried out if a correctly completed declaration has been submitted. Non-completion will result in delay. This declaration may only be completed (in block letters) and signed by authorized and qualified staff. Description of product Reason for return Type...
- Page 16 Declaration of Conformity Declaration of Conformity...
- Page 17 Declaration of Conformity...
- Page 18 Declaration of Conformity...
