Page 1 of 26
LP0329

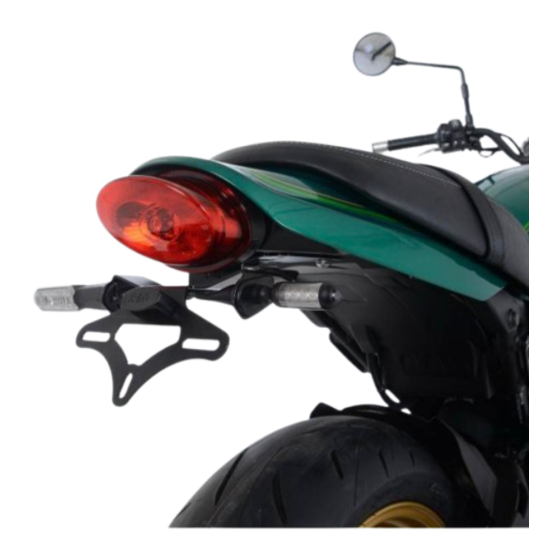

FITTING INSTRUCTIONS FOR LP0329 LICENCE PLATE BRACKET
KAWASAKI Z650RS 2022-
This kit contains the items pictured and labelled over page.
Some parts may be shown for clarity of instructions only.
Do not proceed until you are sure all parts are present.
Please read all instructions before proceeding.
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
Please note that the way the kit is packed does not necessarily represent the way of
mounting to the bike.
In the event of rubber washers being used to hold components onto bolts,
these rubber washers can be thrown away.
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM
WWW.RG-RACING.COM
R&G
Unit
, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
1
Tel: +44 (0)
420 89007 Fax: +44 (0)
420 87301 www.rg-racing.com Email: info@rg-racing.com
1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for R&G LP0329
Summary of Contents for R&G LP0329
- Page 1 Page 1 of 26 LP0329 FITTING INSTRUCTIONS FOR LP0329 LICENCE PLATE BRACKET KAWASAKI Z650RS 2022- This kit contains the items pictured and labelled over page. Some parts may be shown for clarity of instructions only. Do not proceed until you are sure all parts are present.
- Page 2 Page 2 of 26 LP0329 TOOLS REQUIRED GENERAL TORQUE SETTINGS • Set metric Allen keys. M4 BOLT = 8Nm Socket set to include 8, 10 ,12 • M5 BOLT = 12Nm and 13mm A/F socket and wrench. M6 BOLT = 15Nm Lose nose pliers •...
- Page 3 Page 3 of 26 LP0329 ASSEMBLY DIAGRAM *Indicators not included in this kit. R&G Unit , Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0) 420 89007 Fax: +44 (0) 420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 4 Page 4 of 26 LP0329 FITTING PICTURES Picture 2 Picture 1 Picture 3 Picture 4 R&G Unit , Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0) 420 89007 Fax: +44 (0) 420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 5 Page 5 of 26 LP0329 Picture 5 Picture 6 Picture 7 Picture 8 Picture 9 Picture 10 Picture 11 Picture 12 R&G Unit , Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0) 420 89007 Fax: +44 (0)
- Page 6 Page 6 of 26 LP0329 Picture 13 Picture 14 Picture 15 Picture 16 R&G Unit , Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0) 420 89007 Fax: +44 (0) 420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 7 Page 7 of 26 LP0329 FITTING INSTRUCTIONS Removal of OEM license plate bracket Begin by removing the seat using the key slot which has a rubber cover as shown in Picture 1. • Remove the rubber cable sleeve as shown in Picture 2 to expose the indicator and license plate •...
- Page 8 Page 8 of 26 LP0329 Re-connect your OEM indicators to the correct connectors and test your indicators are • illuminating before riding. Tidy the cables by using the same method as the license plate illuminator (item 3) with the provided cable ties (item 11).
- Page 9 Page 9 of 26 LP0329 to original vendor. Goods must be in re-sellable condition, in the opinion of R&G Racing. All returns are subject to a 25% restocking and handling fee (25% of the gross value exc. P&P – at the prevailing price at time of purchase).
- Page 10 Page 10 of 26 LP0329 NOTICE DE MONTAGE POUR LP0329 SUPPORT DE PLAQUE KAWASAKI Z650RS 2022- E KIT CONTIENT LES ARTICLES ILLUSTRES ET ETIQUETES SUR LA PAGE ERTAINES PARTIES PEUVENT ETRE PRESENTES UNIQUEMENT POUR LA CLARTE DES INSTRUCTIONS E PAS PROCEDER AU MONTAGE TANT QUE VOUS N...
- Page 11 Page 11 of 26 LP0329 OUTILS REQUIS VALEURS DE SERRAGE • Clés Allen. M4 BOULON = 8Nm Clé à cliquet + douilles 8, 10 ,12 • M5 BOULON = et 13mm. Pince à bec large • M6 BOULON = Tournevis cruciforme .
- Page 12 Page 12 of 26 LP0329 SCHÉMA D’ENSEMBLE *Indicators not included in this kit. R&G Unit , Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0) 420 89007 Fax: +44 (0) 420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 13 Page 13 of 26 LP0329 PHOTOS DE MONTAGE Photo 2 Photo 1 Photo 3 Photo 4 Photo 5 Photo 6 R&G Unit , Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0) 420 89007 Fax: +44 (0) 420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 14 Page 14 of 26 LP0329 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 R&G Unit , Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0) 420 89007 Fax: +44 (0) 420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 15 Page 15 of 26 LP0329 Photo 13 Photo 14 Photo 15 Photo 16 R&G Unit , Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0) 420 89007 Fax: +44 (0) 420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 16 Page 16 of 26 LP0329 NOTICE DE MONTAGE Enlever le support de plaque d’origine Commencez par retirer le siège à l'aide de la fente de clé qui a un couvercle en caoutchouc • comme indiqué sur la photo 1. Retirez le manchon de câble en caoutchouc comme indiqué sur la photo 2 pour exposer les •...
- Page 17 Page 17 of 26 LP0329 Poussez simplement vos clignotants d’origine dans les supports de tige de clignotant attribués • sur les supports R&G illustrés sur la photo 14 et réassemblez l'ensemble du clignotant comme décrit ci-dessus mais dans l'ordre inverse.
- Page 18 Page 18 of 26 LP0329 loss and otherwise its liability shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned. These terms do not affect the Buyer’s statutory rights. R&G RACING RETURNS POLICY (NON-FAULTY GOODS) Returns must be pre-authorised (if not pre-authorised the return will be rejected).
- Page 19 Page 19 of 26 LP0329 MONTAGEANLEITUNG FÜR LP0329 KENNZEICHENHALTER KAWASAKI Z650RS 2022- Alle Kit-Teile sind auf den nachfolgenden Seiten abgebildet und gekennzeichnet. Die abgebildeten Teile dienen lediglich zur Erklärung. Überprüfen Sie zuerst, dass alle Teile vorhanden sind. Lesen Sie die Montageanleitung komplett durch, bevor Sie anfangen.
- Page 20 Page 20 of 26 LP0329 SIE BENÖTIGEN FOLGENDES WEKRZEUG ALLGEM. ANZUGSDREHMOMENT • Satz Inbusschlüssel M4 SCHRAUBE = 8Nm Steckschlüsselsatz inkl. 8, 10 ,12 • M5 SCHRAUBE = 12Nm und 13mm A/F Spitzzange • M6 SCHRAUBE = 15Nm Kreuzschlitzschraubenzieher • M8 SCHRAUBE = 20Nm Kl.
- Page 21 Page 21 of 26 LP0329 ZEICHNUNG ZUSAMMENBAU *Indicators not included in this kit. R&G Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 22 Page 22 of 26 LP0329 MONTAGE - ABBILDUNGEN Abbildung 1 Abbildung 2 Abbildung 3 Abbildung 4 Abbildung 5 Abbildung 6 R&G Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 23 Page 23 of 26 LP0329 Abbildung 7 Abbildung 8 Abbildung 9 Abbildung 10 Abbildung 11 Abbildung 12 R&G Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 24 Page 24 of 26 LP0329 Abbildung 13 Abbildung 14 Abbildung 15 Abbildung 16 R&G Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 25 Page 25 of 26 LP0329 MONTAGEANLEITUNG Entfernung des original Kennzeichenhalters Zuerst entfernen Sie den Sitz (der Schlüssel wird hierfür benötigt) – siehe Abbildung 1. • Entfernen Sie die Kabelhülse aus Kunststoff wie in Abbildung 2 abgebildet, um die • Steckverbindungen für die Blinker und die Kennzeichenbeleuchtung freizulegen.
- Page 26 Page 26 of 26 LP0329 mit den Kabelbindern vom Kit (Artikel 11) ordentlich befestigen (wie zuvor bei der Kennzeichenbeleuchtung). Wenn Sie Miniblinker montieren: Montage der R&G Miniblinker (R&G Artikel: RG371=LED oder RG372 = Aero LED): • Sichern Sie die R&G Blinker mit den mitgelieferten Adaptern (Artikel 5) wie in der Zeichnung •...
