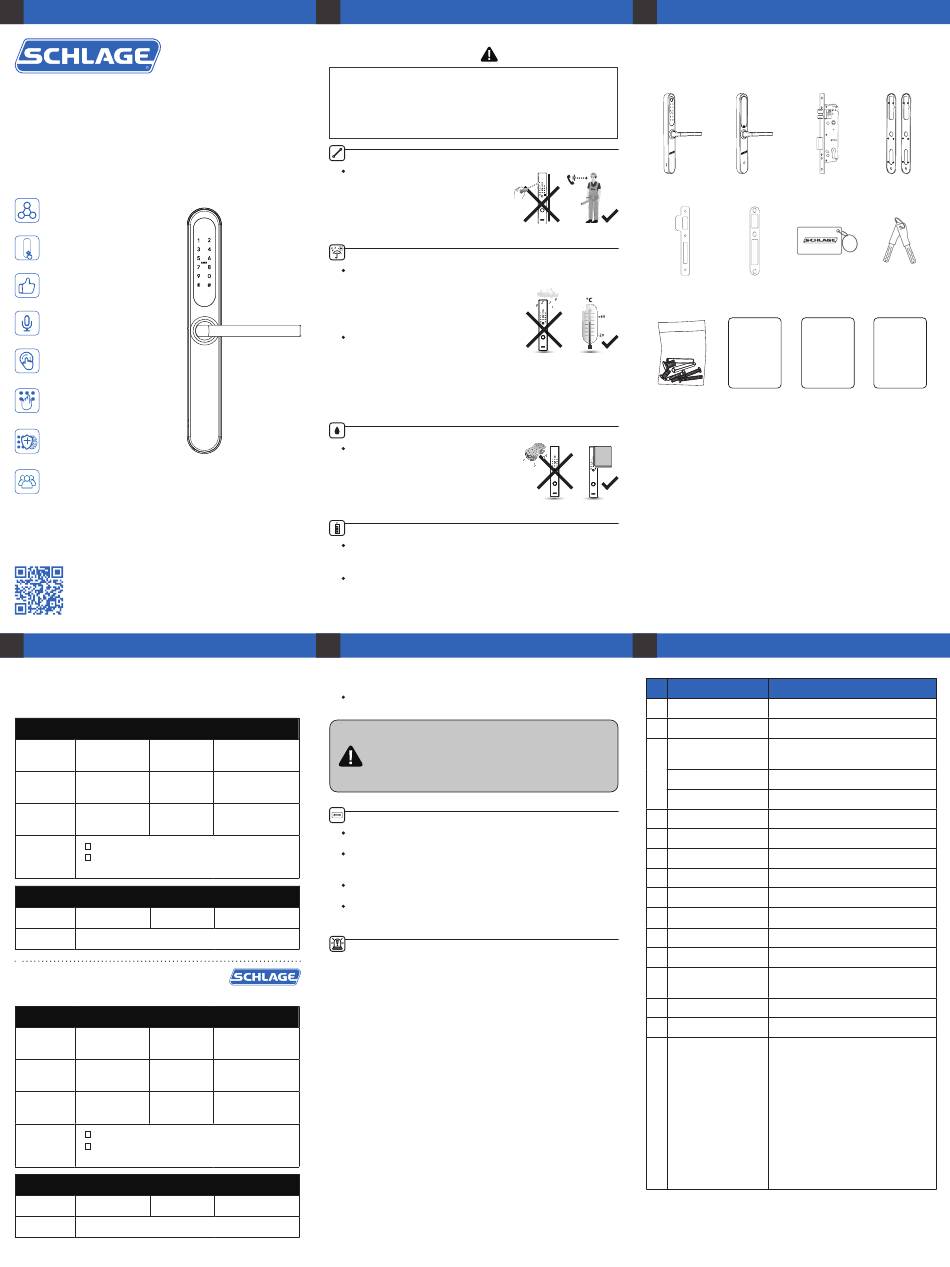

Allegion SCHLAGE S-710 User Manual

1
USER MANUAL
Product Features
Multiple credential
options
Auto relock function
Grade C mechanical
cylinder
Voice guide
Modern touchpad
Fake PIN code
High security mode
Intelligent user
management
Visit schlage-locks.asia
or scan the QR code for
more information.
2
WARRANTY
Warranty Card (Authorized Distributor's Copy)
Product Information
S/N Product
code
Purchased Purchased
Date location
Authorized Installation
Distributor Date
Installed by By distributor
Installation by yourself (warranty will be void
due to improper installation
Customer Information
Name Contact No.
Address
Warranty Card (Customer's Copy)
Product Information
S/N Product
code
Purchased Purchased
Date location
Authorized Installation
Distributor Date
Installed by By distributor
Installation by yourself (warranty will be void
due to improper installation
Customer Information
Name Contact No.
Address
3
PRECAUTIONS
• Please carefully read this manual prior to installing and using
your product. It is crucial to adhere to the instructions outlined
in this installation manual during the installation process.
• Please note that the warranty does not cover damages to the
product caused by users who fail to follow the instructions
provided in this installation manual.
Do not disassemble the unit by yourself
This product is a precision electronic
device. Do not attempt to disassem-
ble the unit by yourself as it can cause
electric shock or may damage the
product. If you need field reparation,
please contact our qualified service
personnel.
Working environment
Storage
Temperature: -20°C ~60°C
Relative humidity: 85%RH
(No condensation)
Do not expose the product to direct sun.
The storage period is within 1 year
Operating conditions
Temperature: -10°C ~55°C
Relative humidity: 85%RH
(No condensation)
Prior to installing the digital lock, please ensure that you are in a
suitable environment. It is important to avoid exposing the lock
to direct sunlight or placing it in high humidity environments to
prevent damage to the lock surface and body.
Cleaning of product
To clean the lock, please use only a
dry cloth. Avoid using water or any liq-
uid, as it may damage the electronic
circuitry of the lock. Additionally, it is
important to keep the lock away from
Schlage S-710
corrosive substances to prevent dam-
age or rusting of the product surface.
Digital Door Lock
Battery life of product
Battery lifecycle
4 X 1.5V AA size LR6 batteries can last for at least 1 year (assum-
ing 10 openings per day).
Low battery warning
When receive low battery notification, please replace the bat-
teries as soon as possible even though the lock could work for
another 50 times.
4
Out of power warning
Unlock your digital lock with mechanical back-up key. Replace the
batteries immediately after the door is opened.
Remove user access / Card loss
Delete fingerprint with respect to the assigned fingerprint serial
number.
If you have forgotten the serial number associated with a user's
fingerprint, it is recommended to delete all stored fingerprints
and re-register the fingerprint access for active users.
If a card is lost, it is important to delete the user card access
based on the associated card serial number of the lost card.
If you are unsure of the serial number, it is recommended to
delete access for all user cards and re-register them for active key
card holders.
Stop triggered alarm
If tampering is detected, the built-in alarm will be triggered,
resulting in a continuous ringing sound. To deactivate the alarm,
simply enter a valid user code into the lock. This will halt the
alarm from ringing.
In the event of an emergency, you can open the door using
a power bank. After opening the door, please wait for 2
seconds before disconnecting the power supply, allowing
the lock body to reset. To ensure normal operation, it is
advisable to replace the battery on the inner panel ahead
of time.
5
PRODUCT COMPOSITION &
COMPONENTS
Front assembly Back assembly Mortise lock
(1 no.) (1 no.) (1 no.)
Card / FOB
Strike plate Dustbox
(3 nos.)
(1 no.) (1 no.)
INSTALLATION
USER MANUAL
MANUAL
Pack of screws, User manual Installation manual
screw casing and (1 no.) (1 no.)
spindle (1 no.)
6
Name Product Specification
1 Front Assembly 39mm(W) / 310mm(H) / 23mm(D)
2 Back Assembly 39mm(W) / 310mm(H) / 23mm(D)
3 Mortise Lock (30mm 47mm(W) / 215mm(H) / 22mm(D)
Backset)
40mm Backset 53mm(W) / 173mm(H) / 22mm(D)
60mm Backset 85mm(W) / 173mm(H) / 22mm(D)
4 Gaskets 2 pieces
5 Strike plate 24mm(W) / 40mm(EW) / 198mm (H)
6 Card / FOB 3 pieces
7 Emergency Key 2 pieces
8 Spindle 2 pieces
9 Battery 4 X 1.5V AA size LR6 batteries
10 Screws 1 set
11 User Manual Main user manual
12 Door Preparation Use guide to make hole on the door
Template
13 Installation Manual Main installation manual
14 Installation Condition Door thickness 35~60mm
Working temperature: -15°C~55°C
15 High Temperature
Sensor working temperature (high):
Warning
60°C±5°C
If high temperature is detected that
may potentially sparks a fire, the alarm
will be triggered with a beeping sound
to notify user.
If the interior body is exposed to
direct sun for a long time and exceeds
the set temperature, a beep sound
will ring to notify the user. The high
temperature detection feature also
works with double locking function.
W: Width
EW: Extended Width
H: Height
D: Depth
Gaskets
(2 nos.)
Mechanical keys (2
nos.)
DOOR
PREPARATION
TEMPLATE
Door preparation
template
(1 no.)
