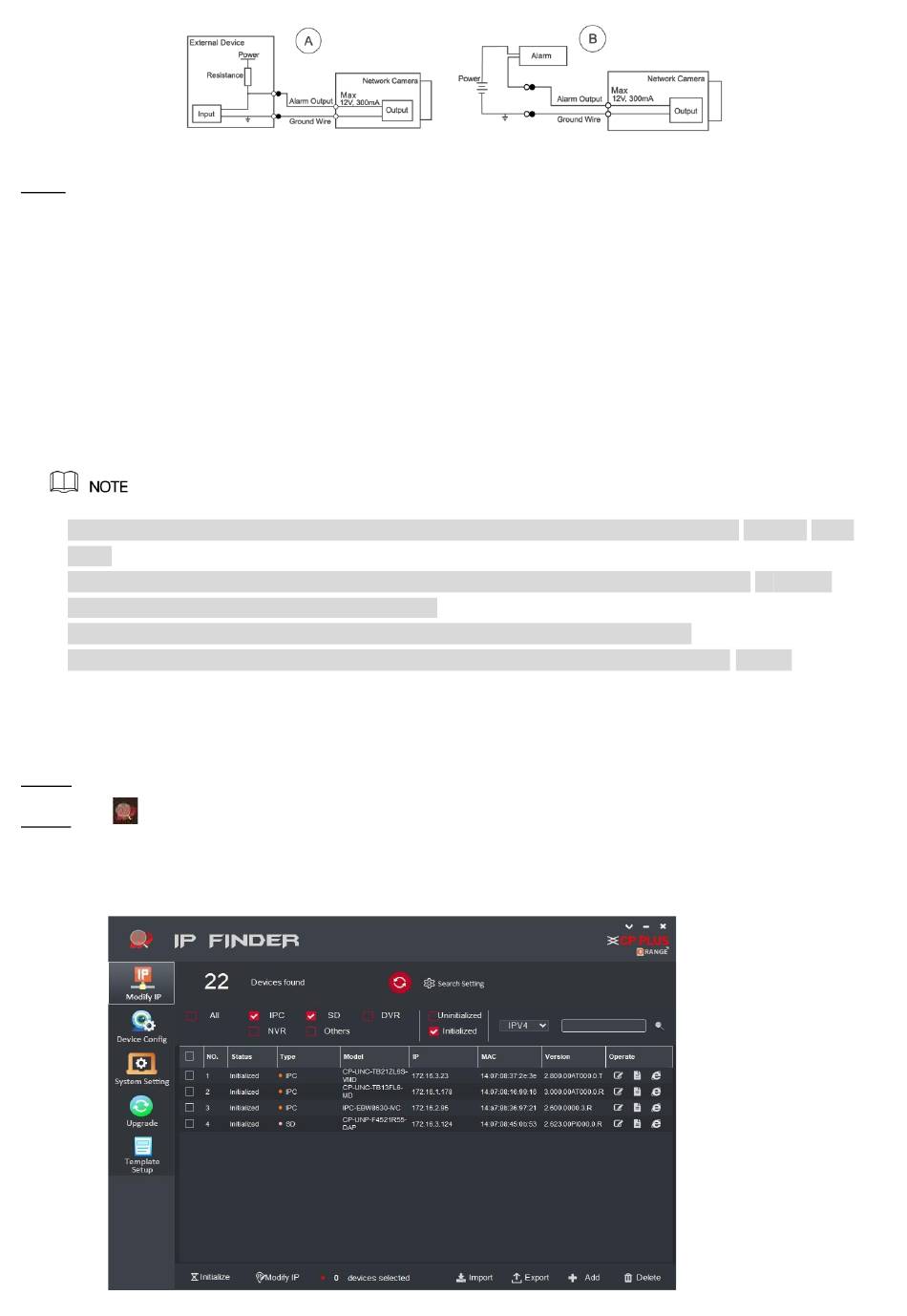

Step 3 Log in to web page, and then configure alarm input and alarm output in alarm settings.
● The alarm input on the web page is corresponding to the alarm input end of the I/O port. There will be high
level and low-level alarm signal generated by the alarm input device when alarm occurs. Set the input mode to
"NO" (default) if the alarm input signal is logic "0" and to "NC" if the alarm input signal is logic "1".
● The alarm output on the web page is corresponding to the alarm output end of the device, which is also the
alarm output end of the I/O port.
2.
Network Configuration
Device initialization and IP setting can be finished with the "IP Finder" or in web interface. For more
information, see the WEB operation manual.
•
Device initialization is available on select models, and it is required at first use and after device is being
reset.
•
Device initialization is available only when the IP addresses of the device (192.168.1.250 by default)
and the PC stays in the same network segment.
•
Planning useable network segment properly to connect the device to the network.
•
The following figures and interfaces are for reference only, and the actual product shall prevail.
2.1
2.1 Initializing Device
Step 1 Double-click "IP Finder.exe" to open the tool.
Step 2 Click
.
The Modify IP interface is displayed. See Figure 2-1.
Figure 2-1 Modify IP interface
