CP Plus EPK-HP10L1 Manual

Wifi hd pt camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

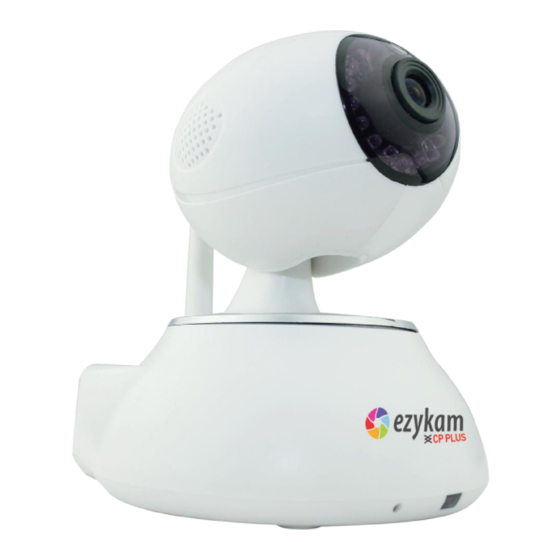

Wifi HD PT Camera
EPK-HP10L1 (HP10)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPK-HP10L1 and is the answer not in the manual?

Questions and answers

Related Manuals for CP Plus EPK-HP10L1

Summary of Contents for CP Plus EPK-HP10L1

  • Page 1 Wifi HD PT Camera EPK-HP10L1 (HP10)
  • Page 2 Instruction Manual...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION............................5 1.1. Features ............................6 1.2. Packing List ............................ 6 1.3. Product Views ..........................7 1.4. PC System Requirements ......................8 1.5. Hardware Installation ........................8 INSTALLATION AND SETTINGS ......................9 2.1. Network Connection ........................9 2.2. Browser Settings (For IE only) ..................... 10 2.3.
  • Page 4 4.8.1. Log ............................41 4.8.2. Import/Export Config ........................ 41 4.8.3. Auto Maintain ........................... 42 4.9. System ............................43 PLAYBACK for IE browser only ......................44 FREQUENTLY ASKED QUESTIONS ..................... 45 SPECIFICATIONS ..........................50 OBTAINING TECHNICAL SUPPORT ..................... 51...

  • Page 5: Introduction

    1. INTRODUCTION This user manual will show the details to set up your camera with your computer; If you are viewing with a Smartphone, please check Quick Start Guide, as it is very easy to set up. IMPORTANT NOTICE The various screens throughout this owner’s manual will look different depending on the browser you use.

  • Page 6: Features

    1.1. Features  Powerful high-speed video protocol processor.  High-sensitivity 1/4’’ CMOS sensor  Picture total 1000K pixels (1megapixel)  Supports Pan and Tilt (PT) control, Pan 320°, Tilt 120°  Optimized H.264 MJPEG video compression for transmission  Multi-level user management and passwords definition ...

  • Page 7: Product Views

    1.3. Product Views 1.3.1. Front View Wireless Antenna WI-FI Antenna (rotate to vertical position as shown above). Infrared LEDs with 10-15 meters night vision Infrared LEDs LENS Megapixel lens. Network Interface RJ-45/10-100 base T Power Port 5 Volt DC and 2Amp Network Light The green LED will be on when the network is connected, the yellow LED will blink when data is transferred...

  • Page 8: Pc System Requirements

    1.4. PC System Requirements System configuration requirements:  CPU: 2.06 GHZ or above.  Memory: 256M or above.  Network Card: 10M or above.  Display Card: 64M or above memory.  Recommended Operating system: Windows XP, Windows Vista, Windows 7. 1.5.

  • Page 9: Installation And Settings

    2. INSTALLATION AND SETTINGS System Requirement Operating System: Windows Vista / 7/ 8/ 10 Network Protocol: TCP/IP Network Structure: Applies to all network connections 10/100M LAN platform Browser: Internet Explorer 6.0 or above. Firefox, Google, Safari, or Chrome. 2.1. Network Connection Intranet and Extranet Connection Reference: Extranet means public IP (i.e.

  • Page 10: Browser Settings (For Ie Only)

    Internet IP camera 2.2. Browser Settings (For IE only) EzykamOCX will be downloaded automatically when you login to the IP Camera, but you might have to set the IE browser to enable the EzykamOCX to be downloaded automatically after signing in. Steps as below: 1.

  • Page 11: Upnp Service

    You can also click “Start” menu->“Internet Explorer”, and choose “Internet attributes”, or via “Control Panel” ->“Internet Explorer”, to access Security settings. NOTE: Make sure that your firewall or anti-virus software doesn’t block the software or ActiveX. If you couldn’t see live video, please close your firewall or anti-virus software, and try again 2.3.

  • Page 12: Ezykam Search Tool (For Ie Browser Only)

    1.1. Ezykam Search Tool (for IE browser only) Step 1: Use tool “Ezykam finder.exe” to find IP address of LAN. Step 2: Double click “Ezykam finder” on your desktop, the camera’s IP & MAC address will be displayed. If you want to search again, click “Search”. Step 3: Double-click the IP address of your camera to enter the login interface.

  • Page 13: Install The Ezykamocx (For Ie Only)

    2.4. Install the EzykamOCX (For IE only) Install the Ezykam for the first time login; you will get tips after enter user and password in login page. Download the OCX file, and then double click to install it automatically. After OCX installed fully, and then input the user and password to login the camera. 2.4.1.
  • Page 14 3. SOFTWARE OPERATION 3.1. Software operation for IE Browser Choose your desired language, input correct user name and password, and then click “Login” User name: admin Password: admin, : Choose languages here...
  • Page 15 3.2. Software Operation for Chrome, Firefox, Safari: Choose the suitable language, input correct user name and password, and then click “Login” User name: admin Password: admin Choose the login mode. Sever Push: For Firefox, Chrome, or Safari browser. VLC: If you use VLC, should download the VLC player first. During the VLC installation, you must enable Mozilla plug-in as the picture shows below:...

  • Page 16: Functions

    QuickTime: Choose QuickTime, login to the camera directly. If there is prompt for installing the QuickTime player, just download and install it. : Choose languages here Figure 2.3 3.3. Functions 3.3.1. Three main functions (For IE): : Click it, back to live video window from “Playback” or Setup”. : Click to query and playback the video files (Details see 5 Playback) ：Setting the camera’s parameters (Details see 4 Setup)
  • Page 17 : You will back to the login page.

  • Page 18: For Live Video (For Ie Browser)

    Two main functions (For Safari, Chrome, 3.3.2. Firefox) : Click it, back to live video window from “Playback” or “Setup” ：Setting the camera’s parameters (Details see 4 Setup) : You will back to the login page 3.4. For Live Video (for IE browser) 3.4.1.
  • Page 19 Record: Click to start record manually; the icon will change to green color. Record file will be saved in the PC to its appointed path as AVI format. Click it again, will stop record function. Audio: Click it to enable listen function, the icon will change to green color can hear the live audio from camera via PC if audio is ON.
  • Page 20 to monitor an outdoor environment (through a window). NOTE: The camera should only be used in a indoor environment Mirror and Flip Mirror: Select this checkbox to see a mirror image. Uncheck it to go back to normal. Flip: Select this checkbox to flip the image upside down. Uncheck it to go back to normal. NOTE: You can choose Mirror and Flip function if you set up the camera in a special position, upside down for example.
  • Page 21 Frequency: Including 50HZ, 60HZ, Outdoor. 50HZ/60HZ for the users who use 50HZ/60HZ frequency, outdoor for the users who want to use this camera to monitor an outdoor environment (through a window). NOTE: The camera should only be used in an indoor environment. Mirror and Flip Mirror: Select this checkbox to see a mirror image.
  • Page 22 PT Control: Set Pan/Tilt as upward, downward, leftward, rightward, up-left, down-left, up-right, down-right, etc directions. Center: Click this icon, the camera will pan/tilt, then stop at the center. Normally it will rotate 1 rotation. Up: Click this icon, camera will move up, you can click one by one or hold it to control the movement. Down: Click this icon, camera will move down, click it step by step or hold on to control the movement NOTE: It is the same operation as left, right, up-left, up-right, down-left, down-right etc.
  • Page 23 number, then the camera will rotate to the preset position automatically. If you want to use Call Preset, you have to Set Preset first. NOTE: if you set different positions with a same number, the camera will record the last position setting only. Cruise: Preset cruise, camera can cruise according to the different presets you set.
  • Page 24 Hue: set value from -128 to 127, click the icon, it will change back to the factory settings. 3.4.2 Left Side Menu for Safari, Chrome, Firefox: There are some basic operation icons listed on the left side menu as below: Figure 4.4 PT Control: Set Pan/Tilt as upward, downward, leftward, rightward, up-left, down-left, up-right, down-right, etc.
  • Page 25 Figure 4.5 Set Preset: It supports 9 preset positions. First, control the camera to rotate to the special position you need to set, click Set Preset button it will pop-up a dialog frame (Figure 4.5), choose any number (1-9). Call Preset: It supports 9 preset positions. If you want to monitor an important area quickly and precisely, just click Call Preset Position button it will pop-up a dialog frame (Figure 4.5), choose the number, then camera will rotate to the preset position automatically.

  • Page 26: Setup

    4. Setup Status  Device Info. 4.1. Click “ Setup” icon select “Status”, it will show the basic information such as “Device ID”, “Device Client Version”, “Device System Version”, “Description”, “IP Address”, “UPNP Status”, “DDNS Status” etc. Default device name is “IP Camera”, users can change the camera’s description here, picture as below: 4.1.1.

  • Page 27: General Setting

    4.2. General Setting 4.2.1. User Permission User can set 10 different usernames and passwords for different permission; Permission: Administrator, Operator, and Visitor. Super Administrator：Every device has a super administrator, it has the highest permission, can set all the parameters. Administrator：Lower permission than super administrator, it can set most of the parameters except adding or editing other administrator accounts.

  • Page 28: Date & Time

    If you have more cameras in same LAN network, software can auto-detect them and list in “Device List in LAN” Enable the channel you want to add; Choose the IP, input host(for camera in different network, you will need to input external IP address/DDNS address), web port, media port, username, and password manually, click Add to submit.
  • Page 29 4.2.4. Audio Settings External Headset: User need to enable this feature, and connect external audio device like speak, Mic. So that this feature work. Built-in Headset: This means the built-in Headset port; with located in the cable. User can connect to the audio devices;...

  • Page 30: Network Settings

    4.3. Network Settings 4.3.1. IP Network Type: User can set Dynamic Address to obtain IP directly from router, or set a Static IP manually. Media Port: User can set the Media port to transfer video if need to view camera remotely. (Work with DDNS or external IP) Web Port: User can set the web port to transfer video if need to view camera remotely.

  • Page 31: Upnp Settings

     Ad-Hoc Mode. If using point-to-point transmission, choose Ad-Hoc mode. The factory setting is Infra.  Encryption: WEP, TKIP, AES optional.  Authentication: WEP: Open System or Share Key. TKIP (AES): WPA-PSK or WPA2-PSK.  Select Key: Choose the channel of WEP share Key. ...

  • Page 32: Ddns Settings

    4.3.4. DDNS Settings There are 2 options:  Cpplusddns DDNS This domain is provided by the CPPlus.  Third Party DDNS This domain is provided by a 3rd party, such as Dyndns, 3322 etc.  Enable DDNS: Set DDNS function ON/OFF. ...

  • Page 33: P2P Settings

    4.3.5. P2P Settings User can see and change P2P GUID here 4.3.6. FTP Settings Set FTP service, Snapshots will be delivered to appointed FTP server when alarmed. Enable FTP: Set FTP function ON/OFF. FTP Server: Set FTP server address. FTP Port: Set the port of FTP server, default is 21. FTP User: Set the user name of FTP server.

  • Page 34: E-Mail (Smtp) Settings

    4.3.7 E-mail (SMTP) Settings Enable Email: Set e-mail function ON/OFF. Sender: Set sender’s name or email address Sender’s email: Set sender’s email address. Receiver: Set receiver’s email box. (Supports 3 receivers’ emails simultaneously) SMTP Server: The sender address SMTP server. SMTP Port: The sender’s SMTP Port usually is 25, some SMTP servers have their own port, and e.g, the SMTP port for Gmail is 465.

  • Page 35: Video

    4.4. Video 4.4.1. Video Info Click “Video Info” to enter the interface as below: There are two options for stream, Main-Stream and Sub-Stream, you can set the stream based on the actual operation environment, for example, if the bandwidth is good enough, set Main-Stream as Initial-Stream, or choose Sub-Stream if better.

  • Page 36: Ir Control

    NOTE: When the device runs, only can select Bit Rate or Image Quality either. 4.4.2. IR Control Here we can control IR for specific time. 4.4.3. DWDR To enable or disable DWDR option.

  • Page 37: Alarm Settings

    4.5. Alarm Settings 4.5.1. Motion Detection Motion Detection Zone Armed: Can set all zones to be armed, or a specified zone armed. Before setting a specified zone, you should set "Motion Detection" to "ON", then press left mouse, drag the mouse onto video area to set the detection zone, and save it, supports 3 areas.
  • Page 38  SD-Card Record: Select it to enable record to SD card, unselect to stop.  Send E-mail: Select it to enable E-mail alert function, unselect to stop.  FTP Upload: Select it to enable FTP upload function, unselect to stop. Click Save to save all the settings.

  • Page 39: Record

    4.6. Record 4.6.1. Local Settings Note: This feature will suitable for IE only, as other browsers not support IE activeX. Enable Alarm Record: Camera will record to the path user set when Alarm happens. Alarm Record time: User can set the record time when Alarm happens. Such as 2 min. Manual Record Pack time: User can set the manual record time, such as 2 hours.

  • Page 40: Cruise

    4.7. Cruise Cruise works support 9 directions; User can set the locations, then camera can keep cruising under the directions. Cruise Name: User can set a Name for the cruising Plan. Status: Enable it, User can start settings. Serial Number: User can set the locations or path for cruise. Preset: Camera will follow from 1 to 9;...

  • Page 41: System

    4.8. System 4.8.1. Log Log provides information of camera, login, log out, alarm, power on/off..etc; 4.8.2. Import/Export Config Import/Export Config provide us to copy complete configuration setting of one camera to another camera.

  • Page 42: Auto Maintain

    4.8.3. Auto Maintain Auto Maintain provides an auto protection of hardware; Set a time such as 24:00; Then camera will auto reboot; and refresh the hardware performance.

  • Page 43: System

    4.9. System Reboot Device: Camera will get reboot. Restore factory settings: User can restore factory settings once forget password, settings..etc. Upgrade Device Firmware: To upgrade or degrade the camera firmware.(The firmware needs to store in the same camera you are viewing camera.) Upgrade Device Web UI: To upgrade or degrade the camera web UI.

  • Page 44: Playback For Ie Browser Only

    5. PLAYBACK for IE browser only Note: Playback function shows under IE ActiveX mode only. Other browsers not support this feature. Click login the playback interface, this is for SD Card files playback. So If User not have SD card in the camera or not have any file in SD card, will not work. Search Mode: User can search the record, snapshot etc by different methods.

  • Page 45: Frequently Asked Questions

    6. FREQUENTLY ASKED QUESTIONS I have forgotten the administrator username and/or password There is a [RST] button on the rear panel, keep the power on, hold the reset button for 30 seconds, it will restore back to factory default settings as below: Username: admin Password: admin NOTE: Please don’t press RST button unless you are sure you want to do it.
  • Page 46 Possible Reason 5: Web port has been modified. Solution: Contact as Network Administrator to obtain related information. Possible Reason 6: Unknown. Solution: Press RESET to restore to factory settings then connect it again, the default IP address is 192.168.1.155, subnet mask is 255.255.255.0 6.
  • Page 47 function. Fail to use DDNS Possible Reason 1: The PC or IP Camera can’t connect to the internet. Solution: Check the internet connection and settings. Possible Reason 2: Port forward is not set in router. Solution: Set the port forward of extranet in router correctly. For example, if IP Camera address is: 192.168.1.100, Media port is 25001, Web port is 80, factory DDNS is http://test.cpplusddns.com.
  • Page 48 Repeat step 3 above, it will pop-up the window again, fill in the media port as 25001, IP address as 192.168.1.100, then save. (2) Then check the “Device Info” –“DDNS Status”, It will show DDNS: http://test.cpplusddns.com , input this link in IE, then you can visit this camera remotely. BELKIN: 1.
  • Page 49 Figure 13.3...

  • Page 50: Specifications

    7. SPECIFICATIONS Image Sensor 1/4" Color CMOS Sensor Display Resolution 1280 x 720 Pixels (1000K Pixels, i.e. 1.0 Megapixel) Image Sensor Lens 3.6mm Mini. Illumination 0.5 Lux Viewing Angle 60-90 Degree Input Built-in Microphone Audio Output Built-in Speaker Audio Compression ADPCM Image Compression H.264, MJPEG Image Frame Rate...

  • Page 51: Obtaining Technical Support

    8. OBTAINING TECHNICAL SUPPORT We hope your experience with your IP network camera is enjoyable, but if you experience any issues or have any questions that this User's Guide has not answered, please email us. If your camera does not support some special functions shown in this manual, please contact our technical support team to obtain the latest Firmware and WEB UI file for upgrading.
