Features
Zigbee 3.0 standard protocol
●
Brightness and color temperature adjustable
●
Support PUSH dimming
●
Built-in 18 dynamic mode with jumping, gradually changing( only for 2.4G remote control)
●
Auto-forwarding: Automatically forward the remote control signal to another controller,
●
making the remote control distance in nite
Automatic synchronization: The same dynamic mode is automatically synchronized, so that the mode
●
is always consistent
Have DND function, usually used in power failure area and save power
●
Support TUYA SMART app control (Zigbee 3.0 gateway is needed)
●
Support third party voice control like Alexa, Google assistant,Yandex Alice,
●
Tmall Genie,Baidu and Xiaomi (Zigbee 3.0 gateway is needed)
Parameters
Name: 2 in 1 LED Controller
Model No.:
SZ2
Input Voltage:
DC12~24V
Output Current:
12A/ Single channel
Total Output:
Max 12A
Protocol:
Zigbee 3.0/ 2.4GHz RF
Control Distance:
Zigbee: 100M, 2.4G: 30M
IP Rating:
IP20

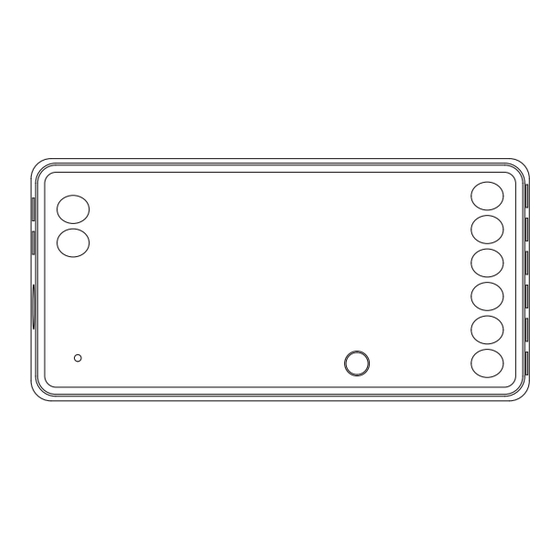

74.5mm
2 in 1 LED Controller
Model No.: SW2
Working Temperature:
EMC Standard (EMC):
Safety Standard (LVD):
Radio Equipment (RED):
Certi cation:
-10~40℃
ETSI EN 301 489-1 V2.2.3(2019-11)
ETSI EN 301 489-3 V2.3.2 (2023-01)
EN 61347-1：2015+A1: 2021
EN 61347-2-11: 2001+A1:2019
ETSI EN 300 328 V2.2.2 (2019-07)
CE, EMC, LVD, RED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mi-Light MiBoxer SW2
Summary of Contents for Mi-Light MiBoxer SW2

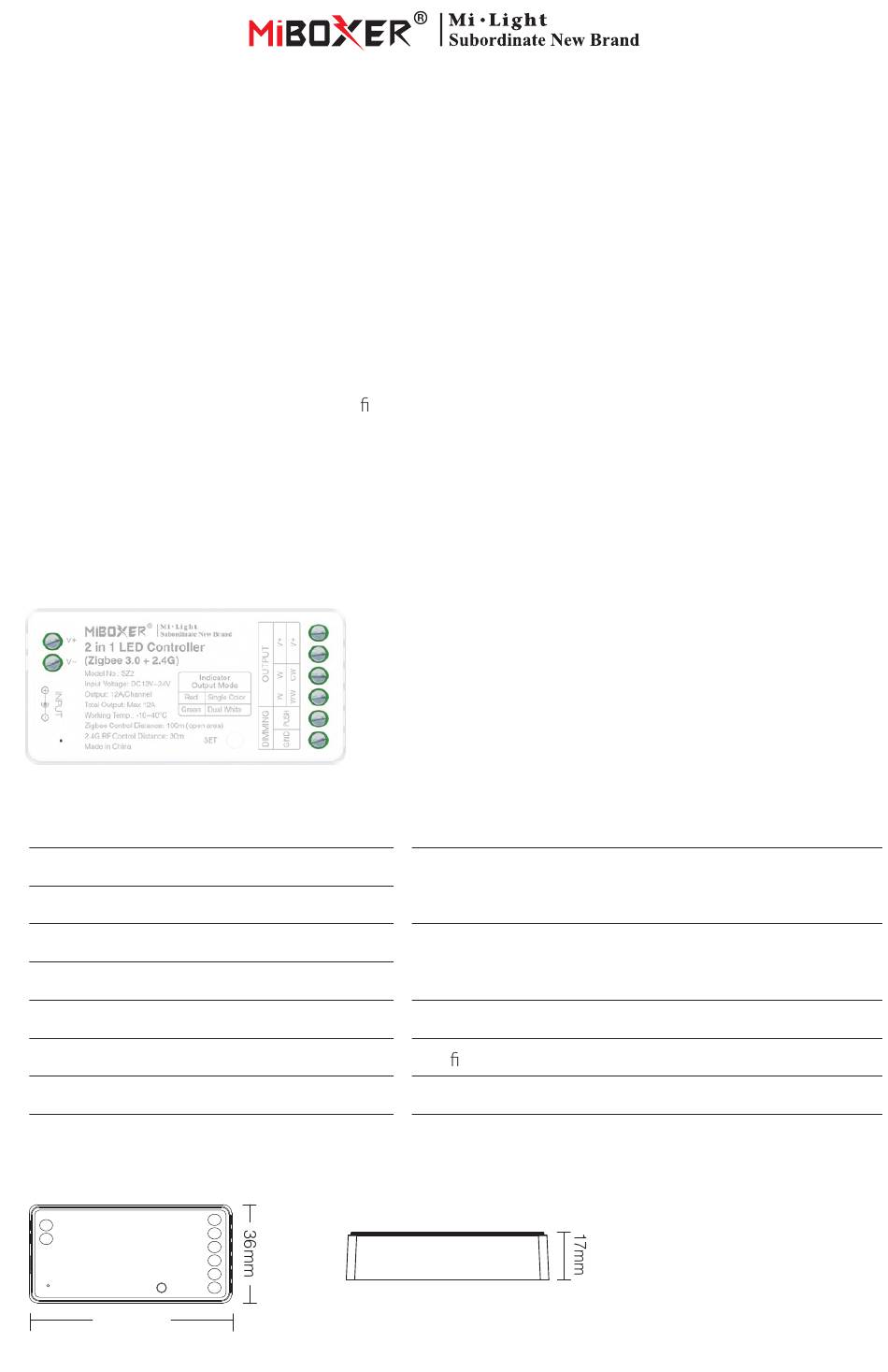

- Page 1 2 in 1 LED Controller Model No.: SW2 Features Zigbee 3.0 standard protocol ● Brightness and color temperature adjustable ● Support PUSH dimming ● Built-in 18 dynamic mode with jumping, gradually changing( only for 2.4G remote control) ● Auto-forwarding: Automatically forward the remote control signal to another controller, ●...
- Page 2 Connection Diagram Input: DC12V~24V Input: DC12V~24V V- V+ V- V+ Dual White Mode Single color mode PUSH switch PUSH switch Application Diagram 4G/ 5G/ WiFi Tuya Cloud Philips hue Input: DC��V~��V Alexa / Google Router Gateway Remote Model No.: FUT006...
- Page 3 Set up output mode Set up correct output mode based on the feature of lights Setting method: Press "SET" button continuously to switch output mode (attention: it will log out without operation within 3 seconds) Output mode sheet ( confirm output mode based on color of indicator) Indicator color Red Light Green Light...
- Page 4 2.4G RF Remote control instruction Linking Code Instructions Power Controller Link / Unlink Power Controller button PUSH Power off 10 seconds and Short press " I " button Lights blink 3 times power on again or short press 3 times within 3 seconds. slowly means linking "SET"...
- Page 5 Auto transmitting (2.4G RF remote signal) can transmit remote signal to another automatically while controller controller the distance between lights are 30m, the remote control distance is unlimited. (Attention: all must be linked with same remote) controllers Auto transmitting Controller Controller Distance 30m PWM high frequency / low frequency switching...
- Page 6 Smartphone APP control instruction Added Zigbee 3.0 gateway into “Tuya Smart” App (please review instruction of Zigbee 3.0 gateway) 1). Connect with power supply. 2). Pairing network (attention: factory default is pairing network). Way one: Turn off and turn on light 6 times or over 6 times continuously, the light is in breathing status. Way two: Long press "...
- Page 7 Philips Hue control instruction Added “Philips Hue” into APP 1). Connect with power supply 2). Pairing network (attention: factory default is pairing network) Way one: Turn off and turn on light 6 times or over 6 times continuously, the light is in breathing status. Way two: Long press "...
- Page 8 Alexa voice control instruction 1). Alexa control (Audio support Zigbee 3.0 protocol) You can connect directly if your Amazon ECHO already is built-in zigbee 3.0 protocol, following model with zigbee 3.0 protocol: Amazon ECHO Plus ( 2nd Gen), ECHO (4th Gen), ECHO Studio, ECHO Show (2. Gen) 1).
- Page 9 Google Home voice control instruction Please add device into MiBoxer Zigbee 3.0 gateway (check details in page 6) and start following steps 1). Open Google Home App 2). Click “+” on the top of left corner 3). Click “Set up device” 4).
- Page 10 Attention 1. Please turn off power supply before installation. 2. Please ensure input voltage to be same as requirements from device. 3. Don’t disassemble device if you are not expert, otherwise it will damage it. 4. Please do not use the light in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.
