Mi-Light SYS-PT1 Quick Start Manual

1. Features

This control box adopt the widely used 2.4GHz wireless technology with the features of low power consumption, long
signal transmitting and strong anti-interference, etc. 2.4GHz RF remote controller, DMX512 controller ( Need DMX 512
LED transmitter. Model No. FUTD01 ). Also with smart phone APP control (need WiFi ibox or WiFi remote). The controller
has auto-transmitting and auto-synchronizing function. Only compatible with Mi-Light SYS series products, including wall
washer light, underwater light and Garden Light,etc.

2. Parameters

Model No.: SYS-PT1
Input: AC 100~240V 50/60Hz
Output Voltage: DC24V
Output Current: Max 8.5A
Output Power: Max 200W
Controlling Distance: 30m
IP Rate: IP66
Product Weight: 2.55kg

3. Auto-transmitting function

One strip controller can transmit the signals from the remote control to another controller within 30m, as long as there is
a strip controller within 30m, the remote control distance can be limitless.
Control Box

4. Auto-synchronization

Different controllers can work synchronously when they are started at different times, controlled by the same remote,
under same dynamic mode and with same speed, and within 30m distance.
Control Box

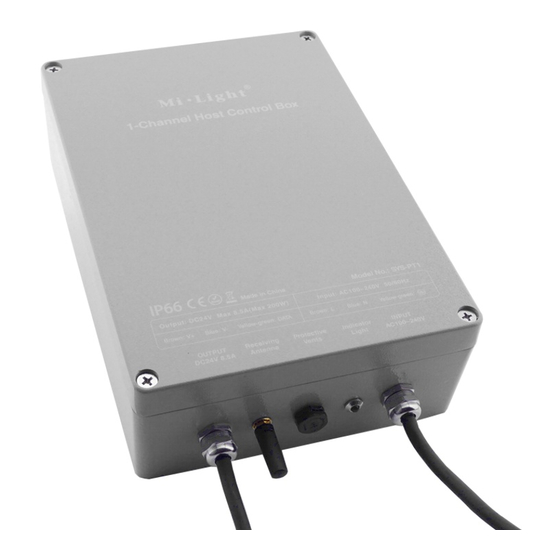

1-Channel Host Control Box
Model No.: SYS-PT1
Auto-transmitting
Distance 30m
Control Box
Remote
Control Box
263mm
Control Box
Distance 30m
Control Box
INPUT AC100~240V
Indicator Light
Protective Vents
Receiving Antenna
OUTPUT DC24V 8.5A
81mm
Control Box
