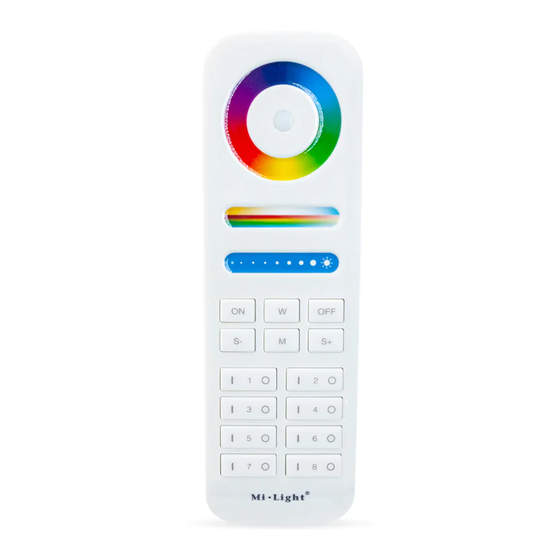

Mi-Light FUT089 Quick Start Manual

8-Zone RGB+CCT Remote Controller

Product Features

This product adopt world-wide used 2.4GHz frequency, GFSK control method, with the
features of low power consumption, long distance transmitting, strong anti-interference
and fast communication rate; can control specified Mi-Light smart light with color,
color temperature, saturation and brightness changing.

Technical Parameters

Model No.: FUT089
Voltage: 3V(AAA * 2PCS)
Transmitting Power: 6dBm
Standby Power Consumption: 15uA
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Control Distance: 30m
Size: 153mm*47mm*19mm

Products Key Diagram

Indicator light
Saturation
/ CCT Control
White light
Master ON
" " Zone ON
(Link/Unlink)
Touch the color ring to change colors.
Under white light mode, adjust color temperature;
Under color light mode, change color saturation.
Slide the brightness slider to adjust the brightness.
Press the button to get white light.
W
Touch ON button, turn on the linked device.
ON
Touch OFF button, turn off the linked device.
OFF
Dynamic mode switching button.
M
Lower the dynamic mode speed.
S-
Accelerate the dynamic mode speed.
S+
Model No.: FUT089
ON
Speed-
S-
W OFF
M S+
1 2
3 4
5 6
7 8
47mm
153mm
ON W OFF
S- M S+
1 2
3 4
5 6
7 8
Color Ring
Brightness
Dimming
Master OFF
Speed+
Mode
" " Zone OFF
19mm
