Mi-Light FUT092 User Instruction

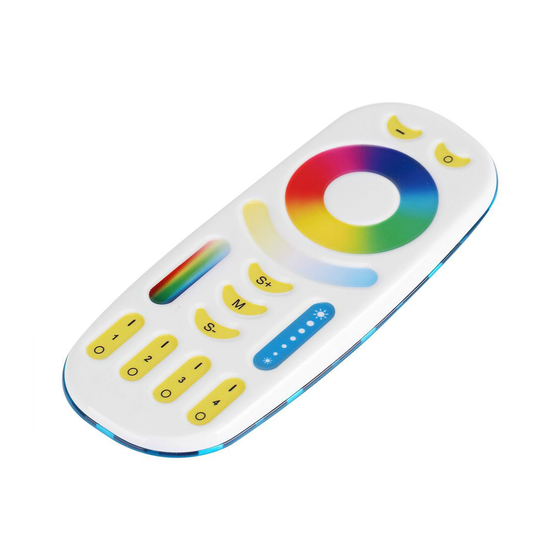

4-Zone RGB+CCT Remote Controller ( FUT092 )

Features

This product adopt world-wide used 2.4GHz frequency, GFSK control method,
with the features of low power consumption, long distance transmitting, strong
anti-interference and fast comunication rate; can control specified Mi-Light
smart light with color, color temperature, saturation and brightness changing.

Parameters

Model No.: FUT092
Voltage: 3V(2*AAA battery)
Power Consumption: 6dBm
Standby Power Consumption: 20uA

Instruction

1. Long press "Master OFF" or "Zone OFF" to night light mode.
2. Touch "Color temperature line" to white light mode and adjust color temperature.
3. Touch "Color Ring" to change the colors.
4. Press "Speed+" to accelerate the dynamic mode speed continously until to fastest
speed.
5. Press "Speed-" to lower the dynamic mode speed continously until to lowest speed.
Master ON
Color Ring
Speed+
Saturation
Control
Speed-
Zone OFF
User Instruction
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Control Distance: 30m
Size: 138mm*56mm*20mm
Master OFF
Indicator
Color
temperatureLine
Brightness
Dimming
Mode
Zone ON
(Link/Unlink)
Caution
1. Remote controller only control specified
Mi-Light products; not all Mi-Light series
can work on this remote controller.
2. In the using of the remote, if the indicated
lamp blinking quickly, pls change the
battery in time.
Pls don't use poor quality battery to
avoid the leaking of battery liquid to
damage the remote controller.
3. Pls don't use the remote controller on
the wide-range metal or strong
electromagnetic wave area, otherwise, it
will badly affect the controlling
distance.
Made in China
2.4G
