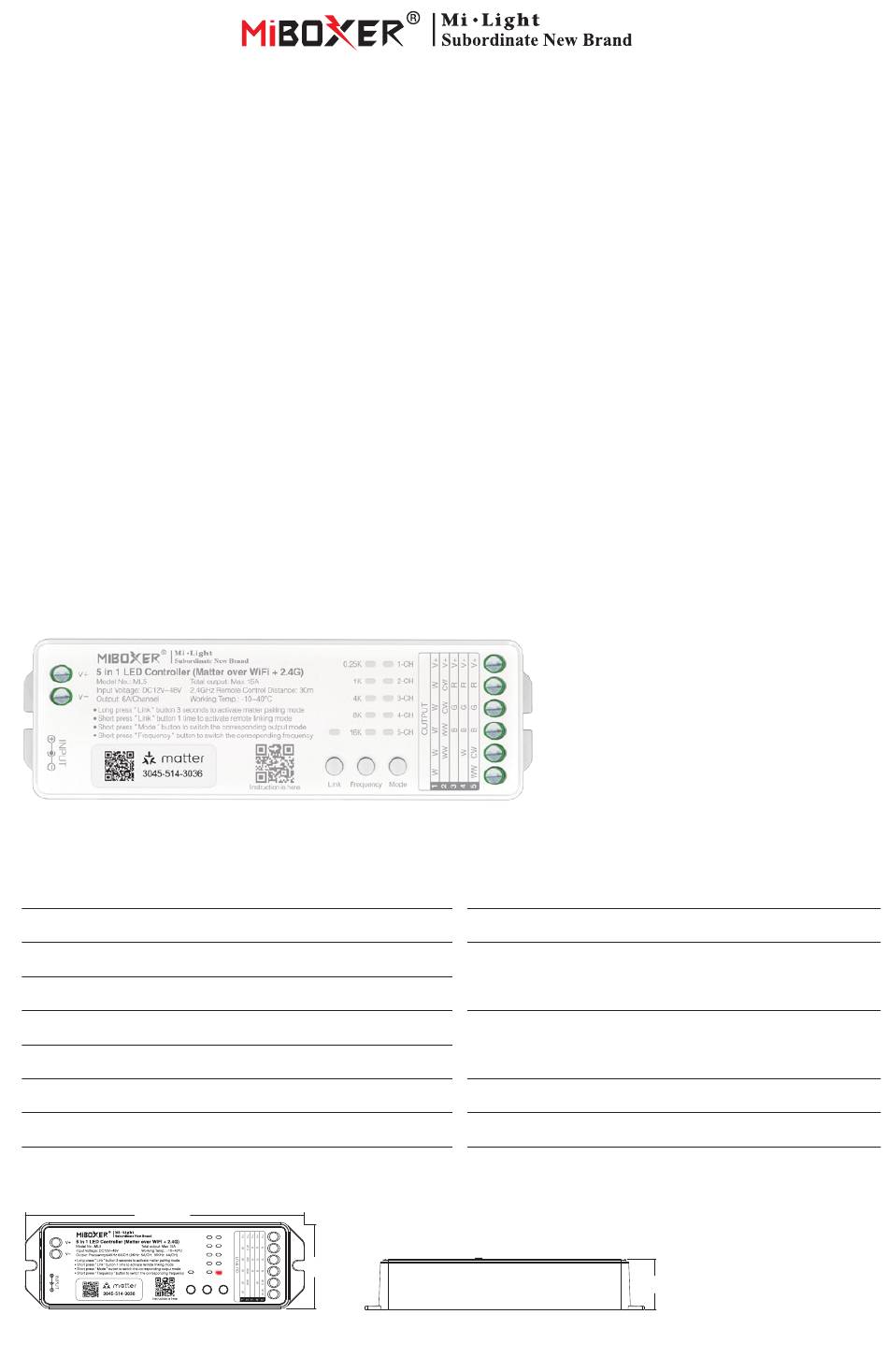

Mi-Light MiBOXER ML5 Manual

5 in 1 controller (matter over wifi+2.4ghz)
Hide thumbs Also See for MiBOXER ML5:

Advertisement

Table of Contents

ML5 5 in 1 Controller (Matter Over WiFi+2.4GHz)
Feature
· Certified Matter Over Wifi, Matter standard protocol, support to Collaborate with multi platforms
· Wide compatibility, collaborate with products from different brands which comply with Matter ecosystem
· Simple configuration, easily pairing via QR code
· Voice control, compatible with Siri, Google Assistant & Alexa portable control
· Support to set up forecast scenes and select scenes based on different lighting requirements
· Max work with 12pcs remote control ( distance 30m)
· Built-in 18 dynamic modes like jumping,fading( only control via remote)
· Auto transmitting: transmit signal to another one automatically and extend countless distance
· Auto synchronization:same dynamic mode can synchronize together
· Support DND mode, usually used in power failure area to save power
· Support multi platforms like Apple Home Kit、Amazon Alexa、Google Home、SmartThings、 Tuya smart
Parameters
Product Name：
5 in 1 Controller (Matter Over WiFi+2.4G)
Model No.:
ML5
Input Voltage:
DC12v~48V
Output Current:
6A/单通道
Total Output：
Max 15A
Protocol：
WiFi+2.4G RF
WiFi Standard：
IEEE 802.11b/g/n 2.4G Hz
Control Distance：
RF: 30M
124mm
Link
Model No.: ML5
0.25K
1-CH
1K
2-CH
4K
3-CH
38mm
8K
4-CH
16K
5-CH
Frequency
Mode
IP Rate：
Working Temperature：
EMC Standard (EMC)：
Safety Standard(LVD)：
Radio Equipment(RED)：
Certification：
IP20
-10~40℃
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.1.1
EN 61347-2-11: 2001+A1: 2019
EN 61347-1: 2015+A1: 2021
EN 62493: 2015+A1: 2022
ETSI EN 300 440 V2.2.1
CE, EMC, LVD, RED
23mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiBOXER ML5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mi-Light MiBOXER ML5

Summary of Contents for Mi-Light MiBOXER ML5

  • Page 1 ML5 5 in 1 Controller (Matter Over WiFi+2.4GHz) Model No.: ML5 Feature · Certified Matter Over Wifi, Matter standard protocol, support to Collaborate with multi platforms · Wide compatibility, collaborate with products from different brands which comply with Matter ecosystem ·...
