Mi-Light MIBOXER FUT035Z Quick Start Manual

LED Controller (Zigbee 3.0)
Model: FUT035Z / FUT036Z / FUT037Z / FUT038Z / FUT039Z

Features

This item supports zigbee 3.0 standard protocol with low consumption,
strong ability to pair with network automatically and resist interference.
User can use zigbee wireless remote to dim light. It supports to pair
with zigbee gateway and enjoy the function (wireless dimmable, remote
control, timmer, group control and music rhythm).
74.5mm

Dual White LED Controller (Zigbee 3.0)

Model No.: FUT035Z
Input Voltage: DC12V~24V
Output: 12A/Channel
Working Temp.: -10~40°C
Color temperature
adjustable
Product follow Zigbee 3.0
standard protocol
Zigbee 3.0
Smartphone APP control
(Zigbee 3.0 gateway is needed)
Input: DC12V/24V
V- V+

Single Color LED Controller (Zigbee 3.0)

Model No.: FUT036Z
Input Voltage: DC12V~24V
Output Max: 12A
Dim brightness
Zigbee remote control
Support third party voice control
(Zigbee 3.0 gateway is needed)
Input: DC12V/24V
V- V+

RGB LED Controller (Zigbee 3.0)

Model No.: FUT037Z
Input Voltage: DC12V~24V
Output: 6A/Channel
Working Temp.: -10~40°C
16 Millions of
colors to choose
Product follow Zigbee 3.0
standard protocol
Zigbee 3.0
Support third party voice control
(Zigbee 3.0 gateway is needed)
Input: DC12V/24V
V- V+

RGBW LED Controller (Zigbee 3.0)

Model No.: FUT038Z
Input Voltage: DC12V~24V
Output: 6A/Channel
Working Temp.: -10~40°C
16 Millions of
colors to choose
Zigbee remote control
Support third party voice control
(Zigbee 3.0 gateway is needed)
Input: DC12V/24V
V- V+

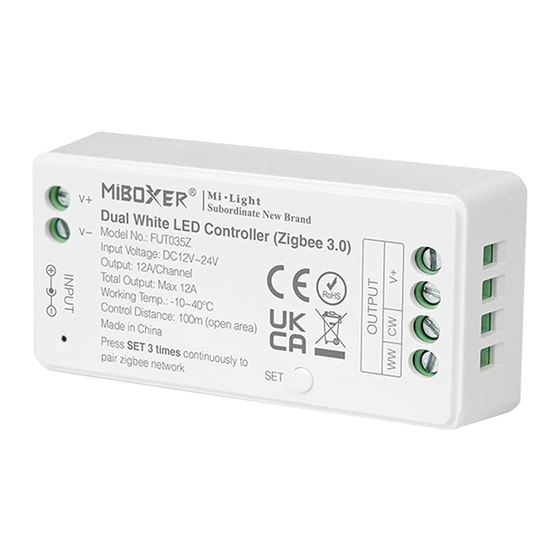

Dual White LED Controller (Zigbee 3.0)
Model No.: FUT035Z
Input Voltage: DC12V~24V
Output: 12A/Channel
Total Output: Max 12A
Working Temp.: -10~40°C
Control Distance: 100m (open area)
Made in China
Press SET 3 times continuously to
pair zigbee network
Single Color LED Controller (Zigbee 3.0)
Model No.: FUT036Z
Input Voltage: DC12V~24V
Output Max: 12A
Working Temp.: -10~40°C
Control Distance: 100m (open area)
Made in China
Press SET 3 times continuously to
pair zigbee network
RGB LED Controller (Zigbee 3.0)
Model No.: FUT037Z
Input Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
Working Temp.: -10~40°C
Control Distance: 100m (open area)
Made in China
Press SET 3 times continuously to
pair zigbee network
RGBW LED Controller (Zigbee 3.0)
Model No.: FUT038Z
Input Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
Working Temp.: -10~40°C
Control Distance: 100m (open area)
Made in China
Press SET 3 times continuously to
pair zigbee network
Subordinate New Brand
Control Distance: 100m (open area)
Total Output: Max 12A
Dim brightness
Zigbee remote control
Support third party voice control
(Zigbee 3.0 gateway is needed)
SET
Control Distance: 100m (open area)
Working Temp.: -10~40°C
Product follow Zigbee 3.0
standard protocol
Zigbee 3.0
Smartphone APP control
(Zigbee 3.0 gateway is needed)
SET
Control Distance: 100m (open area)
Total Output: Max 12A
Dim brightness
Zigbee remote control
Smartphone APP control
(Zigbee 3.0 gateway is needed)
SET
Control Distance: 100m (open area)
Total Output: Max 12A
Dim brightness/
white color
Product follow Zigbee 3.0
standard protocol
Zigbee 3.0
Smartphone APP control
(Zigbee 3.0 gateway is needed)
SET
V+
CW
WW
LED V+
LED V-
V+
R
G
B
V+
R
G
B
W
