Features
Built-in 18 dynamic mode with jumping, gradually
●
changing( only for 2.4G remote control)
Auto-forwarding: Automatically forward the remote control
●
signal to another controller,
making the remote control distance in nite
Automatic synchronization: The same dynamic mode is
●
automatically synchronized,
so that the mode is always consistent
Have DND function, usually used in power failure area and
●
save power
Support TUYA SMART app control (2.4GHz gateway is
●
needed)
Support third party voice control like Alexa, Google
●
assistant,Yandex Alice, Tmall Genie,Baidu and Xiaomi
(2.4GHz gateway is needed)

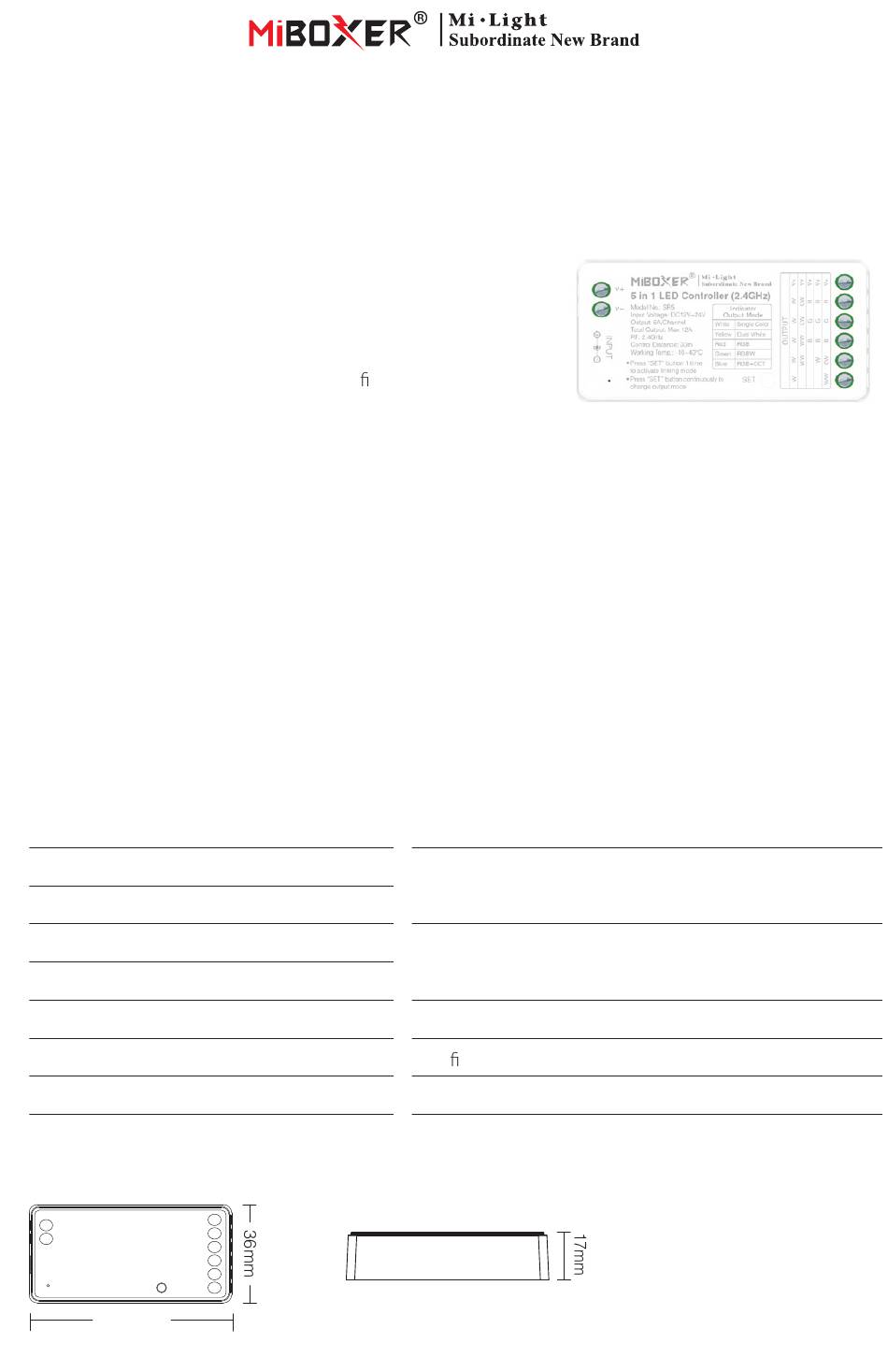

Parameters
Name: 5 in 1 LED Controller
Model No.:
SR5
Input Voltage:
DC12~24V
Output Current:
6A/ Single channel
Total Output:
Max 12A
Protocol:
2.4GHz RF
Control Distance:
30m
IP Rating:
IP20

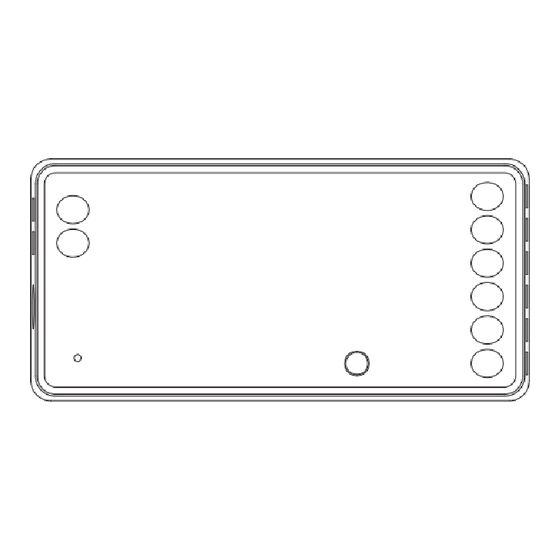

74.5mm
SR5 5 in 1 LED Controller
Model No.: SR5
Working Temperature:
EMC Standard (EMC):
Safety Standard (LVD):
Radio Equipment (RED):
Certi cation:
-10~40℃
ETSI EN 301 489-1 V2.2.3(2019-11)
ETSI EN 301 489-3 V2.3.2 (2023-01)
EN 61347-1：2015+A1: 2021
EN 61347-2-11: 2001+A1:2019
ETSI EN 300 328 V2.2.2 (2019-07)
CE, EMC, LVD, RED
