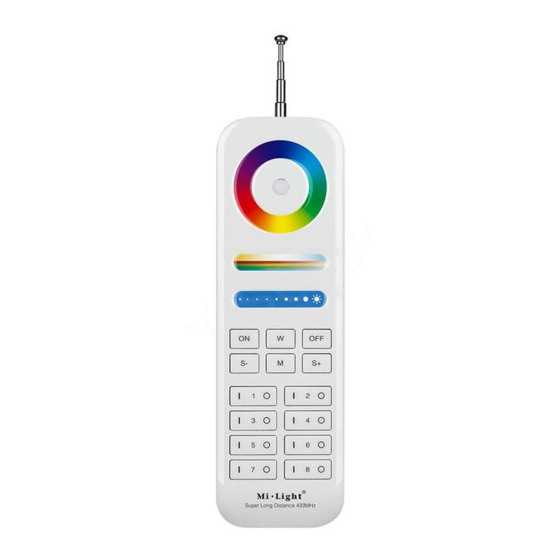

Mi-Light FUT086 Manual

8-Zone 433MHz Remote Controller
Product Features
This product is a 433MHz frequency wireless remote control. We use LoRa SPSP
Modem technology. It can control specified 433MHz series smart lights with color
changing, color temperature, saturation and brightness adjustable.
Technical Parameters
Model No.: FUT086
Voltage: 3V(AAA * 2PCS)
Transmitting Power: 10dBm
Standby Power Consumption: 16uA
RF: 433MHz
Modulation Method: LoRa Spread Spectrum
Control Distance: 50m
Size: 157mm*47mm*19mm
Products Key Diagram
Indicator light
Saturation
/ CCT Control
White light
Master ON
Speed- / 60S Delay OFF
" " Zone ON
(Link/Unlink)
Touch the color ring to change colors.
Under white light mode, adjust color temperature;
Under color light mode, change color saturation.
Slide the brightness slider to adjust the brightness.
Press the button to get white light.
W
Touch ON button, turn on the linked device.
ON
Touch OFF button, turn off the linked device.
OFF
Dynamic mode switching button.
M
Short press: Lower the dynamic mode speed.
S-
Long press under static mode, lamp will blink one time into 60S Delay OFF mode.
Short press: Accelerate the dynamic mode speed.
S+
Long press under static mode, lamp will blink one time into 10min Delay OFF mode.
Model No.: FUT086
(Lamps 0.5m underwater)
ON
S-
1
3
5
7
Super Long Distance 433MHz
47mm
ON W OFF
S- M S+
1 2
3 4
5 6
7 8
Super Long Distance 433MHz
Antenna
antenna when using)
Color Ring
Brightness
Dimming
Master OFF
W OFF
Speed+ /
M S+
Mode
2
" " Zone OFF
4
6
8
19mm 24mm
53mm
(Please pull out the
10min Delay OFF
