R510 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to set up
your Ruckus Wireless R510 Dual Band 802.11ac Multimedia Wi-Fi Access
Point. After completing the steps described in this Guide, you will be able
to place the Access Point (AP) at your site and provide wireless network
access to users.
NOTE: The R510 requires a minimum of ZoneDirector version 9.13 or
later, or SmartZone firmware version 3.4 or later.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
http://
docs.commscope.com/?docs-box.
• Vous trouverez la version française de ce guide à l'adresse suivante
http://docs.commscope.com/?docs-box.
• このガイドの日本語版は
http://docs.commscope.com/?docs-box
ご覧ください。
• 이 가이드의 한국어 버전은 웹 사이트
(http://docs.commscope.com/?
docs-box) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
docs.commscope.com/?docs-box
• Puede ver la versión en español (América Latina) de esta guía en
docs.commscope.com/?docs-box
Before You Begin
Before deploying Ruckus products, please check for the latest software and
the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at
http://support.ruckuswireless.com/
software.
• Open source information is available at
http://
opensource.ruckuswireless.com.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
NOTE: The minimum software revision for the T305i is SmartZone (SZ)
5.1.1 New AP Model.
Package Contents
A complete R510 installation package includes all of the items listed below:
• R510 Access Point
• One wall-mount anchor kit, including two 1" No. 8 steel panhead
Phillips sheet metal screws, one 5mm M2.5 x 1.06 Torx security screw,
and wall-mount anchors
Copyright
©
2024 CommScope, Inc. All rights reserved.
Published March 2024, Part Number 800-70940-001 Rev I
• One external T-bar bracket (two unassembled parts)
• One unit removal pin
• Regulatory flyer
• Product warranty statement
• Declaration of Conformity, if required
• This Quick Setup Guide
Step 1: Collecting Setup Requirements, Hardware
and Tools
• A computer running Windows 7 (procedures for other OS's are similar)
• Two Cat 5e Ethernet cables
• No. 2 Phillips screwdriver and T8 Torx driver for wall mounting anchor
kit
• An AC power adapter (sold separately), or
• an 802.3af or 802.3at -compliant Power over Ethernet (PoE) switch or
PoE injector
• When mounting the R510 to a truss or pole, two customer-supplied
cable ties
IMPORTANT-QSG: If the AP is deployed with a ZoneDirector, then refer
to the ZoneDirector Quick Setup Guide and connect the AP to your local
network.
Step 2: Connecting Your Computer to the AP

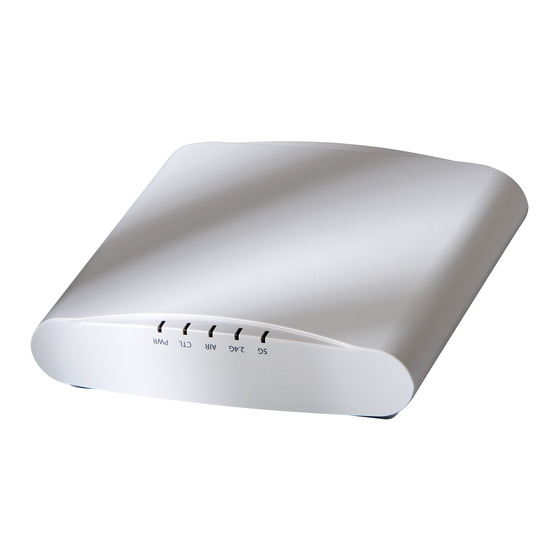

FIGURE 1 Top view
で
http://
http://
http://
1. After removing your Ruckus AP from its package, place it next to your
computer.
2. Using an Ethernet cable, connect your computer's network port to
one of the two ports on the AP.
3. Using an AC adapter (sold separately), connect the AP 12VDC port to
a protected power source.
Alternatively, connect the PoE port to a PoE injector or switch for
both power and network connections
4. Verify that the Power LED on the external enclosure is slowly flashing
green.
FIGURE 2 Bottom view
1. Reset button
2. PoE Port
CAUTION! The reset button is accessible using a thin wire, for
example: a paperclip.
• To soft reset, single press the reset button.
• To factory reset the AP, press and hold the reset button for more
than 3 seconds.
DO NOT RESET THE AP TO FACTORY DEFAULT SETTINGS UNLESS
SO INSTRUCTED. (Doing this resets the AP IP address to
192.168.0.1.)
Step 3: Preparing Your Computer for AP Setup
NOTE: The following procedures assume Windows as the operating
system. Procedures for other operating systems are similar.
1. On your Windows PC, configure your network adapter from the Local
Area Connection settings as follows:
Start > > Control Panel > Network and Sharing Center > Change
Adapter Settings
2. Edit the TCP/IPv4 address settings as follows:
Local Area Connection > Properties > Internet Protocol Version 4
(TCP/IPv4) > Properties
The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box
appears.
IMPORTANT-QSG: Write down all of the currently active settings
so you can restore your computer to its current configuration later
(when this process is complete).
3. Select Use the following IP address (if it is not already selected) and
then make the following entries:
• IP address: 192.168.0.22 (or any available address in the
192.168.0.x network, except 192.168.0.1)
• Subnet mask: 255.255.255.0
• Default gateway: 192.168.0.1
Leave the DNS server fields empty.
3. 12V DC Port
Page 1 of 5
