Parallax PDT-NSM-7024-MP-I Operation Manual page 9

7. Installation Procedures

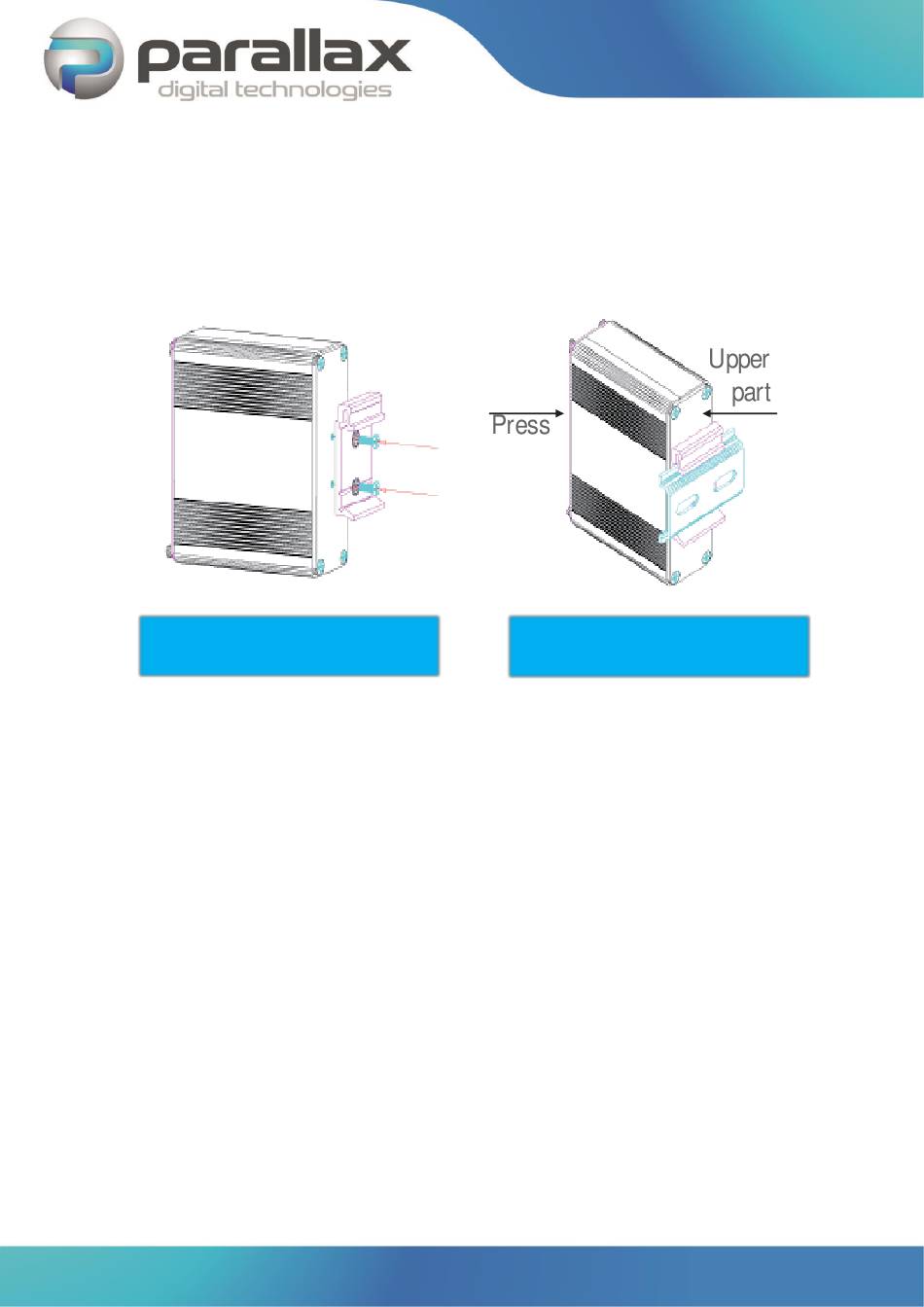

7.1 DIN Rail Installation
Attach the DIN Rail Bracket (if not fitted) to
the switch case using the screws supplied
8. Connection and Setup
8.1 Inspection Checks
Please inspect the unit to ensure that there is no damage to the external casing which could cause a
malfunction of the device or cause a safety critical fault. Any damaged units should be returned to Parallax
Digital Technologies for inspection and testing.
Please ensure that the DC Cables are securely fastened in the terminal block, and that the terminal block is
correctly inserted into the switch power connector housing.
8.2 RJ45 Connections
Ensure all required RJ45 Ports are connected correctly using CAT5e cable or better to the client devices.
The Uplink port should be connected to the host device or network, and the access ports TP1-4 are
available for other devices or connections. All cables should be solid copper and not CCA.
Clip the upper edge of the bracket onto the
DIN Rail and push to latch the bottom strip
