Instructions for installation and use
fig. 1.1
fig. 1.2
fig. 1.4
fig. 1.5
fig. 1.3

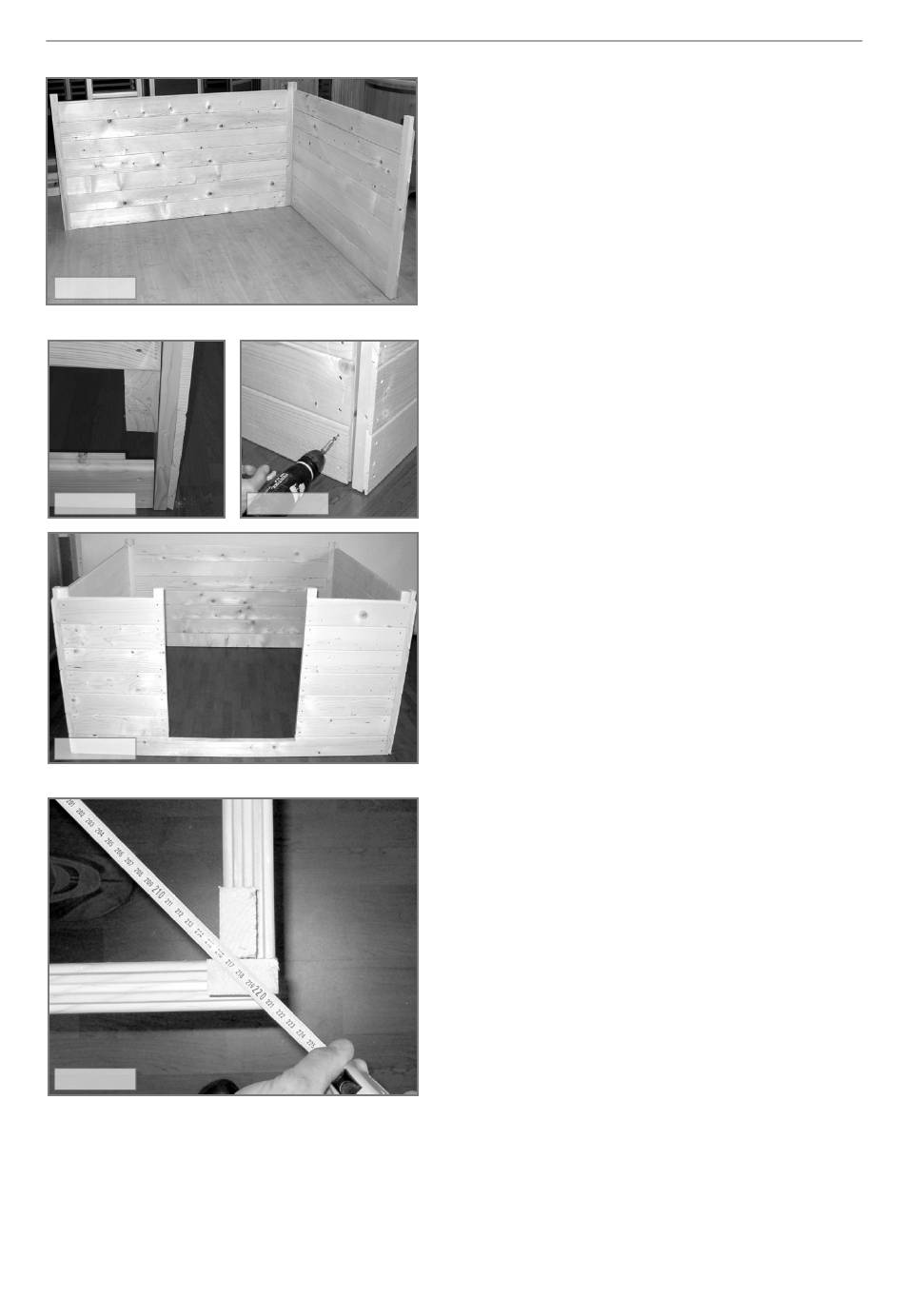

1. First place the right side and the back wall (part I
lower straight) next to each other, so that the screws
can be seen on the outside, as shown in fig.1.1. Screw
the side to the back wall. (screws 5x80)
Use the same procedure for the left side. The back wall
is fixed between both outer sides.
2. Now take the front log board with the opening for
the door and put the narrow right wall element onto
it. (The element has got a projecting batten on the
right side at the bottom. fig.1.2) Now screw the lower
log board from the front to the batten (screws 3x40 -
fig.1.3) and on the side to the outside.
Use the same procedure for the left wall element. Now
the sauna cabin should look as in fig.1.4.
3. Check if the sauna cabin is at right angles by measu-
ring diagonally the length of both sides. (fig.1.5) The
measurements of both sides should be the same. (
+/- 2mm;)
Then check the sides with the spirit level if they are
horizontal by putting the spirit level on the upper
edge of the side.
