Instructions for installation and use

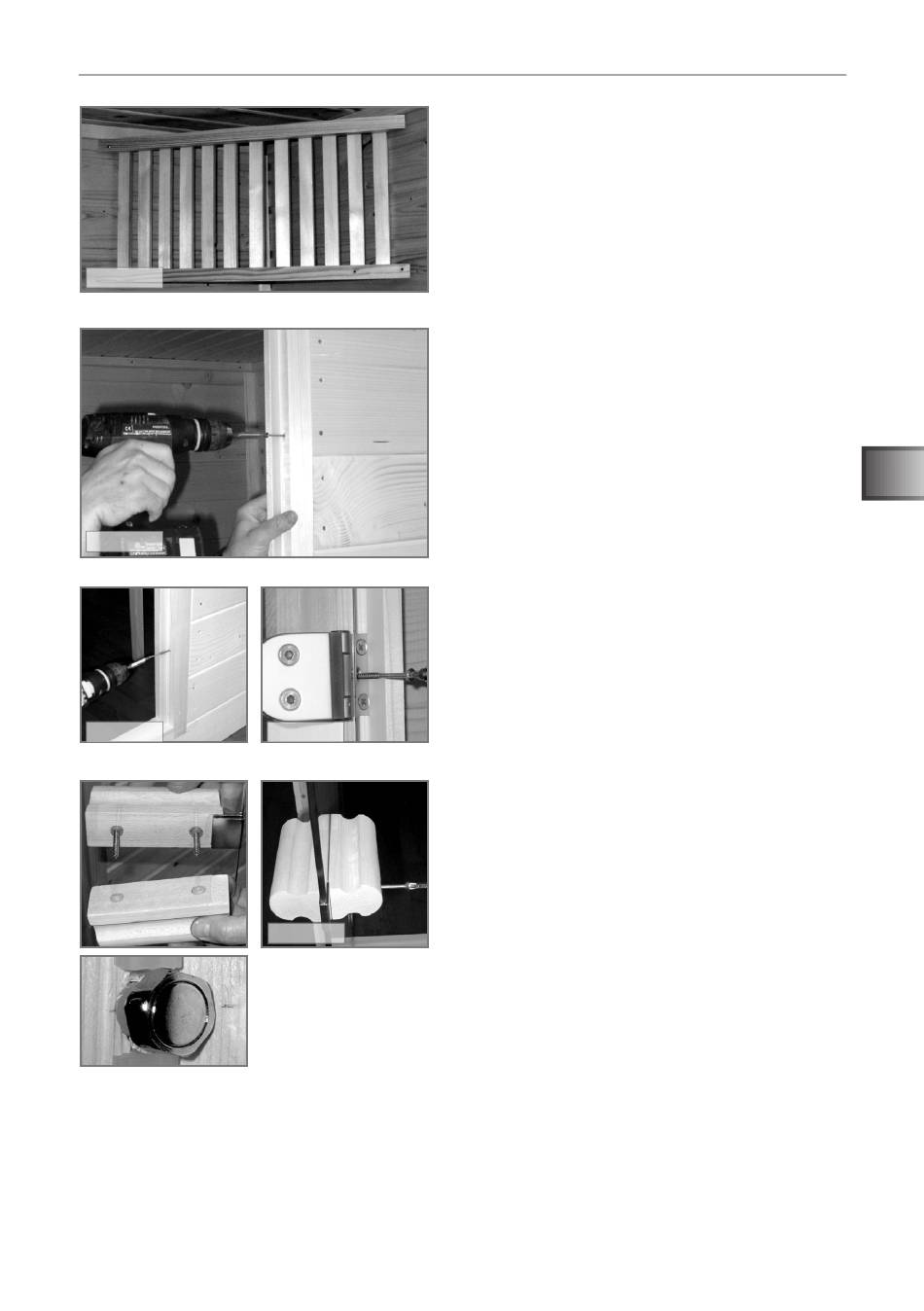

fig. 1.13
fig. 1.14
fig. 1.15 fig. 1.16
fig. 1.17
9. For the cabin light drill a hole of approx. 10 mm
through the back wall in the upper left or right cor-
ner. After the lamp is assembled, the covering grill is
fixed with four screws across the corner. (screws 3x40
- fig.1.13)
The lamp may only be connected by an authorized
electrical company.
10. Now put the glass door with the frame into the
opening. You can change the opening direction of the
door from left to right by turning the glass door part
by 180°. The frame must be exactly in line with the side
and must not project. (screws 4x70 - fig.1.14)
11. Screw the frame with the side walls. (screws 4x70 -
fig.1.15) On the side of the hinge plate, you can screw
the frame through the middle hole of the glass door
hinge plate to the wall. (fig.1.16)
12. In order to assemble the handles slide the covering
sheet on the glass door at the height of the drilled
handle holes. Insert the plastic rings into the drilled
holes of the glass door.
Take care that the recess of the handle is situated on
the side of the covering sheet. Now insert both screws
through the drilled part of the handle and screw the
counterpart carefully.(fig.1.17)
