Instructions for installation and use

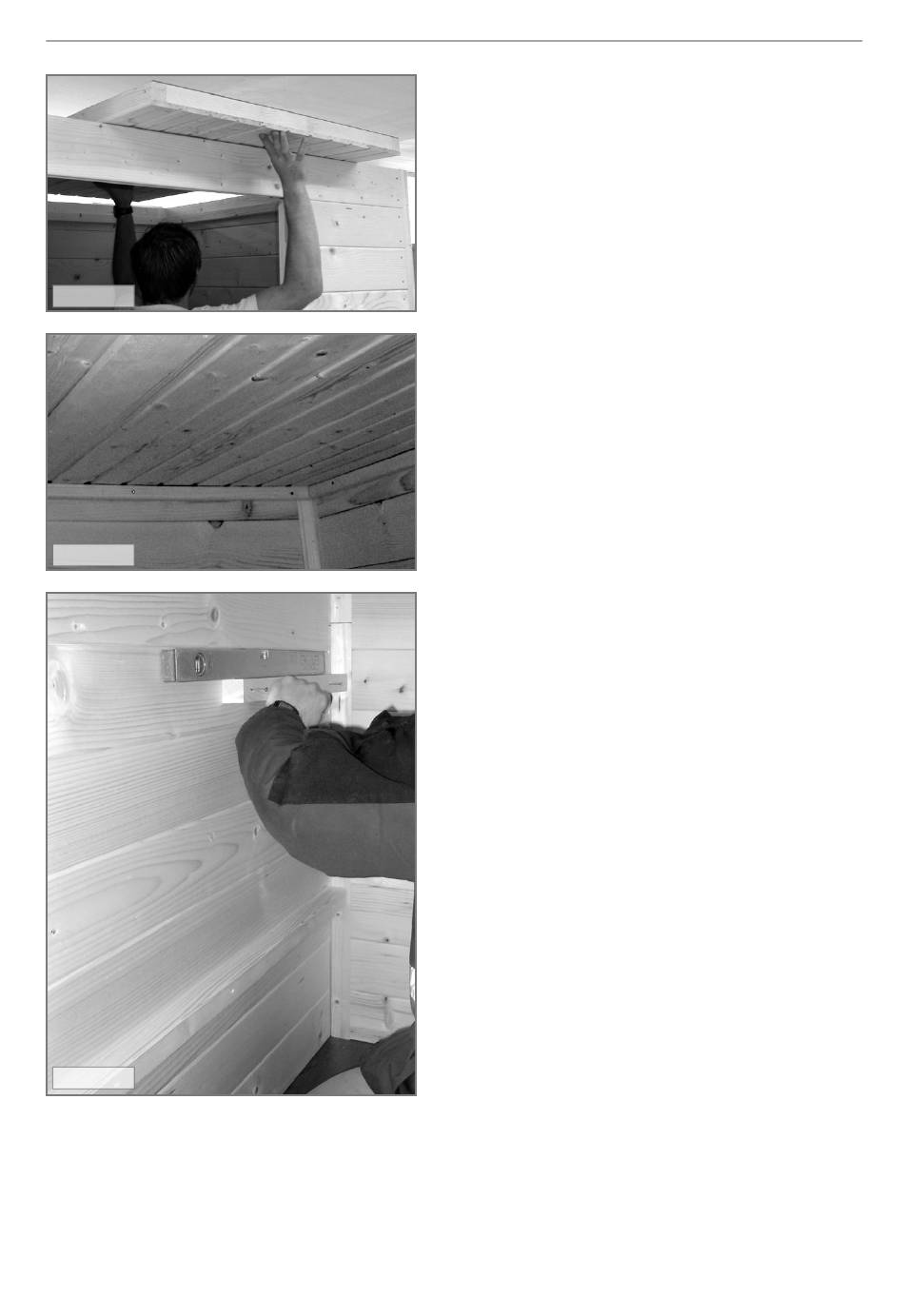

fig. 1.10
fig. 1.11
fig. 1.12
7. After all four battens have been assembled, you can
put both roof elements onto the battens. (fig.1.10 +
fig. 1.11) Then screw the roof elements from above.
(screws 5x80)
8. Now fix the bench supporting battens. Fix the lower
bench supporting battens with a length of 4x4x100
cm at a distance of 41 cm from the floor to the upper
edge of the batten on both the left and right sides of
the glass door. (screws 4x70)
Turn the battens so that the rounded edges are visible
above.
Fix the upper shorter battens with a dimension of
4x4x50 cm at a distance of 86 cm from the floor to the
upper edge of the batten. Turn those battens so that
the rounded edges are visible below. (fig.1.12) Then
put both benches onto the battens.
p. 10/14
