  • Page 1 Massivsauna POLARIS LARGE 234 x 206 x 204 cm MONTAGEANLEITUNG Deutsch POLARIS-L Version 10/24 Artikel-Nr. 1-030-277...
  • Page 2 Lesen Sie diese Montageanleitung gut durch und bewahren Sie sie in der Nähe der Sauna auf. So können Sie jederzeit Produktinformationen nachlesen. Sie inden diese Montageanleitung auch im Downloadbereich unserer Webseite auf www.mediabank.harvia.com. Wichtige Hinweise: ● Kontrollieren Sie, bevor Sie mit der Arbeit beginnen, anhand der Stückliste, ob alle Einzelteile auch tatsächlich mitgeliefert wurden.
  • Page 3 Montageanleitung S. 3/22 Benötigtes Werkzeug ● Hammer und Beilageholz oder einen Gummihammer ● Akkuschrauber mit Bits für Kreuzschrauben und Torx ● Rollmaßband ● Bohrer mit Durchmesser 3 mm, 10 mm, 20 - 30 mm (für Stromkabel Saunaofen) ● Wasserwaage ● Innensechskant-Schlüssel 1,5 mm ●...
  • Page 4 Montageanleitung S. 4/22 Wartung und Reinigung ● Die Sauna sollte mit einem feuchten Tuch gereinigt werden. Verwenden Sie nur warmes Wasser - keine Reinigungsmittel. ● Wird die Sauna längere Zeit nicht benutzt, empfehlen wir, die Kabine einmal im Monat aufzuheizen. Harzgallen sind kein Reklamationsgrund.
  • Page 5 Montageanleitung S. 5/22 Stückliste POLARIS LARGE Bodenrahmen Massiv 4 x 9 cm (1 Stk. 144 cm; 1 Stk. 121,7 cm - 1 x 45° schräg; 1 Stk. 60 cm - 1 x 45° schräg; 2 Stk. 204 cm; 1 Stk. 32 cm) Eckleisten 90°...
  • Page 6 Montageanleitung S. 6/22 Abb 1.1 Abb 1.3 Abb 1.2 Feder je nach Aufbauvariante links oder rechts entfernen. Schrauben 4 x 70 mm Abb 1.4...
  • Page 7 Montageanleitung S. 7/22 Breite Breite 48 cm 44 cm Abb 1.6 Schrauben 6 x 120 mm Abb 1.5 Elementbreite 44 cm Elementbreite 48 cm. Abb 1.7 Elementbreite 52,8 cm - 1 Stk. mit Einhängebeschlag Abb 1.8 Elektroelement 44 cm (sh.Grundriss)
  • Page 8 Montageanleitung S. 8/22 Die Einhängebeschläge bei den Eckleisten bitte lt. beiliegender Schablone anschrauben: Schrauben 3 x 35 mm Abb 1.9 Abb 1.10 Abb 1.11...
  • Page 9 Montageanleitung S. 9/22 Elementbreite 44 cm. Elementbreite 44 cm - mit Einhängebeschlag Abb 1.12 Abb 1.13 Abb 1.14...
  • Page 10 Montageanleitung S. 10/22 Transportleiste vom Türstock entfernen Abb 1.15 Abb 1.16 Vorbohren mit 3 mm Bohrer. Abb 1.17 6 Stk. Schrauben 5 x 100 mm Abb 1.18 Abb 1.19 Abb 1.20...
  • Page 11 Montageanleitung S. 11/22 Dachauflageleisten Schrauben 4 x 70 mm Abb 1.21 Beginnen Sie mit der Auflagelei- ste oberhalb der Türe Abb 1.22 Abb 1.23 Abb 1.24...
  • Page 12 Montageanleitung S. 12/22 Abb.1.25 Abb 1.26 4 Stk. Schrauben 3 x 40 mm Abb.1.27...
  • Page 13 Montageanleitung S. 13/22 Bankauflageleisten Schrauben 5 x 70 mm Abb.1.28 Abb.1.29...
  • Page 14 Montageanleitung S. 14/22 Banksichtblende - Ansicht von vorne Schrauben 4 x 60 mm Abb 1.30 Banksichtblende - Ansicht von hinten Abb 1.31 Abb 1.32...
  • Page 15 Montageanleitung S. 15/22 Auflageleiste unterhalb Querbank zweite Auflageleiste von montieren - Schrauben 4 x 70 mm Querbank Abb 1.33 Abb 1.34 25 cm Abb 1.35...
  • Page 16 Montageanleitung S. 16/22 Abb 1.36 Abb 1.37 Schrauben 3 x 40 mm Abb 1.38...
  • Page 17 Montageanleitung S. 17/22 Silikonbeilage für Glastürbeschläge auf beiden Seiten der Glastüre. Abb 1.39 Abb 1.40 Schrauben 5 x 30 mm Abb 1.41 Abb 1.42...
  • Page 18 Montageanleitung S. 18/22 Türdichtung von Glastüre. Abb 1.43 Abb 1.44 Abb 1.45 Abb 1.46...
  • Page 19 Montageanleitung S. 19/22 Silikoneinlage für Schraubenloch in Glastüre Abb 1.47 Innenseite Abb 1.48 Glastüre links oder rechts montierbar Abb 1.49...
  • Page 20 Montageanleitung S. 20/22 Schrauben 3 x 40 mm Abb 1.50 Abb 1.51...
  • Page 21 Montageanleitung S. 21/22 Schrauben 3 x 30 mm Abb 1.52 Schrauben 3 x 40 mm Abb 1.53 Abb 1.54 Abb 1.55...
  • Page 22 Montageanleitung S. 22/22 GRUNDRISS POLARIS LARGE 234 x 206 x 204 cm Kabine links oder rechts aufbaubar...

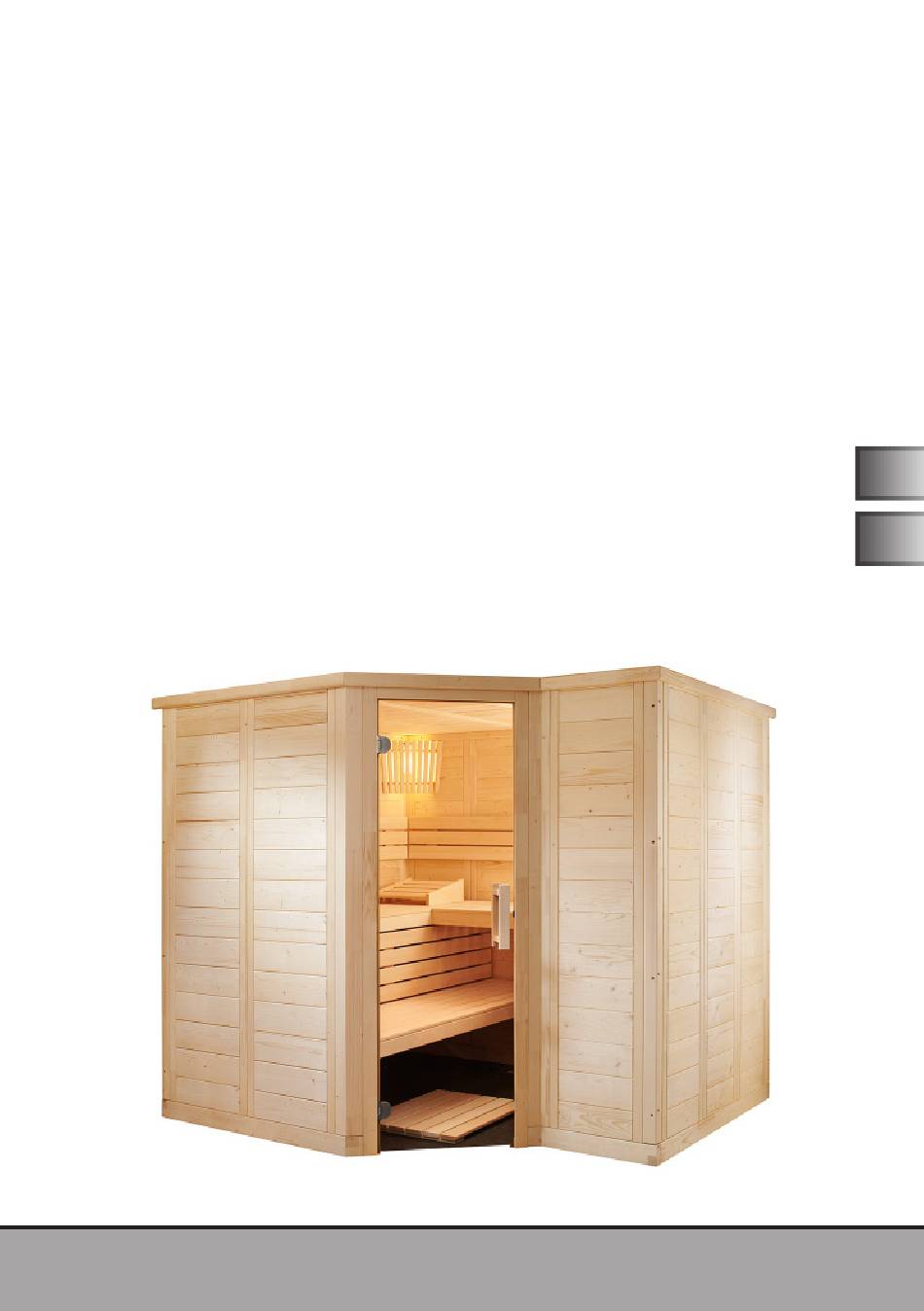

  • Page 23 Solid wood sauna POLARIS LARGE 234 x 206 x 204 cm INSTRUCTIONS FOR INSTALLATION English POLARIS-L Version 10/24 Artikel-Nr. 1-030-277...
  • Page 24 These assembly instructions can also be found in the downloads section of our website: www.mediabank.harvia.com. Important note: ● Before you begin work, check the parts list to ensure that all the individual parts have been delivered.
  • Page 25 Instructions for installation and use p. 3/22 Tools required ● Hammer with a wooden head or a mallet ● Cordless screwdriver with bits for cross-head screws and Torx ● Roller tape measure ● Drill bits with a diameter of 3 mm, 10 mm, 20 - 30 mm (for sauna heater power cable) ●...
  • Page 26 Instructions for installation and use p. 4/22 Maintenance and cleaning ● The sauna should be cleaned with a damp cloth. Only use warm water – no cleaning products. ● We recommend heating the cabin once a month if the sauna is not used for a long time.
  • Page 27 Instructions for installation and use p. 5/22 Parts list POLARIS SMALL floor frames massive battens 4 x 9 cm (1pc. 144 cm; 1pc. 121,7 cm - 1 x 45°; 1pc. 60 cm - 1 x 45°; 1pc. 32 cm; 2pcs. 204cm) corner battens 90°...
  • Page 28 Instructions for installation and use p. 6/22 fig. 1.1 fig. 1.3 fig. 1.2 Remove the tongue on the left or on the right – according to your assembly version screw 4 x 70 mm fig. 1.4...
  • Page 29 Instructions for installation and use p. 7/22 Width Width 48 cm 44 cm fig. 1.6 screw 6 x 120 mm fig. 1.5 Width 44 cm Width 48 cm. fig. 1.7 Width 52,8 cm - one piece with clip mounting fig. 1.8 electric element 44 cm (see plan)
  • Page 30 Instructions for installation and use p. 8/22 screw 3 x 35 mm fig. 1.9 fig. 1.10 fig. 1.11...
  • Page 31 Instructions for installation and use p. 9/22 Width 44 cm. Width 44 cm - with clip mounting fig. 1.12 fig. 1.13 fig. 1.14...
  • Page 32 Instructions for installation and use p. 10/22 Remove the transport batten from the door frame fig. 1.15 fig. 1.16 Drill with 3 mm electric drill fig. 1.17 6 pcs. screw 5 x 100 mm fig. 1.18 fig. 1.19 fig. 1.20...
  • Page 33 Instructions for installation and use p. 11/22 Roof supporting battens – please start above the door screw 4 x 70 mm fig. 1.21 fig. 1.22 fig. 1.23 fig. 1.24...
  • Page 34 Instructions for installation and use p. 12/22 fig. 1.25 4 pcs. screw 3 x 40 mm fig.1.27...
  • Page 35 Instructions for installation and use p. 13/22 Bench supporting battens screw 5 x 70 mm fig. 1.28 fig. 1.29...
  • Page 36 Instructions for installation and use p. 14/22 bench faceplate - outside screw 4 x 60 mm fig 1.30 bench faceplate - inside fig 1.31 fig 1.32...
  • Page 37 Instructions for installation and use p. 15/22 Screw the bench from the bot- tom - screw 4 x 70 mm Second bench supporting batten fig 1.33 fig 1.34 25 cm fig 1.35...
  • Page 38 Instructions for installation and use p. 16/22 fig. 1.36 fig. 1.37 screw 3 x 40 mm fig. 1.38...
  • Page 39 Instructions for installation and use p. 17/22 Silicone ring for hinge plates on both sides of the glass door fig. 1.39 fig. 1.40 screw 5 x 30 mm fig. 1.41 fig. 1.42...
  • Page 40 Instructions for installation and use p. 18/22 Door seal from the glass door. fig. 1.43 fig. 1.44 fig. 1.45 Put the sheet metal on the glass door fig. 1.46...
  • Page 41 Instructions for installation and use p. 19/22 Ring of silicone for screw hole in the glass door fig. 1.47 Inside fig. 1.48 Assembly of the glass door on the left or on the right side fig. 1.49...
  • Page 42 Instructions for installation and use p. 20/22 screw 3 x 40 mm fig. 1.50 fig. 1.51...
  • Page 43 Instructions for installation and use p. 21/22 Start with the frontal border edge above the door screw 3 x 30 mm fig. 1.52 screw 3 x 40 mm fig. 1.53 fig. 1.54 Covering for the screw hole fig. 1.55...
  • Page 44 Instructions for installation and use p. 22/22 PLAN POLARIS LARGE 234 x 206 x 204 cm Assembly of the electricity side wall on the left or on the right side...
  • Page 45 NOTES / NOTIZEN / NOTE ………………………………………………….....………………………………………………………………... ……………………………………………………………..……………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………….....………………………………………………………………... ……………………………………………………………..……………………………………………………………... ……………………………………………………………..……………………………………………………………... ……………………………………………………………..…………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………..…………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………...
