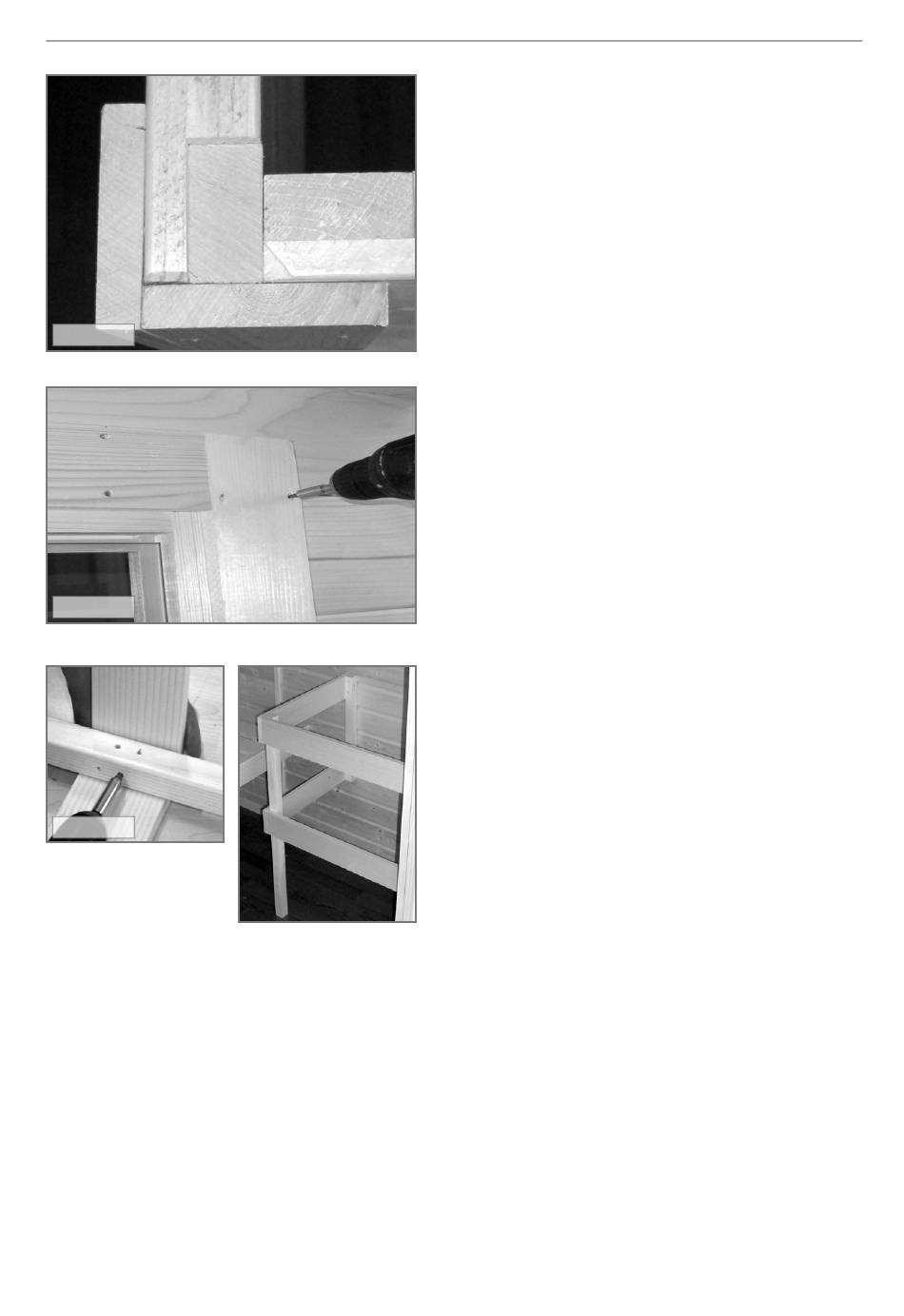

fig. 1.18
fig. 1.19
fig. 1.20
13. After the door is assembled, fix the covering bat-
tens. Start with the front covering batten on the left
side next to the door, then fix the second covering
batten across the corner. (screws 3x40 - fig.1.18)
Use the same procedure for the right corner. If needed,
a covering batten is also fixed on one visible side on
the back.
14. Now fix the inner and outer covering battens to
the door frame and the door side. (screws 3x40) The
distance to the door frame is approx. 12 mm on all
sides. (fig.1.19)
15. Now your sauna is nearly ready. Screw the single
battens of the heater protective grille together as
shown in fig. 1.20. (screws 3x40)
The dimensions for the installation of the sauna heater
can be seen from the assembly instructions of the
heater used.
The sauna heater and the controls may only be con-
nected an authorized electrical company.
