Extron electronics ShareLink Pro 2500 Setup Manual page 4

Downloading the ShareLink Pro Software
To download the ShareLink Pro 2500 for Windows or macOS:
1. Connect your computer to the ShareLink Pro 2500 device, either through an
external WAP or through a physical network connection. The computer and the
ShareLink Pro 2500 must be on the same network.
2.
Open a web browser and enter the ShareLink Pro IP address (see figure 4,
on the previous page) in the browser. The ShareLink landing page appears (see
image at right).
3. Click the ShareLink Pro icon (see
information to run the executable (.exe) file for Windows or the .app file for
macOS.
Connecting to the ShareLink Pro receiver
If the software is not yet connected to the ShareLink Pro receiver, follow these steps:
1. Open the ShareLink Pro software. The software searches for available receivers on your network and lists them in the All
receivers tab.
2. Click the desired ShareLink Pro 2500 device (see the standby screen for the receiver information).
NOTE:
If your device is not listed, select the add icon ( ). Enter the hostname or IP address as instructed on the screen.

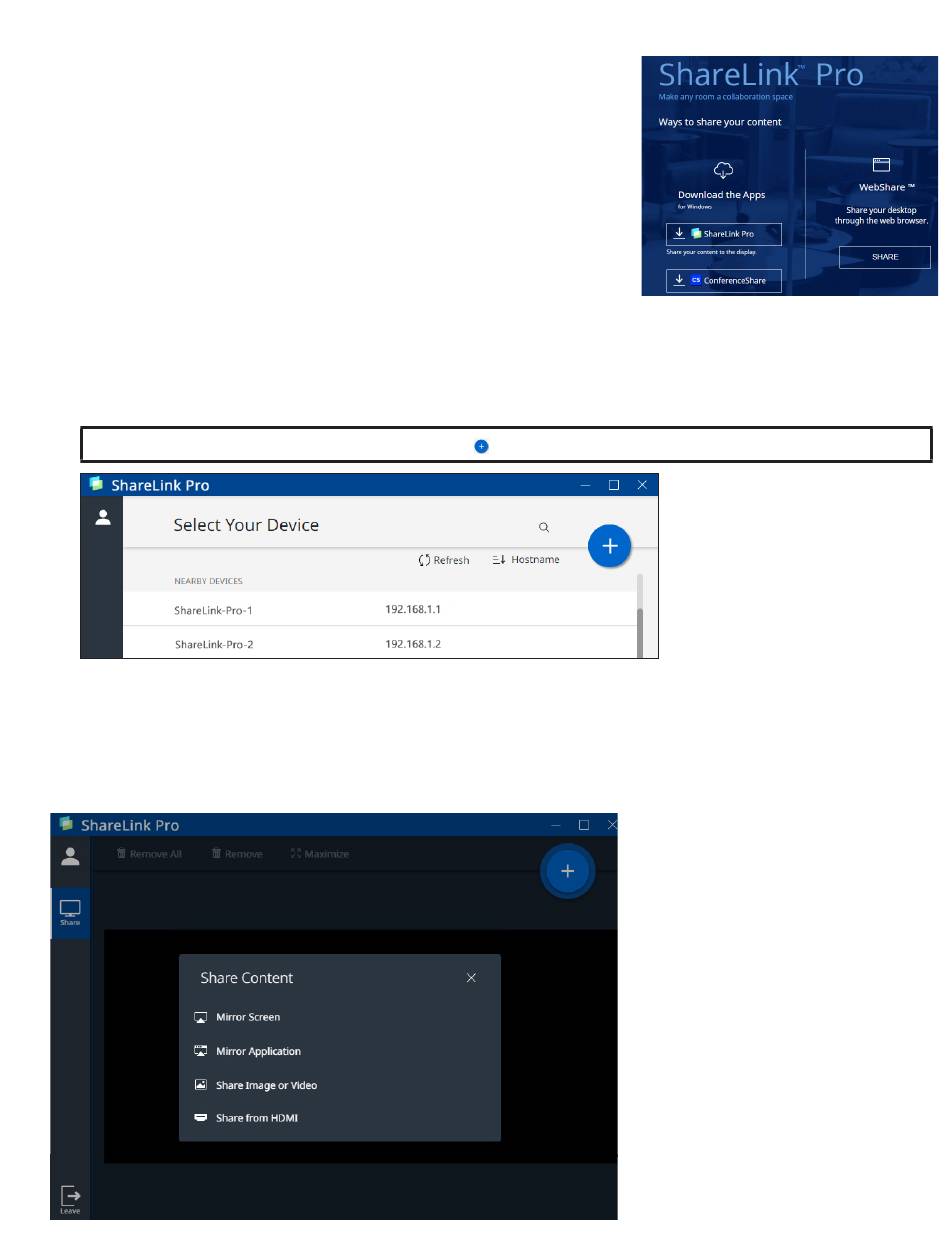

Figure 5. ShareLink Pro Software - Receiver Selection
3. When prompted, enter the login code (see
established, the Share screen appears (see figure 6 below).
Using the ShareLink Pro Software
The Share screen contains the following options to present content:
1 1
2 2
3 3
4 4
5 5
Figure 6. ShareLink Pro Software - Open Session Screen
4
at right), and submit any required
1
figure 4, on the previous page) and click Connect. When connection is
3
2
1 1
Mirror Screen — Click this button to
1
automatically mirror your computer
screen on the display device. Click Stop
Presenting to stop the presentation.
Mirror Application — Click this button
2
to open a sub-menu, showing all the
programs and applications currently
running on your computer. Select a
program or application to automatically
mirror it on the display.
Share Image or Video — Click this
3
button to navigate to a specific video or
image file on your computer. Double-
click the video or image file to present it
on the display.
Share from HDMI — Click this button to
4
share the connected HDMI source as a
window.
Leave — Click this button and select
5
Leave Session to exit the presentation
session.
