Invacare LiNX Chin Control User Manual page 9

CAUTION!
Risk of Injury and Damage
Remaining burrs and missing end caps after m odifications
on rods, such as shortened rod, can l ead to injury or
damage.
— Deburr cut after cutting excessive length.
— Re-install end cap after deburring.
— Check end cap for tight fitting.

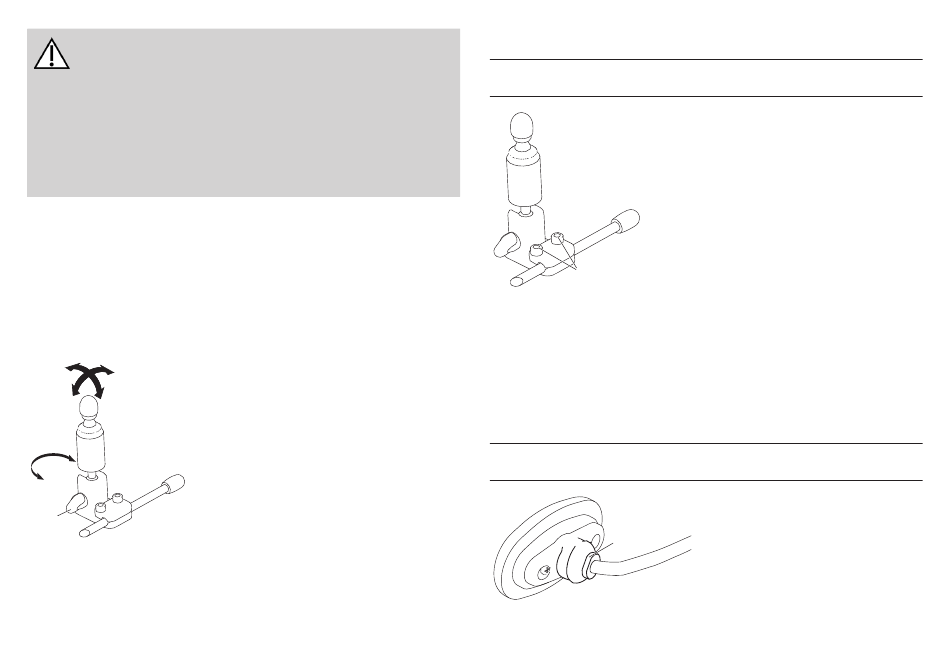

2.4.1 Adjusting Extremity Control Joystick
Adjusting Depth and Height
Refer to 2.4.3 Adjusting Swing-Away Mechanism, page 10.
Adjusting Joystick Orientation
The joystick can be turned through 360 degrees. A slot on the side
allows you to angle the joystick at 90 degrees.
1. Loosen hand screw A.
2. Turn underpart of joystick to position
3. Adjust joystick orientation. If desired,
4. Tighten hand screw.
A
1662641-C
slot.
lock joystick i n 90 degree angle in
slot.
Adjusting Position on Holder
5/32 inch (4 mm) Allen key
l
A
2.4.2 Adjusting Egg Switch
Adjusting Depth and Height
Refer to 2.4.3 Adjusting Swing-Away Mechanism, page 10.
Adjusting Switch Orientation
The egg switch can be turned through 360 degrees.
7/16 inch (11 mm) wrench
l
A
2 Setup
1. Loosen screws A.
2. Position joystick on holder.
3. Tighten screws.
1. Loosen nut A.
2. Adjust egg switch
orientation.
3. Tighten nut.
9
