Invacare LiNX Chin Control User Manual page 11

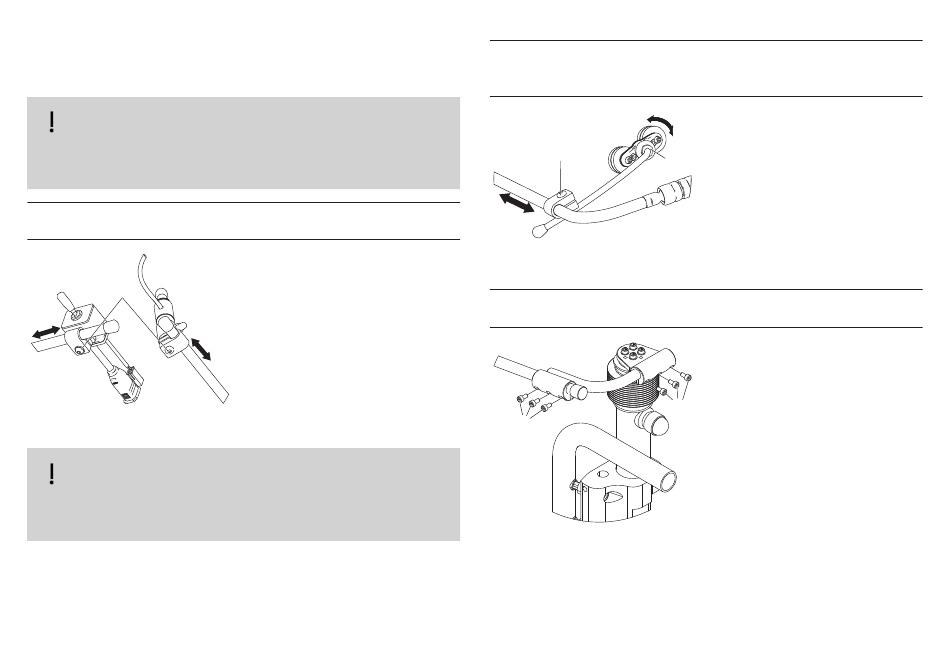

2.5.2 Adjusting Joysticks and Switches on Linkage
Positioning Joysticks / Switches
NOTICE!
If you tighten screws to an improper torque, they might
either come loose or get damaged.
— Tighten the screws to a torque of 3 Nm ± 10 %.
4 mm Allen key
l
A
Positioning Piko Buttons
NOTICE!
If you tighten screws to an improper torque, they might
either come loose or get damaged.
— Tighten the screws to a torque of 3 Nm ± 10 %.
1662641-C
1. Loosen screws A.
2. Move joystick or switch to
desired position on the
linkage.
3. Tighten screws.
4 mm Allen key
l
7/16 inch (11mm) wrench
l
A
B
Adjusting Height And Depth of Linkage
3 mm Allen key
l
A
B
2 Setup
1. Loosen screw A.
2. Move holder to desired
position.
3. If necessary, loosen nut B.
4. Adjust holder orientation.
5. Tighten screw A and nut B.
1. Loosen screws A (height
adjustment) or B (depth
adjustment).
2. Move linkage to desired
position.
3. Tighten screws.
11
