Invacare® LiNX

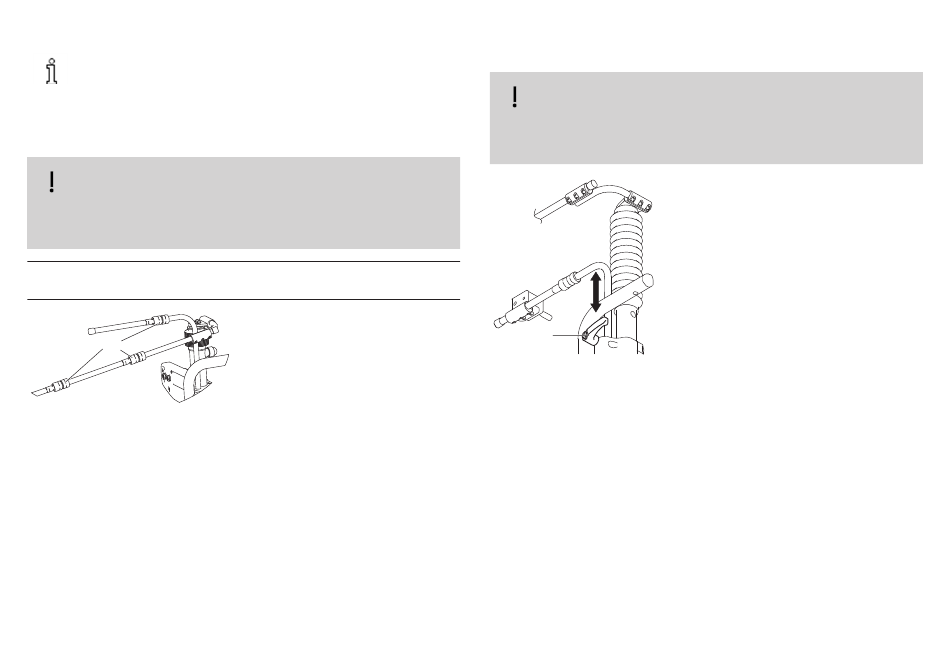

Adjusting Linkage Orientation
This section only applies to variants with ball joints.
You can additionally adjust the position of joysticks and remote via ball
joints in the linkage. The ball joints are freely movable and offer you
infinite adjustment possibilities.
NOTICE!
If you tighten ball joints to an improper torque, they might
either come loose or get damaged.
— Tighten the ball joints to a torque of 35 Nm.
19 mm wrench (2x)
l
A
12
1. Loosen ball joint A.
2. Position linkage.
3. Tighten ball joint.
2.5.3 Adjusting Height of Linkage Switch
NOTICE!
If you tighten clamping lever to an improper torque, it might
either come loose or get damaged.
— Tighten clamping lever only hand-tight.
A
1. Loosen clamping lever A.
2. Adjust height of linkage switch.
3. Tighten clamping lever.
1662641-C
