Daikin EWYA006D2V3P Installer's Reference Manual page 91

EWAA004~008D + EWYA004~008D
Packaged air-cooled water chillers
and packaged air to water heat pumps
4P688013-1C – 2023.05
a Front plate
b Rear plate
c Screws
d Wall plugs

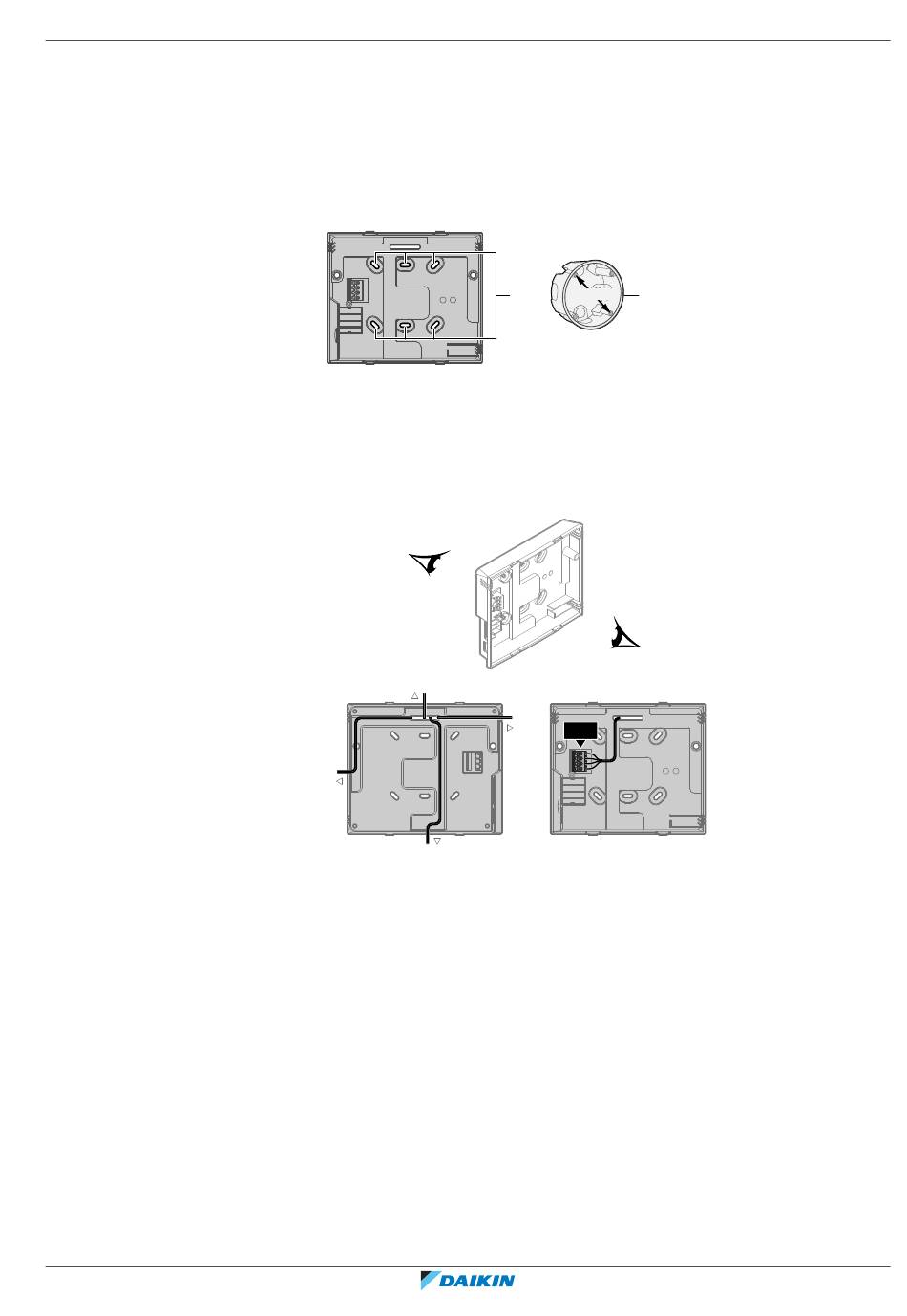

1 Mount the rear plate to the wall.
▪ Use the 2 screws and wall plugs.
▪ Use any of the 6 holes. The holes are compatible with standard electrical box
extenders of 60 mm.
a Holes
b Electrical box extender (field supply)
2 Connect the user interface cable to the user interface.
▪ Choose one of the 4 possible wiring intakes (a, b, c or d).
▪ If you choose the left or right side, make a hole for the cable in the part of
the casing where the casing is thinner.
A
a
A
d
c
a Top side
b Left side
c Bottom side
d Right side
3 Mount the front plate.
▪ Align the positioning pins and push the front plate onto the rear plate until it
moves into place with a click.
▪ The connector pins are automatically inserted correctly.
9
a
b
60 mm
B
B
b
X1B
Electrical installation
|
Installer reference guide
91
