Datavideo RMC-2P Instruction Manual

Camera controller
Hide thumbs

Advertisement

Quick Links

Download this manual
CAMERA
攝影機控制器
CONTROLLER
RMC-2
RMC-2P
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RMC-2P and is the answer not in the manual?

Questions and answers

Related Manuals for Datavideo RMC-2P

Summary of Contents for Datavideo RMC-2P

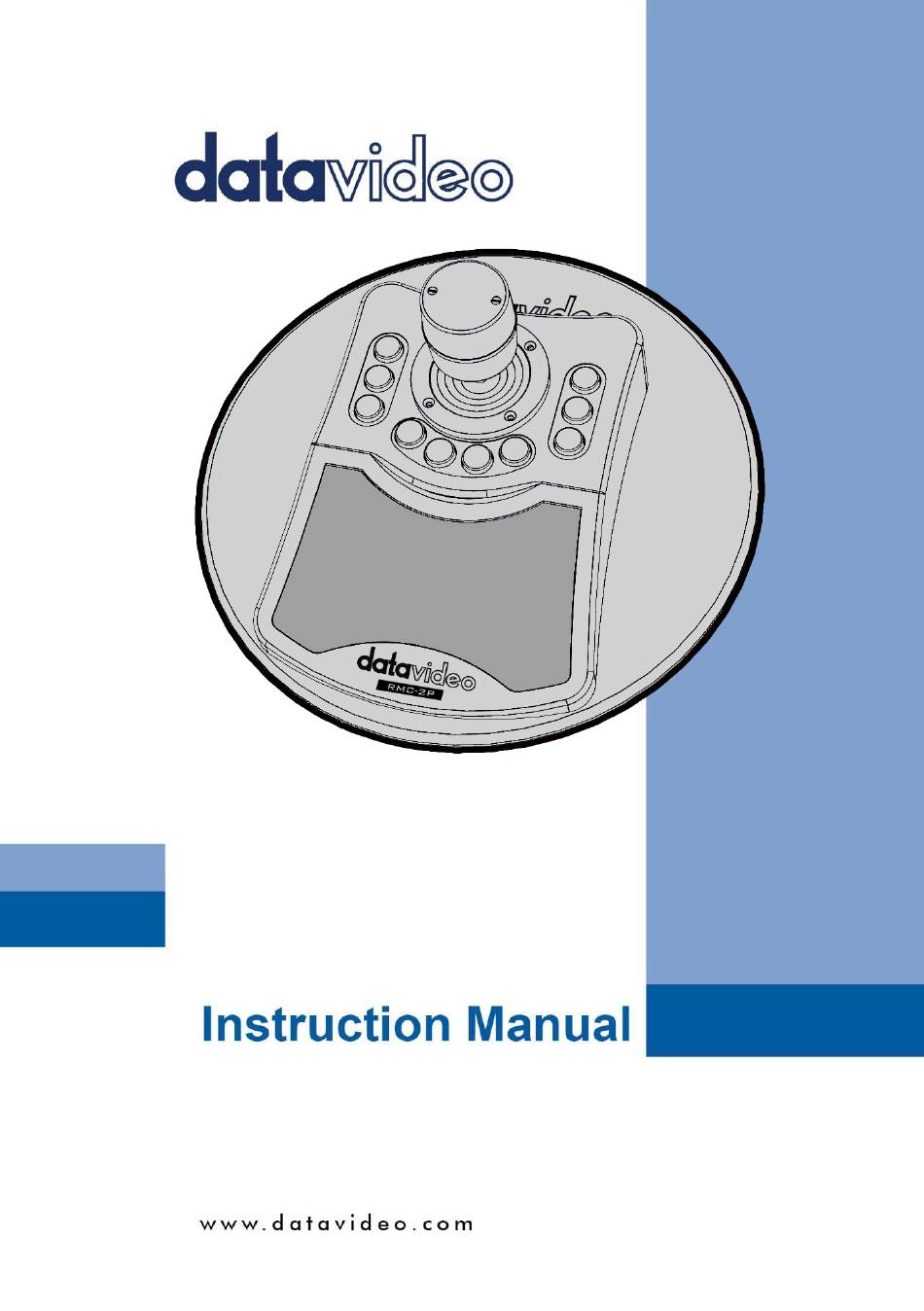

  • Page 1 CAMERA 攝影機控制器 CONTROLLER RMC-2 RMC-2P...
  • Page 2 USB Type C Interface ................12 NETWORK CONNECTION ..............13 DHCP S ....................13 ERVER DHCP C ....................13 LIENT DVIP ......................14 SETUP WITH DATAVIDEO DEVICES ............17 CAST MINI 4K D ........17 HANNEL RESENTATION WITCHER TPC-700 T ..............20 OUCH...
  • Page 3 Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.
  • Page 4 7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
  • Page 5 Warranty Standard Warranty  Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.  The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
  • Page 6 Camera module, PCIe Card are covered for 1 year.  The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. Disposal For EU Customers only - WEEE Marking...
  • Page 7 collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
  • Page 8 SLOW buttons so that you can change the camera’s PTZ speed by simply pressing one of these buttons. Features  The RMC-2P is compatible with the TPC-700 or iCAST MINI through an adapter cable connected to its USB interface.  It can be controlled using the DVIP Protocol.
  • Page 9 2. Connections and Controls Control Panel...
  • Page 10 Camera Selection Buttons (CAM 1/2/3) The RMC-2P allows you to control up to 3 cameras. Press CAM1, CAM2 or CAM3 button to select one of the connected cameras. The buttons should illuminate in red when pushed. Steps to assign cameras to the CAM buttons...
  • Page 11 PST 1 and 4 simultaneously to activate the device’s firmware upgrade mode. The PST 1/2/3/4 should then light up in steady red. Ergonomic anti-slip wrist support pad Rest the wrist on the ergonomic anti-slip wrist support pad while using the RMC-2P. Rear Panel...
  • Page 12 If the RMC-2P is connected to a PoE device via a PoE Ethernet cable, the USB Type C interface can be utilized to connect the RMC-2P to iCAST MINI or TPC- 700 via a USB type C to USB type A adapter cable for remote control of cameras.
  • Page 13 3. Network Connection The RMC-2P can either work as a DHCP server or client. See the DVIP port descriptions for switching between the DHCP server/client. DHCP Server When the DHCP Server is enabled, the RMC-2P functions like a router, which is able to network multiple cameras via a network hub.
  • Page 14 See the section below for descriptions of the tool. DVIP DVIP is an Ethernet-based protocol designed by Datavideo to connect a network of Datavideo devices. DVIP Configuration Tool is a special network configuration software tool designed for DVIP device search on the same network and configuring device network settings such as Hostname, DHCP mode, IP address, subnet mask, gateway IP, and primary and secondary DNS.
  • Page 15 iOS: https://itunes.apple.com/tw/app/dvip-network- config/id1177895983?mt=8 After you’ve installed the DVIP Network Configuration Tool, follow the steps outlined below to scan for online DVIP devices and configure their corresponding settings. Step 1: Open the DVIP Network Configuration Tool then select your PC or laptop’s network interface card from the drop-down menu as shown in the diagram below.
  • Page 16 Step 3: Click one of the connected device to show its information and network settings in the pop-up window shown in the diagram below. Step 4: You are allowed to change the device name in the Host Name field and modify the device’s network settings accordingly.
  • Page 17 Follow the steps outlined below to set up RMC-2P in the iCAST MINI video production system: 1. Connect the RMC-2P and a monitor to iCAST MINI using a USB type C to USB type A adapter cable and an HDMI cable respectively 2.
  • Page 18 4. On the iCAST MINI’s UI, locate and tap the camera icon at the top right corner. 5. Tap “DVIP  Scan” to search for all cameras connected to the same network. 6. Tap the “Select Device” drop-down menu to view a list of cameras found. Select the camera that you would like to control then tap the Connect button.
  • Page 19 Please note that you can only control one camera at a time with iCAST MINI. 7. You’ve established connection with the camera successfully after the camera icon at the top right corner of the UI Home transitions to the enabled state. 8. Start using the RMC-2P to control the camera.
  • Page 20 Follow the steps outlined below to set up RMC-2P in the ZR-1 video production system: 1. Connect the RMC-2P to TPC-700 using a USB type C to USB type A adapter cable. 2. Connect three PTZ cameras to iCAST 10NDI using three HDMI cables.
  • Page 21 Unzip the file, and make sure the folder contains the config file, application firmware, and the DVIP upgrade utility (DVIP_UpgradeTool.exe). 2. Enable DHCP server for the RMC-2P, then establish point-to-point connection with your Windows PC. 3. If your device is installed with the firmware version V1.0.4.8 or before, you can skip this step and proceed to step 4.
  • Page 22 5. Select a network interface card that has established connection with the RMC-2P and enter the RMC-2P’s MAC address. Note: Please do not click the Config Reset button as it will erase the RMC-2P’s MAC address.
  • Page 23 6. Click Get Version to display the RMC-2P’s firmware version. 7. Click Start to begin the firmware upgrade process. 8. After the firmware upgrade process is finished, you will see the following pop-up dialogue box. Click OK to shut down the tool then reboot the RMC-...
  • Page 24 6. Frequently-Asked Questions This section describes problems that you may encounter while using RMC-2P. If you have any questions, please refer to related sections and follow all suggested solutions. If problem still exists, please contact your distributor or the service center.
  • Page 25 7. Dimensions Unit: mm Main Unit...
  • Page 26 Bottom Plate Embedded Magnet...
  • Page 27 - 10°C ~ 60°C (14°F~140°F) Operating Humidity 10% to 80% (non-condensing) Power DC 5V, 8W or IEEE 802.3af 1 X RMC-2P main unit What's in the Box 1 X USB type C to type A cable 1 X Bottom Plate Bottom Plate...
  • Page 28 Service and Support www.datavideo.com/product/RMC-2P Datavideo Technologies Co., Ltd. All rights reserved 2020 Jul 30.2024 Ver: E1...
