Datavideo RMC-2 Instruction Manual

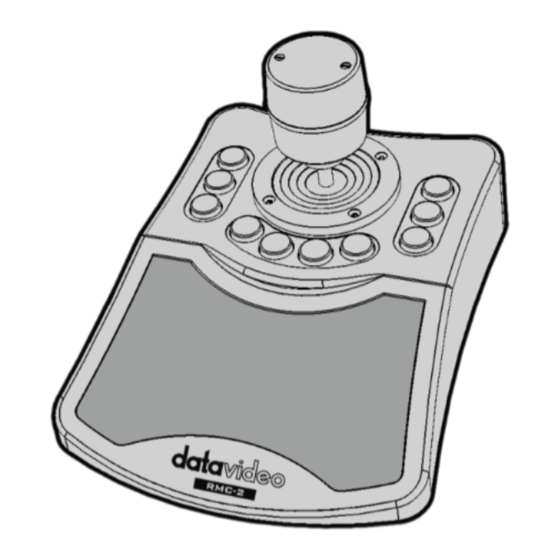

Camera controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
攝影機控制器
CAMERA CONTROLLER
RMC-2
RMC-2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMC-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Datavideo RMC-2

Summary of Contents for Datavideo RMC-2

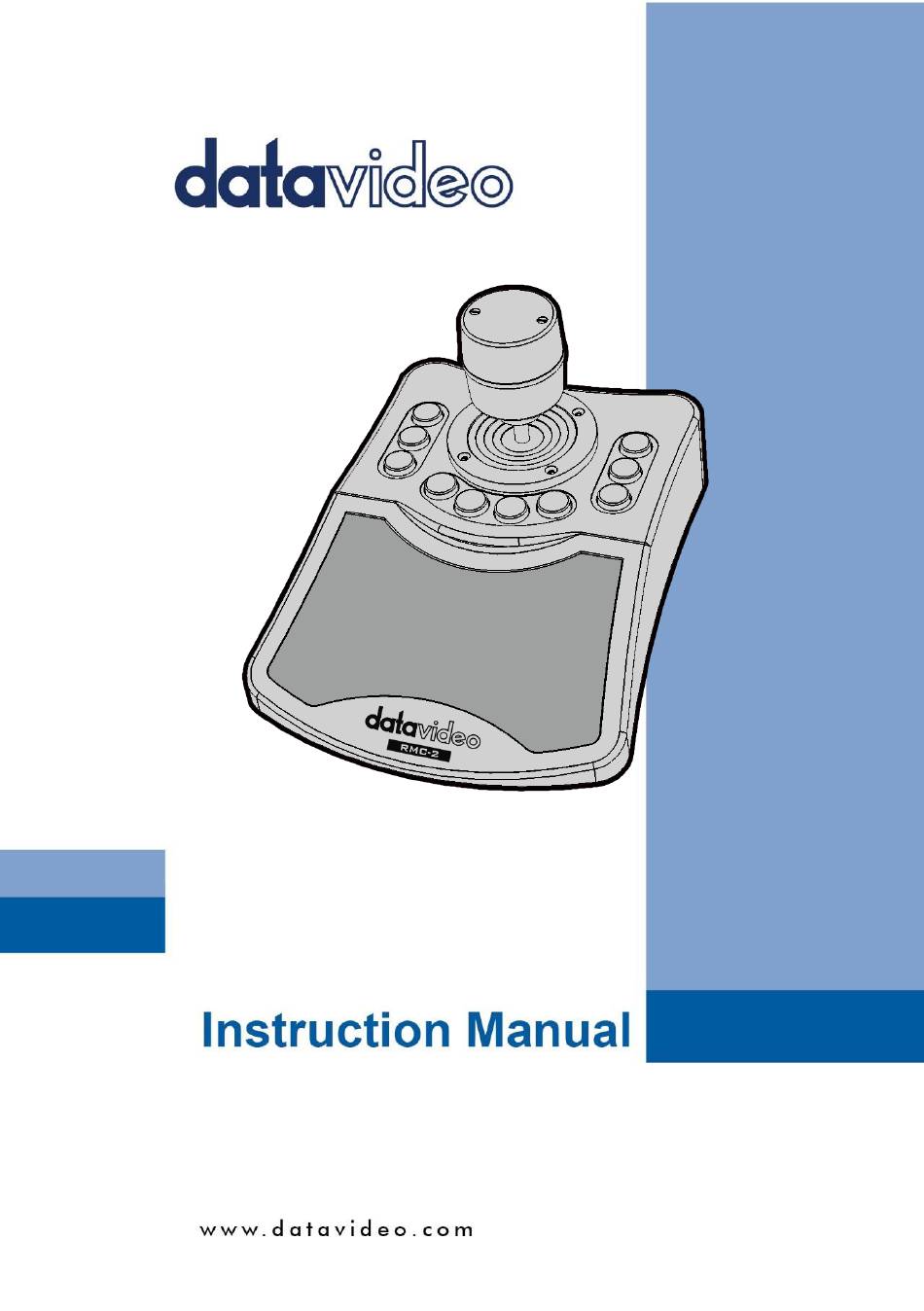

  • Page 1 攝影機控制器 CAMERA CONTROLLER RMC-2 RMC-2...

  • Page 2: Table Of Contents

    Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.

  • Page 3: Fcc Compliance Statement

    7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
  • Page 4 9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord’s rating. 10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.

  • Page 5: Warranty

    Datavideo office.  All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.  Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.

  • Page 6: Disposal

    Lighting, Camera module, PCIe Card are covered for 1 year.  The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. Disposal For EU Customers only - WEEE Marking...

  • Page 7: Product Overview

    “MID” and “SLOW” for you to control the speed for panning and tilting of the camera by pressing one button only. Features  The RMC-2 can be used with the TPC-700 or iCAST MINI by connecting an adapter cable from its USB interface.  It can be controlled by the DVIP Protocol.

  • Page 8: Location And Function Of Parts

    Location and Function of Parts Top View Joystick This is a three axes joystick for you to control the panning and tilting angles of your PTZ camera by pulling the joystick to the up, down, left and right sides. Moreover, it allows you to rotate the joystick to control the automatic Zoom IN/Zoom OUT.
  • Page 9 Camera Selection Buttons The RMC-2 allows you to control up to 3 cameras. Please press CAM1, CAM2 or CAM3 button to select your desired camera for further controlling. The currently selected camera number button will be lit in solid red, and other buttons will be lit in solid white.
  • Page 10 Take iCAST MINI for example, you can connect from iCAST MINI’s USB Type A port to the USB Type C port of the RMC-2 by a USB Type A to USB Type C adapter cable. After that, please connect the iCAST MINI and your camera to the same router and set within the same LAN.

  • Page 11: How To Connect Your Rmc-2 Camera Controller

    Please refer to the following paragraph for the detailed ways of connection. Connect to the PoE Switch Please connect your RMC-2 and up to 3 PTZ cameras to the same PoE switch by the Ethernet cable according to the following diagram. After that, you can use the RMC-2 to control the Panning, Tilting, Zooming and Preset Recalling functions for up to 3 cameras.

  • Page 12: Connect To Icast Mini Or Tpc-700

    Connect to iCAST MINI or TPC-700 You can connect your RMC-2 camera controller to iCAST MINI or TPC-700 for controlling your camera. We will take iCAST MINI as an example in this chapter. Please connect your RMC-2 camera controller to iCAST MINI according to the diagram below.
  • Page 13 4. Please tap the camera icon which is located at the top-right corner of the iCAST MINI main interface. After that, please select “DVIP>Scan” from the “Connect” interface.
  • Page 14 5. If there is only one camera connected, please tap the “Connect” button after the IP address of the connected camera is found by the iCAST MINI. If multiple cameras are connected, please tap “Select Device” option to select the camera that you want to connect, and then please tap the “Apply” button. Finally, please tap the “Connect”...
  • Page 15 RMC-2 to the F/W UPGRADE interface which is located on the rear panel of the iCAST MINI. After that, you can use the RMC-2 to control the PTZ camera which is connected to the same LAN as the iCAST MINI. At this time, you can recall the presets which are saved in the iCAST MINI in advance by pressing four PRESET buttons including PST 1 to PST 4.

  • Page 16: How To Use Rmc-2 To Control Your Camera

     CAMERA: If you have more than one camera and those cameras are connected to Datavideo iCAST 10NDI and controlled by TPC-700 or TPC- 700P’s ZR-1 app. You can use the CAM1, CAM2 or CAM3 button in this area to select the camera that you want to control.

  • Page 17: Dimensions

    Dimensions Unit：mm...

  • Page 18: Specifications

    Range Storage Temperature - 10°C ~ 60°C (14°F~140°F) Operating Humidity 10 % to 80 % (non-condensing) Power DC 5V, 8W or IEEE 802.3af 1 X RMC-2 main unit What's in the Box 1x USB type C to type A cable...
  • Page 19 Note...

  • Page 20: Service And Support

    Service and Support www.datavideo.com/product/RMC-2 Nov.-21.2023 Ver:E2...
