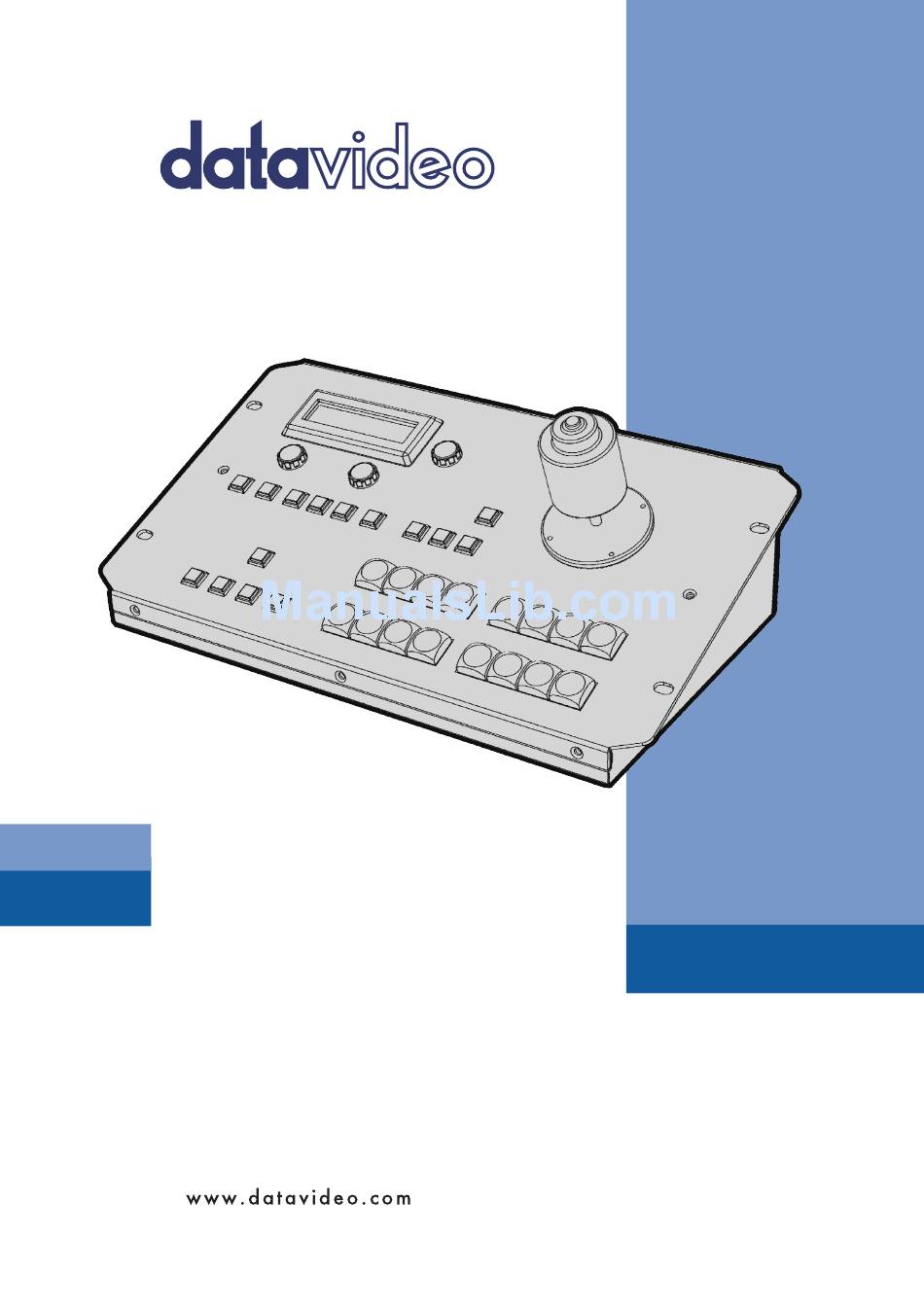

  • Page 1 KMU CONTROLLER RMC-185 Instruction manual...

  • Page 2: Table Of Contents

    SERVICE AND SUPPORT..............................18 Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.

  • Page 3: Fcc Compliance Statement

    7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 4: Warranty

    Your statutory rights are not affected. Three Year Warranty All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to • the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.

  • Page 5: Introduction

    4K Multi-Camera Processor. The RMC-185 interfaces with the KMU-100 via an RS-422 interface. The RMC-185 panel style design allows easy control of the KMU-100 with the hard keys giving the user quick access to main functions of the KMU-100. In addition, you can also use the joystick to move the selected frame view.

  • Page 6: Connections And Controls

    2. Connections and Controls Front Panel – Keyboard LCD Display The RMC-185 status or the setup menu options are displayed on the LCD panel. Menu Control Dials The RMC-185 configuration menu can be entered and browsed using these dials. Push to select a specific item and rotate to browse the selected menu option.
  • Page 7 STORE Pressing this button enters the RMC-185 into STORE MODE. When activated, this allows the current device setting to be stored in a chosen Preset Button by pressing the corresponding Preset Button.

  • Page 8: Rear Panel - Connections

    RJ-45 port to connect the KMU-100 The RJ-45 ports are provided on the RMC-185 rear to connect the KMU- 100. The communication protocol is RS-422, so use an RJ-45-to-DSub cable to connect the RMC-185 to the RS-422 port located on the KMU- 100 rear panel.

  • Page 9: Menu Setup

    3. Menu Setup Press the MENU button to enter the MENU. The RMC-185 status or the setup menu options are displayed on the LCD panel. Press the dial to select a particular option and rotate the dial to browse through the option items.

  • Page 10: Fn1. Exits The Menu (Exit)

    KMU-100 Temp PCB Board Temperature FN13 Firmware Ver. RMC-185 Firmware Version FN1. Exits the MENU (EXIT) Exits the setup menu mode. FN2. Input A Source Assignment (Input A Source) In this option, you may select a source for input A image processing. The available interfaces are: •...

  • Page 11: Fn5. Genlock Setting (Genlock Set)

    In the KMU-100 Temp option, you will be able to check measured temperatures of the KMU-100 FPGA and PCB boards. FN13. RMC-185 Firmware Version Display (Firmware Ver.) Upon entering the Firmware Ver. option, the RMC-185 firmware version will be displayed.

  • Page 12: Storing Different Device Settings

    4. Storing Different Device Settings The RMC-185 allows you to store up to four device settings. Follow the procedure below to store the current device setting to one of the preset buttons. To store a device setting: 1. Adjust the frame positions using the joystick.

  • Page 13: Firmware Upgrade Procedure

    • A USB A to USB A cable not longer than 2 meters • A Windows PC with USB 2.0 ports or above 1. Power off the RMC-185 and use a USB cable (USB A to USB A) to connect the USB firmware upgrade port on the RMC-185 rear panel to a USB port on the PC.
  • Page 14 5. The RMC-185 device (RMC-185_U38) will appear as a removable storage device on the PC as shown below. 6. Double click the RMC-185_U38 removable storage device and delete the “bootcode.bin” file. 7. Copy and paste the latest bootloader firmware file (bootcode.bin) into the RMC-185_U38 removable storage device.
  • Page 15 11. Remove bootcode.bin from the RMC-185 device and copy and paste the application firmware into the RMC-185 device. 12. Reboot the RMC-185 device again and the LCD display will now show the following. 13. The RMC-185 device is now ready for controlling the connected KMU device.

  • Page 16: Frequently-Asked Questions

    6. Frequently-Asked Questions This section describes problems that you may encounter while using RMC-185. If you have any questions, please refer to related sections and follow all suggested solutions. If problem still exists, please contact your distributor or the service center.

  • Page 17: Dimensions

    7. Dimensions All measurements in millimeters (mm) 8. Specifications RMC-185 KMU Controller Firmware Upgrade Power DC 12V 0.5A Dimensions (W x H x D) 310 x 129.98 x 170 (mm) Net Weight 1.5 Kg Gross Weight 2.0 Kg Operating Temperature 0°C to 50°C (32°F to 122°F)

  • Page 18: Service And Support

    Service & Support It is our goal to make owning and using Datavideo products a satisfying experience. Our support staff is available to assist you to set up and operate your system. Contact your local office for specific support requests. Plus, DATAVIDEO WORLDWIDE OFFICES please visit www.datavideo.com to access our FAQ section.
