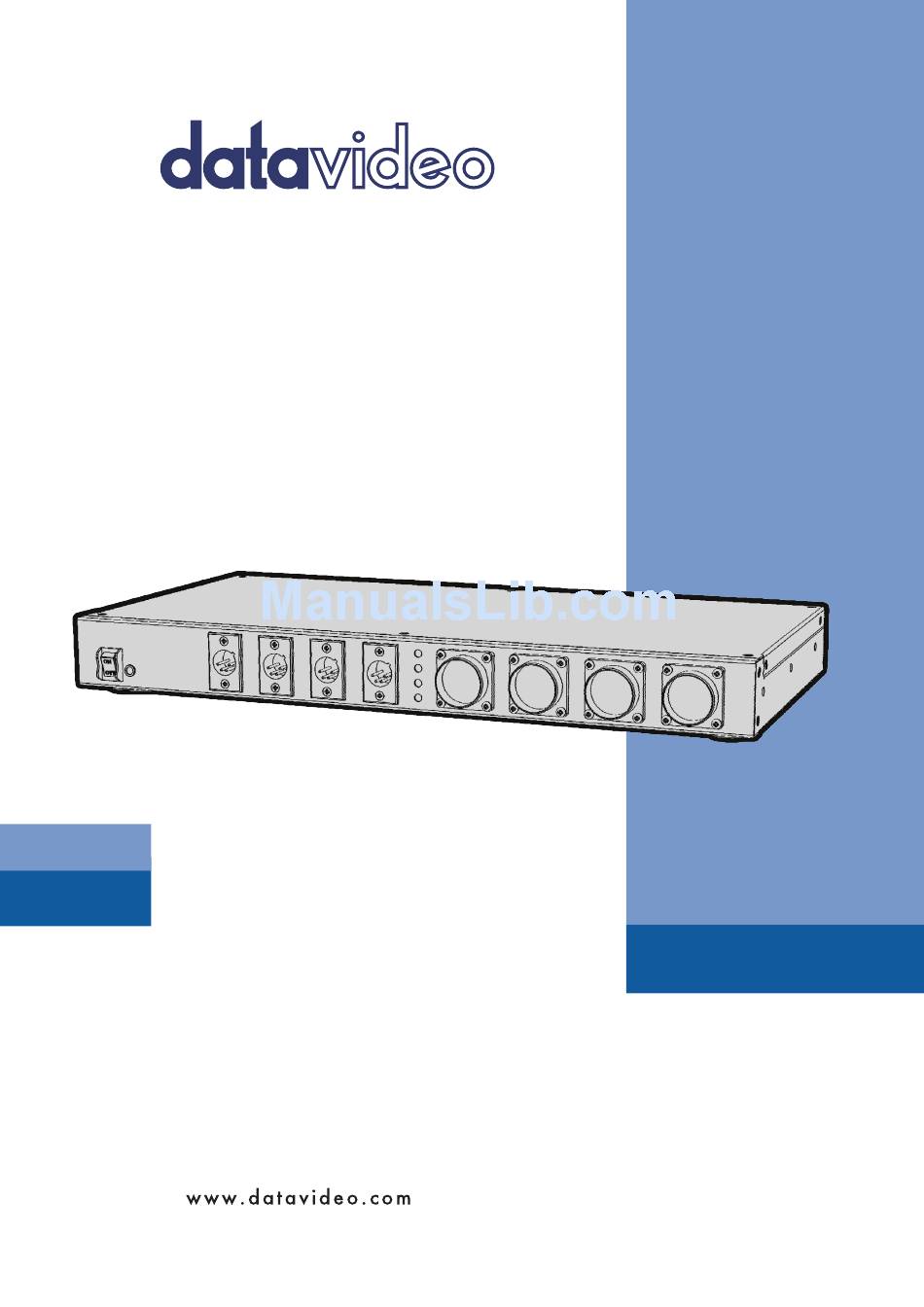

- Page 1 CAMERA CONTROL UNIT CCU-100J / CCU-100P /CCU-100S Instruction manual...
-
Page 2: Table Of Contents
SERVICE & SUPPORT ............................- 20 - Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. -
Page 3: Fcc Compliance Statement
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. -
Page 4: Warranty
Warranty Standard Warranty Datavideo equipment are guaranteed against any manufacturing defects for one year from the date • of purchase. The original purchase invoice or other documentary evidence should be supplied at the time of any • request for repair under warranty. -
Page 5: Disposal
Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 6: Product Overview
(*) please visit our website www.datavideo.com The CCU-100 kit can be used for passing on power to professional video cameras from the Datavideo PD-6* power centre and handling signals sent over the camera cables (CB-43 / 44 / 45 / 49*) to a switcher. In this way, it is used to remotely set up various camera parameters such as iris, shutter, gain, and master pedestal using an MCU-200 (S/P/J)*. -
Page 7: Example Ccu-100 Studio System Based On Datavideo Products
Example CCU-100 Studio System based on Datavideo Products Communication between AD-2 (S/P/J) and CCU-100 is bidirectional. The signals in each direction are listed below: CCU-100 – to – AD-2 (S/P/J) • MCU-100 (S/P/J) / MCU-200 (S/P/J)* Control Signals • Look Back Signal •... -
Page 8: Ccu-100 Connections & Controls
CCU-100 Connections & Controls Front Panel Power Switch Switches the power On / Off. Note: Make sure all cables are connected properly before turning on the power. DC IN 48V The CCU-100 is powered by the PD-6 Power Center. Note: Make sure the power cable is plugged into the PD-6 60W DC Ports and the voltage is set to 48V. -
Page 9: Rear Panel
When connecting, use the socket and be sure to use wire with a cross-sectional area of at least 1.0 mm For more information on any of the products marked with an asterix (*) please visit our website www.datavideo.com - 9 -... -
Page 10: S/P/J) Connections & Controls
V-Mount plate as shown in the diagram below. It can also be used like a V-Mount Battery to power the camera. If the standard V-Mount plate is not found on the rear of the camera, the user can purchase a SLED (SLD-1) off the shelf from Datavideo. - 10 -... -
Page 11: Front View
Front View 10-PIN Jack Transmission of Tally, Power, Look Back PGM video, and View Finder from the AD-2 (S/P/J) to the TLM-430 monitor. Call Button The Call Button allows the camera operator to page the operator at the ITC-100 Intercom System with call tone via the CCU-100 Camera Control Unit. 3.5-mm Phone Jack Connector This connector also allows the connection of other operator headsets / headphones to the AD-2 (S/P/J) and serves the audio signal transmission to and from the... -
Page 12: Rear View
Rear View External Tally Socket Transmission of tally information from AD-2 (S/P/J) to SLD-1 SLED Side View Power Switch Selection of power output level (OFF/8.4 V/12 V/16.8 V) to camera Power Indicator Power Transmission Indicator Green: 8.4 V Amber: 12 V Red: 16.8 V Note: The 48V input will be converted by the AD-2 to a selectable power of 8.4V, 12V or 16.8V. - Page 13 Mini USB Port This USB port is reserved specifically for Firmware Upgrade. 3.5mm Jack This connects to the RMC-240 remote control. This RMC-240 control allows the user to activate the communication between the connected headset and the Intercom System as well as switch between Look Back and View Finder monitor modes.
-
Page 14: Top View
Top View Camera Remote Control 8 PIN for SONY Cameras (PMW EX3, PMW 300K, PMW 350K, PMW F5, PDW-510, and HDW-F900R) 10 PIN for Panasonic Cameras (AG-HPX255 / 300 / 301 / 302 / 304 / 370 / 371 / 372 / 500 / 502 / 600, AJ-HDX900, and AJ-HPX2700G / 3000) 2.5 mm LANC Phone Jack / Multicore PS/2 for JVC Cameras (GY- HM890U, GY-HM850U, GY-HM650U, GY-HM600U and GY-LS300CHU) -
Page 15: Rmc-240 Connections & Controls
RMC-240 Connections & Controls Look Back Button Press to switch between Look Back and View Finder TLM-430 monitor views. TALK Button Simply press to TALK. This Button is used to transmit the HP-3 audio signals from the AD- 2 (S/P/J) XLR connector back to the ITC-100 Intercom System via the CCU-100 Camera Control Unit. -
Page 16: Connections & Controls
HP-3 Connections & Controls The HP-3 headsets are designed for the cameraman to communicate with the director. The HP-3 should be connected to the 5-PIN XLR connector on the AD-2 (S/P/J). The Multi Transmission Adaptor Box (AD-2) then transmits audio signals to and from the ITC-100 Intercom System via the CCU-100 Camera Control Unit. Features •... -
Page 17: Specifications
Specifications CCU-100 Main Unit Specifications Item Parameter Remarks Connect to CB-43/44/45/49 All-in-One Cable Camera Input 17 Pin Jack x 4 (Signal transmission: HD-SDI, MCU Control, Power, Look Back, View Finder, Intercom, and Tally) For Look Back CV Signal Video Input Composite: BNC x 1 NTSC/PAL HD-SDI: SMPTE 292M... - Page 18 FOR YUGA AD-1 Tip: MIC Ring1: Phone 3.5mm Jack x 1 Ring2: GND TALK Sleeve: Talk PHONE PIN1: Power ground (P_GND) PIN2: Signal ground (GND) PIN3: Control signal for switching between Look Back and View Front View of the Finder images (SW-LB/VF) AD-2 Monitor PIN4: Tally output (Green T_G) Connector...
- Page 19 Power is generally fed from the V-mount battery pack. Power to Camera Power Output Total: Max 48W (Power to Monitor, Tally Light, Camera) (8.4V/12V/16.8V) (Condition: in 8.4V mode, the Max current is 4A) Dimension 175.5 x 126 x 85.2mm RMC-240 Remote Control Specifications Item Parameter Remarks...
-
Page 20: Service & Support
Service & Support It is our goal to make owning and using Datavideo products a satisfying experience. Our support staff is available to assist you to set up and operate your system. Contact your local office for specific support requests. Plus, DATAVIDEO WORLDWIDE OFFICES please visit www.datavideo.com to access our FAQ section.
