- Page 1 LOOK-BACK/RECORDER REMOTE CONTROLLER RMC-200 Instruction Manual w w w . d a t a v i d e o . c o m...
-
Page 2: Table Of Contents
Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer. -
Page 3: Fcc Compliance Statement
This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. - Page 4 service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions: When the power cord is damaged or frayed;...
-
Page 5: Warranty
Warranty Standard Warranty Datavideo equipment are guaranteed against any manufacturing defects for • one year from the date of purchase. The original purchase invoice or other documentary evidence should be • supplied at the time of any request for repair under warranty. -
Page 6: Disposal
The three-year warranty must be registered on Datavideo's official website • or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. -
Page 7: Introduction

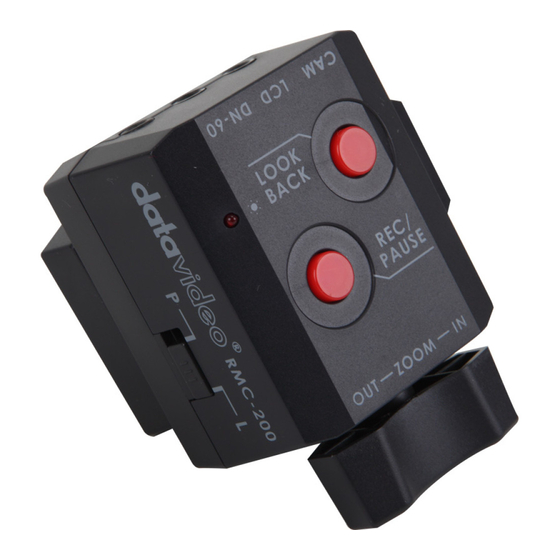

Introduction The RMC-200 Remote Controller is designed to be mounted on the tripod arm for remote controlling the professional camcorder and the portable monitor. Features • Multi-functional controller to remote control camera, TLM-430 Look Back monitor & DN-60A CompactFlash card recorder •... -
Page 8: Functions
Functions DN-60 Phone jack LCD Phone jack CAM Phone jack REC / PAUSE LOOK BACK ZOOM IN / OUT P / L Switch... - Page 9 DN-60 Phone jack Use a Φ3.5-to-Φ3.5 cable to connect the DN-60 recorder. LCD Phone jack Connects the TLM-430 monitor. CAM Phone jack Use a Φ2.5-to-Φ3.5 cable to connect Panasonic or SONY LANC camcorder. REC / PAUSE After the REC/PAUSE button is pressed, the DN-60 will start recording from camcorder and press again to pause recording on the DN-60.
-
Page 10: Dimensions
Dimensions... -
Page 11: Specifications
Specifications Cameras Sony, Canon, Panasonic *May not be applicable to certain camera models Clamp width Φ10mm—Φ40mm Cable Length CAM for Panasonic and SONY LANC camcorder: Φ2.5(three contacts) to Φ3.5(three contacts), Length: 60cm LCD TLM-430, Length:80cm DN-60:Φ3.5(four contacts) to Φ3.5(four contacts), Length: 80cm Weight Approx. -
Page 12: Service & Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to DATAVIDEO WORLDWIDE OFFICES common questions, support requests or contact your local office below.
