Makita TW002GZ Instruction Manual

Cordless impact wrench

Hide thumbs Also See for TW002GZ:

Instruction manual (88 pages)

Instruction manual (96 pages)

Instruction manual (12 pages)

page of 16

/ 16
Bookmarks

Quick Links

Download this manual

INSTRUCTION MANUAL

Cordless Impact Wrench

TW001G

TW002G

Read before use.

Need help?

Do you have a question about the TW002GZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Makita TW002GZ

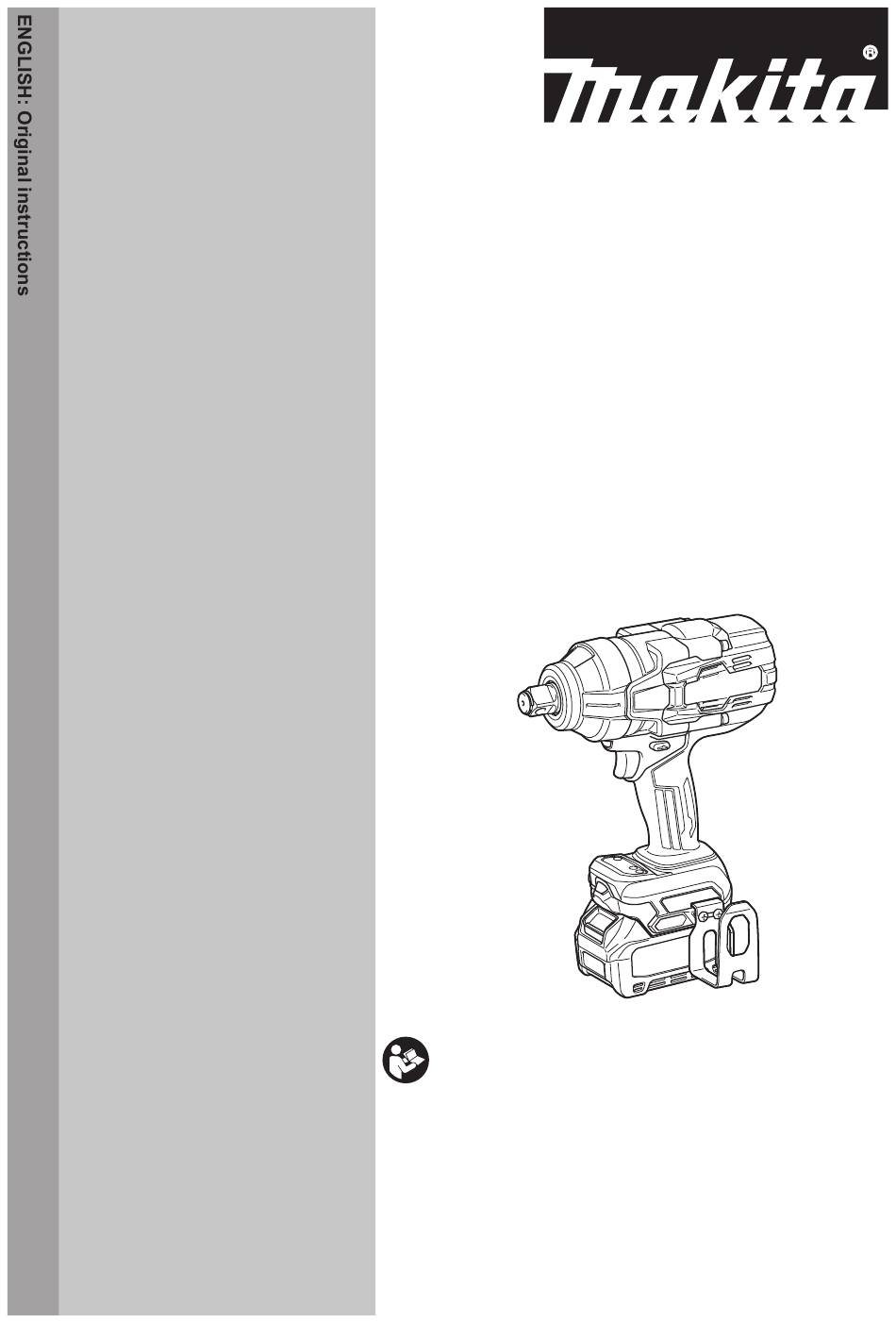

Page 1 INSTRUCTION MANUAL Cordless Impact Wrench TW001G TW002G Read before use.
Page 2 SPECIFICATIONS Model: TW001G TW002G Fastening capacities Standard bolt M12 - M36 High tensile bolt M10 - M27 Square drive 19.0 mm 12.7 mm No load speed (RPM) Max impact mode (4) 0 - 1,800 min Hard impact mode (3) 0 - 1,400 min 0 - 1,000 min Medium impact mode (2) 0 - 1,150 min...
Page 3 Noise WARNING: The vibration emission during actual use of the power tool can differ from the The typical A-weighted noise level determined accord- declared value(s) depending on the ways in which ing to EN62841-2-2: the tool is used especially what kind of workpiece Model TW001G is processed. Sound pressure level (L ) : 103 dB (A) WARNING:...
Page 4 or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Page 5 Battery tool use and care The proper fastening torque may differ depending upon the kind or size of the bolt. Recharge only with the charger specified by Check the torque with a torque wrench. the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire Make sure there are no electrical cables, water when used with another battery pack.
Page 6 18. Keep the battery away from children. SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life Charge the battery cartridge before completely discharged.
Page 7 To start the tool, simply pull the switch trigger. Tool Charge the battery(ies) or replace it/them with speed is increased by increasing pressure on the switch recharged battery(ies). trigger. Release the switch trigger to stop. Let the tool and battery(ies) cool down. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. Indicating the remaining battery capacity Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. Fig.3 ► 1 . Switch trigger NOTE: The tool automatically stops when you keep pulling the switch trigger for about 6 minutes.
Page 8 ON. When the lamp does not come This tool is equipped with an electric brake. If the tool on, the lamp status is OFF. consistently fails to quickly stop after the switch trigger is released, have the tool serviced at a Makita service NOTE: When the tool is overheated, the light flashes center. for one minute, and then the LED display goes off. In this case, cool down the tool before operating again.
Page 9 Changing the application mode Changing the impact force You can change the impact force in four steps: 4 (max), 3 (hard), 2 (medium), and 1 (soft). This allows a tightening suitable to the work. The level of the impact force changes every time you press the button You can change the impact force within approximately one minute after releasing the switch trigger. NOTE: You can extend the time to change the impact force approximately one minute if you press the but- Fig.7 Application mode Maximum blows Purpose (Impact force grade displayed on...
Page 10 Changing the application mode This tool employs several easy-to-use application modes for driving bolts with good control. The type of the application mode changes every time you press the button You can change the application mode within approximately one minute after releasing the switch trigger. NOTE: You can extend the time to change the application mode approximately one minute if you press the button Fig.8 Application mode Feature Purpose (Assist type displayed on panel) Bolt mode Clockwise Clockwise This mode helps to repeat screw- Preventing overtightening of driving continuously with equal bolts. torque. This mode also helps to Counterclockwise reduce the risk of breakage of Loosening bolts.
Page 11 Application mode Feature Purpose (Assist type displayed on panel) Bolt mode (3) Clockwise – The tool stops automatically approximately 1 second later from the moment that the tool has started impact blows. Counterclockwise The tool slows down the rota- tion after it has stopped impact blows. : The lamp is on.
Page 12 For impact socket without O-ring and pin Ring Only for model TW002G Country specific Push the impact socket onto the square drive until it locks into place. CAUTION: Before using the ring, always To remove the impact socket, simply pull it off. make sure that the bracket and ring are secured and not damaged.
Page 13 ► 1 . Hammer case NOTE: Hold the tool pointed straight at the bolt or nut. CAUTION: These accessories or attachments NOTE: Excessive fastening torque may damage the are recommended for use with your Makita tool bolt/nut or impact socket. Before starting your job, specified in this manual. The use of any other always perform a test operation to determine the accessories or attachments might present a risk of proper fastening time for your bolt or nut.
Page 14 • Makita genuine battery and charger NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country. 14 ENGLISH...
Page 16 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885A68-227 20240604...
