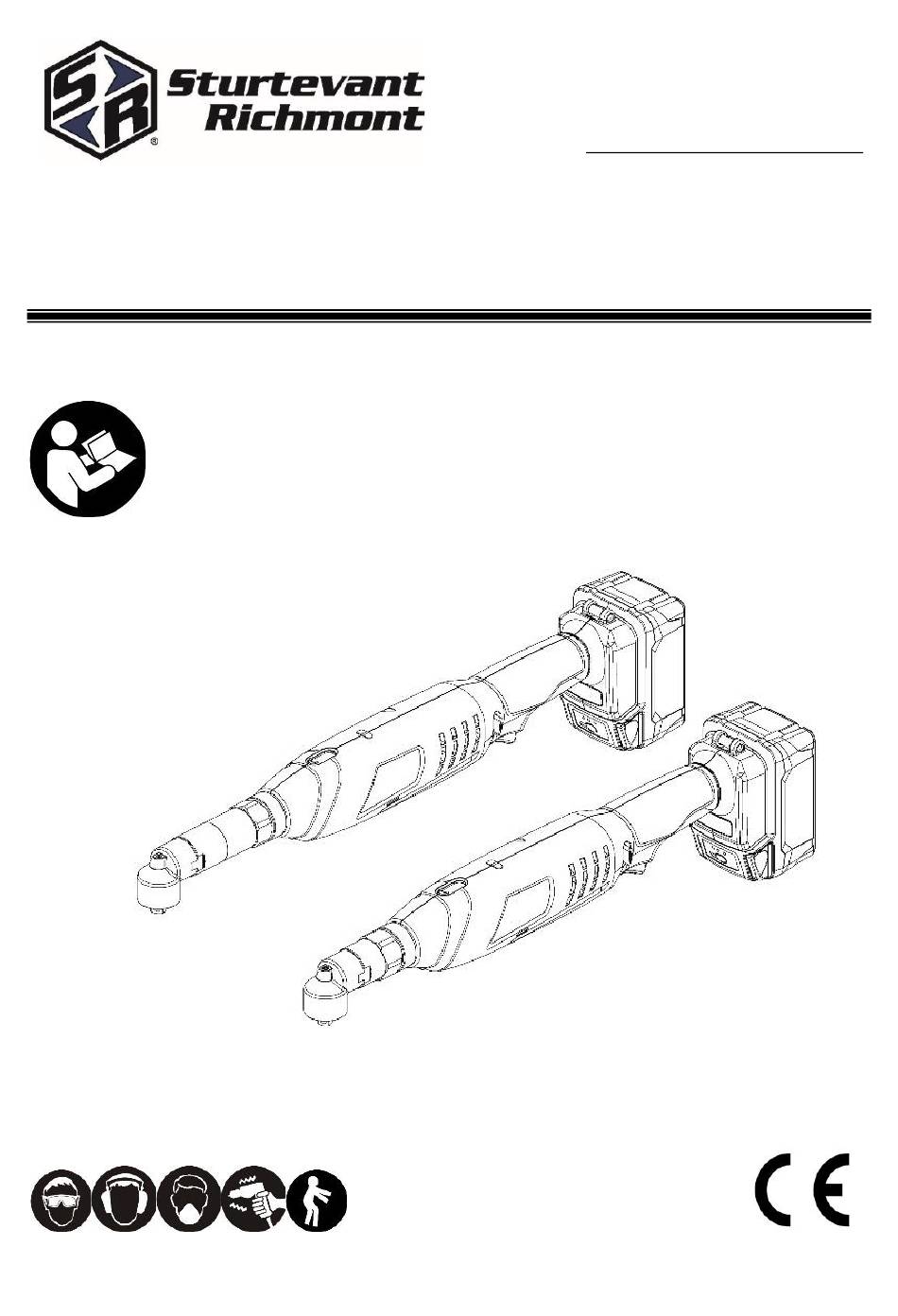

2100PTA-45
2100PTA-90

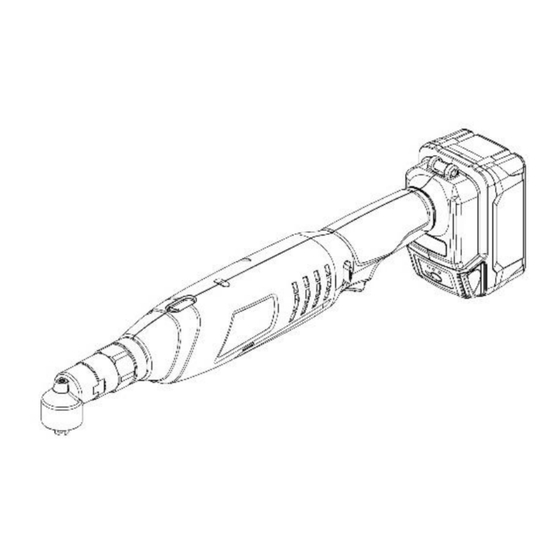

WIRELESS ANGLED POWER TOOL
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY,
OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT.
DO NOT ATTEMPT TO OPERATE THE TOOL UNTIL YOU HAVE READ AND
UNDERSTOOD ALL INSTRUCTIONS AND SAFETY RULES CONTAINED IN THIS
MANUAL. FAILURE TO COMPLY MAY RESULT IN ACCIDENTS INVOLVING
FIRE, ELECTRIC SHOCK, OR SERIOUS PERSONAL INJURY. SAVE THIS
OWNER'S MANUAL FOR FUTURE REFERENCE AND REVIEW IT FREQUENTLY
FOR SAFE OPERATION.
SRT857443 Rev. A
PRODUCT INFORMATION MANUAL
- 1 -
555 Kimberly Drive, Carol Stream, IL 60188
Phones: 847/455-8677 800/877-1347
E-mail: CustomerService@srtorque.com
Original Instructions
Fax: 847/455-0347
5/17/2024
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sturtevant Richmont 2100PTA-45
Summary of Contents for Sturtevant Richmont 2100PTA-45
- Page 1 555 Kimberly Drive, Carol Stream, IL 60188 Phones: 847/455-8677 800/877-1347 Fax: 847/455-0347 E-mail: CustomerService@srtorque.com 2100PTA-45 2100PTA-90 WIRELESS ANGLED POWER TOOL PRODUCT INFORMATION MANUAL THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. DO NOT ATTEMPT TO OPERATE THE TOOL UNTIL YOU HAVE READ AND UNDERSTOOD ALL INSTRUCTIONS AND SAFETY RULES CONTAINED IN THIS MANUAL.
- Page 2 INTENDED USE This tool is intended for trained adult use only. This right-angle wrench /right angle screwdriver is designed to remove and install threaded fasteners. GENERAL SAFETY RULES Read all safety warnings, instructions, illustrations, and specifications WARNING provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
- Page 3 WARNING LABEL IDENTIFICATION Read Manuals Before Operating Product. Wear Eye Protection. Wear Hearing Protection. Wear Dust Mask. Power tools can vibrate in use. Keep body stance balanced and firm. Do not overreach when operating this tool. Recycling Do not drop the battery and charger into trashcan. CE marking is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold within the European...
- Page 4 WORK AREA WARNING Keep work area clean and well lit. Cluttered and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool.
- Page 5 Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. TOOL USE AND CARE WARNING Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
- Page 6 Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
- Page 7 SYMBOLS The label on your tool may include the following symbols. The symbols and their definitions are as follows: SYMBOL NAME EXPLANATION Volts Voltage (potential) No Load Speed No-load Rotational Speed Kilograms Weight Direct Current Type of Current d.c. Revolutions per Revolutions, Surface Speed, Strokes, etc.
- Page 8 SPECIFICATIONS Model Number Unit 2100PTA-45 Voltage 3/8” sq. Drive/Anvil Tightening Torque 18-45 Programmable Speed 210-300 Tool Weight (with battery 4.0Ah) 2.36 Noise value = 69.8 dB(A), K = 3.0 dB(A) Vibration value = 5.31 m/s , K= 1.5 m/s Model Number...
- Page 9 ASSEMBLY INSTALLING OR REMOVING BATTERY PACK TO INSTALL BATTERY PACK: Push battery pack (A) onto tool (B) until it locks in place (see Fig. 1). TO REMOVE BATTERY PACK: Depress the two side release buttons on battery pack and pull battery pack (A) off of the tool (B) (see Fig.1). Fig.
- Page 10 2. Insert the provided screwdriver (A) into the hole (B) (see Fig.3). Fig.3 3. Turn the screw plug to setup the torque (see Fig.4). Fig.4 NOTE: Remove the battery from the tool before adjusting the torque setting to avoid touching the trigger and starting the tool.
- Page 11 OPERATION OVERVIEW The 2100PTA Series Wireless Angled Power Tools are designed to work with the Global 400 and Global 400mp controller systems. These wireless tools are designed for industrial assembly use. The tool is completely dependent on the Global 400/400mp for directions and torque results reporting.
- Page 12 TOOL OPERATION Select a parameter for the tool from the controller. The tool will beep indicating it has been enabled. Once a fastening is completed, the tool will light an LED and beep then send OK/NOK result data to the controller. The Rundown Time and Rundown Turns must fall within the range specified by the parameter to be qualified as an OK result.
- Page 13 INSTALLING THE SOCKET ONTO ANVIL Align the socket retention hole with the spring pin on the anvil. Depress the spring pin. Slide the socket onto the anvil. The spring pin will release. Verify the socket is retained. Fig.8 BATTERY POWER INDICATOR Press the Battery Status button to show the battery pack’s remaining capacity (see Fig.
- Page 14 TYPICAL WORK SEQUENCE 1. Install the socket onto the anvil. 2. Select a parameter for the tool on the controller. The tool will beep when it is enabled and ready for use. 3. Place the socket onto the fastener on the workpiece. 4.
- Page 15 MAINTENANCE Remove the battery pack from this tool before cleaning. WARNING This tool is lubricated before it leaves the factory. This lubrication should last for the life NOTE of the tool. No further lubrication is required. This is a precision tool. Disassembly, assembly, and adjustment require DANGER exclusive jigs, testers, and trained technicians.
