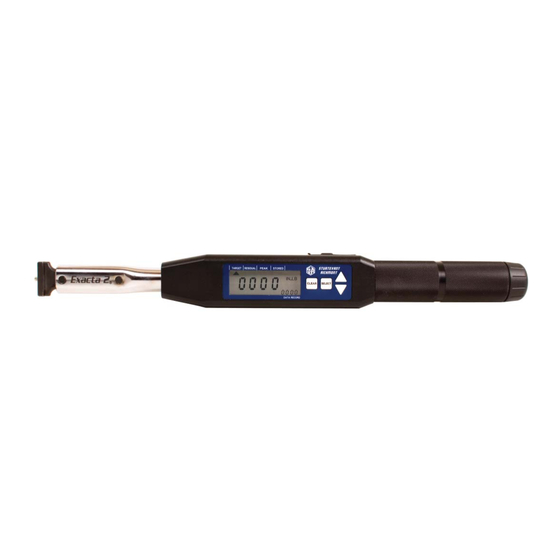

Sturtevant Richmont Exacta 2 Operating And Service Manual

Digital torque wrenche
Hide thumbs Also See for Exacta 2:

Advertisement

Quick Links

Download this manual
NOTE:
This tool requires the use of rechargeable NiMH AA batteries. Using ANY other type of battery immediately
voids the 1-year limited warranty on this tool. The electronic circuit of the 1200 Series was designed to save
power and operate on 1.2 volts. NiMH AA batteries are designed to provide ONLY 1.2 volts. AA Alkaline
batteries provide 1.5 volts and therefore can damage the electronics.
Tool Overview:
SR 1200-Series Exacta
400mp process monitor/process monitors. These are the first digital torque wrenches with wireless
capability that are designed for industrial assembly use. The wrench is completely dependent on the Global
400/400mp for directions and torque results reporting.
wrench keypad is disabled.
These tools are designed for ease of use. Operators simply pull to green, there are no buttons to push.
The display and audible signal the operator of the status for each tightening. The display and Fresnel
turn yellow when approaching minimum torque. The display turns green with an audible beep when
target torque is achieved. Exceeding maximum torque causes the screen to turn red and the audible
beep changes to one long tone.
*Details on programming the tool through the Global 400/400mp process monitors are found in the
process monitor manual and "how to" videos at www.srtorque.com. The 1200-Series Exacta 2
does not communicate with the Global 8.
Safety: Always wear appropriate personal safety equipment when operating this tool.
□ Never use this tool for any purpose other than that for which it is intended.
□ Never use the tool beyond its' rated torque capacity.
□ Never immerse the tool in liquids.
Battery and Battery Charger Selection
The Exacta
®
2 digital torque wrench has very specific battery requirements.
• Use of any batteries not meeting SR NiMH AA rechargeable battery requirements could
electronically and physically damage the tool and immediately void the warranty.
• BATTERY CHARGING NOTE: The first time you charge NiMH batteries the batteries should remain
charging for at least 24 hours. Removing the batteries from the charger prior to 24 hours shortens
battery life and the number of cycles a battery can power in the wrench.
Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page 1 of 14
Sturtevant Richmont
Operating and Service Manual
1200-Series Exacta® 2 Digital Torque Wrench
2 Digital Torque Wrenches are designed to work with the Global 400 and Global
®
Accurate Reliable Durable: Tools You Trust
555 Kimberly Drive Carol Stream, IL 60881
Worldwide: +1-847/455-8677 US Toll Free 800/877-1347
Once connected to the Global 400/400mp, the
Fax: 847/455-0347
CustomerService@srtorque.com
www.srtorque.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Exacta 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Sturtevant Richmont Exacta 2

Summary of Contents for Sturtevant Richmont Exacta 2

  • Page 1 *Details on programming the tool through the Global 400/400mp process monitors are found in the process monitor manual and "how to" videos at www.srtorque.com. The 1200-Series Exacta 2 does not communicate with the Global 8.
  • Page 2 There are two 1200-Series Exacta® 2 digital torque wrench models that come equipped with a fixed ratchet. The 250 foot-pound capacity and 600 ft. lb. The ratchets should be disassembled and cleaned Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page 2 of 14...

  • Page 3: Component Identification

    The grip is where the tool should be grasped when in use. The load point on the grip is marked by the plain ring in the center of the grip. Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page 3 of 14...
  • Page 4 16. Rear Cover The rear cover permits access to the electronics when repair is required; it should not be removed except for repair situations requiring its’ removal. Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page 4 of 14...
  • Page 5 To change a tools location within a facility and connect that tool to a different Global 400 the tool must be erased from the original Global 400/400mp. Associating a 1200 Series Exacta 2 with a Global 400/400mp is fast and easy. See the Global 400/400mp owner’s manual for details and processes.
  • Page 6 2 of these instructions.) When changing the CCL the wrench has internal formula that compensates for that change when that change is entered into the tool by the Global 400 or Global 400mp. Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page 6 of 14...
  • Page 7 1. Type the diagnostic “D” Command into the terminal and press <enter>. The Terminal program will display “DiaOn”. You are now in diagnostic mode. 2. Type the M <enter>. The capacity of the tool should be seen on the display. Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page 7 of 14...
  • Page 8 4. Use the UP arrow to scroll through the units of measure to get to inch pounds (in lbs). Inch pounds is the default calibration unit of measure for all Exacta 2 tools. When you reach inch pounds press the Select key on the tool keypad.
  • Page 9 11. Press the Up arrow key until 20 appears in the lower right corner of the LCD display. Apply 20% CW FS load to the unit. When exactly 20% CW FS torque is applied, press the DOWN arrow key. Unload the tool. Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page 9 of 14...
  • Page 10 FS load to the unit. When exactly 10% CCW FS torque is applied, press the DOWN arrow key. Unload the tool. Remove the torque from the wrench. Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page 10 of 14...
  • Page 11 Torque Value in Ft.Lb % FS In.Lb + Tol. -Tol. 30.3 29.7 60.6 59.4 90.9 89.1 121.2 118.8 151.5 148.5 181.8 178.2 212.1 207.9 242.4 237.6 272.7 267.3 Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page 11 of 14...
  • Page 12 % FS In.Lb + Tol. -Tol. 1200 1212 1188 1500 1515 1485 1800 1818 1782 2100 2121 2079 2400 2424 2376 2700 2727 2673 3000 3030 2970 Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page of 14...
  • Page 13 Available Tool Baud Rates and Considerations Sturtevant Richmont 1200 Series Exacta 2 wrenches communicate at a baud rate of 19200. The Global 400 and 400mp baud rate is also 19200. Changing the baud rate on the wrench prevents that 1200 Series Exacta 2 digital torque wrench from communication with the Global 400 or 400mp.
  • Page 14 If the radio interference cannot be removed, changing the channel on the Global 400/400mp will be necessary. See the Global 400/400mp owner’s manual for direction Sturtevant Richmont - P/N 857317 - Issue Date 161024 - Page 14 of 14...
