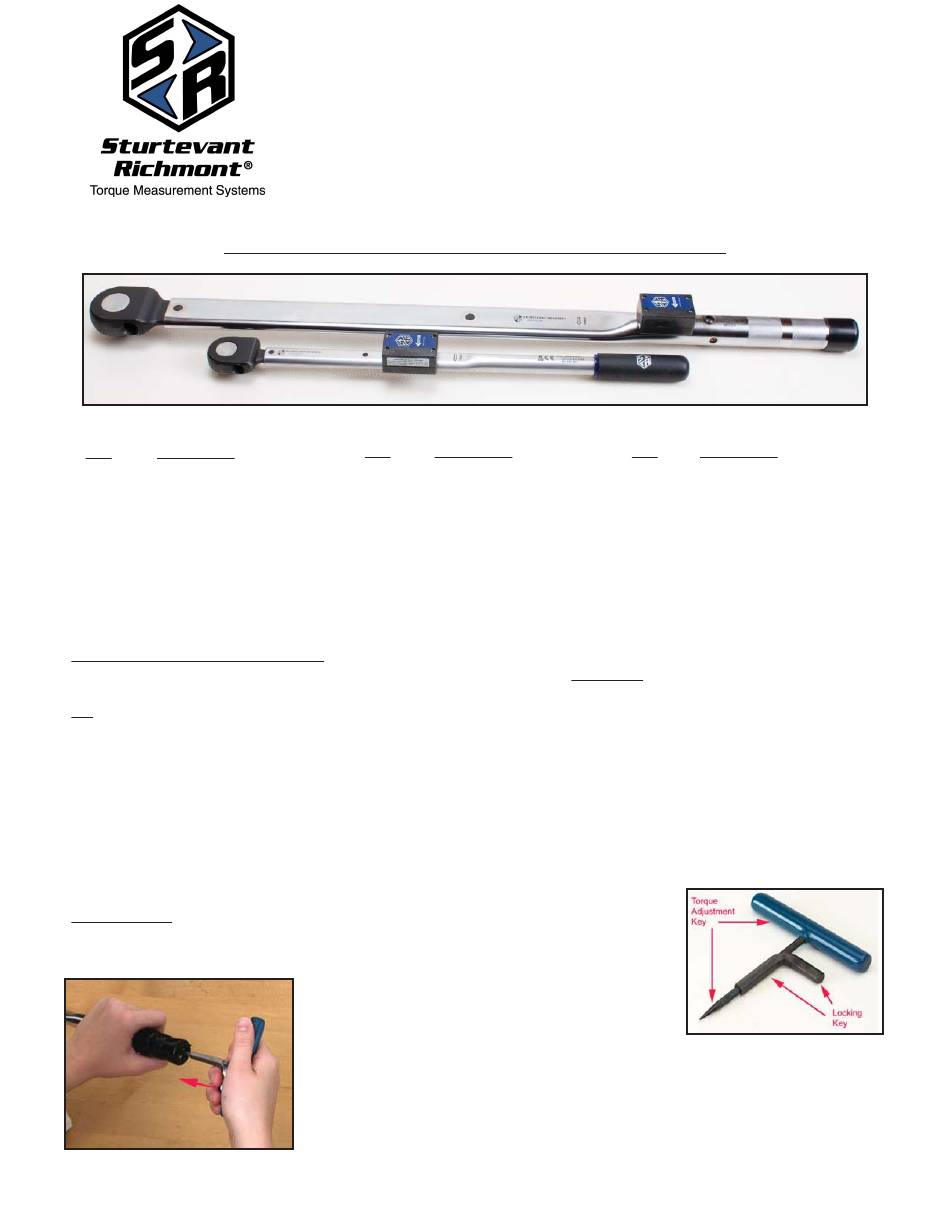

SLTC24-FM (2.4GHz) Torque Wrench Operating Instructions
Models to which these instructions apply:
P/N
Description
810416
SLTCR-FM 2.4GHz 3000I
810419
SLTCR-FM 2.4GHz 7200I
S/R SLTC-FM 2.4 GHz torque wrenches are designed and manufactured to provide consistent torque application in
multiple manufacturing and maintenance applications. They meet or exceed the requirements of ASME B107.300-
2010 and ISO 6789. These wrenches are accurate to +/-4% of the preset value from 20% to 100% of rated
capacity.
Interchangeable Heads and Dovetail
Any S/R interchangeable head may be used with the wrench. Note: It is imperative that the head used to preset the
torque wrench have the same common centerline length as the head that will be used in assembly. Failure to do so
will create a different torque output during assembly than that which was preset. To attach the head:
1. Align the head with the dovetail and slide it onto the dovetail until it contacts the retaining pin.
2. Use a small hex key or other device to depress the locking pin.
3. Slide the head completely onto the dovetail.
To remove the interchangeable head:
1. Use small hex key or similar device to depress the locking pin through the access hole in the rear of the
head.
2. While the pin is depressed, slide the head sideways to hold the pin down and remove the hex key.
3. Slide the head completely off the dovetail.
Torque Setting
A torque tester of +/- 1% indicated value accuracy or better, an S/R CART (Combination
Adjusting and Release Tool shown at right), and an interchangeable head having the
Sturtevant Richmont
P/N
Description
810417
SLTC-FM 2.4GHz 3600I
same common centerline length as the head that will be
used in assembly and capable of engaging the tester
are required.
1. Remove the protective cap and insert the Torque Adjustment Key fully into the
rear of the wrench so the hex engages the adjustment nut. Do not engage the
Lock Key. Rotate the Torque Adjustment Key slightly clockwise to disengage the
adjustment nut from the lock nut.
The Tools You Trust
555 Kimberly Drive Carol Stream, IL 60188
Phones Worldwide: +1 847/455-8677
Toll Free US Only: 800/877-1347
Fax: 847/455-0347
CustomerService@srtorque.com
www.srtorque.com
P/N
Description
810418
SLTC-FM 2.4GHz 4800I
P/N 857331 B Revised 6/30/15
