Sturtevant Richmont SLTC Series Service And Operating Instructions

SLTC, SLTCS and SLTCR Series Switch Torque Wrenches

Applicable Products

P/N Model
810230 SLTC 150I
810231 SLTC 300I
810232 SLTC 750I
810233 SLTC 1800I
810155 SLTC 3600I
810152 SLTCS 7200I
810154 SLTCR 7200I

Introduction

Sturtevant Richmont preset torque wrenches are designed and manufactured to provide consistent user-selec-
table torque in high-cycle applications.
All of these torque wrenches are designed and equipped to provide hardwire electric communication of the start
and finish of the "click" of the wrench. They may be used with the S/R Programmable Torque Verifier (PTV) or
wired directly to a PLC to asist in error-proofing the assembly process. The SLTC-Series tools use the S/R dove-
tail system and accept all S/R Interchangeable Heads. The SLTCS has a fixed square drive, and the SLTCR has
a ratcheting square drive instead of the dovetail.
These tools indicate torque in the clockwise direction only as indicated on the wrench case. The tools may be
used in the opposite (CCW) direction but will not indicate torque. When using the tools in either direction care
must be taken not to exceed the capacity of the wrench.

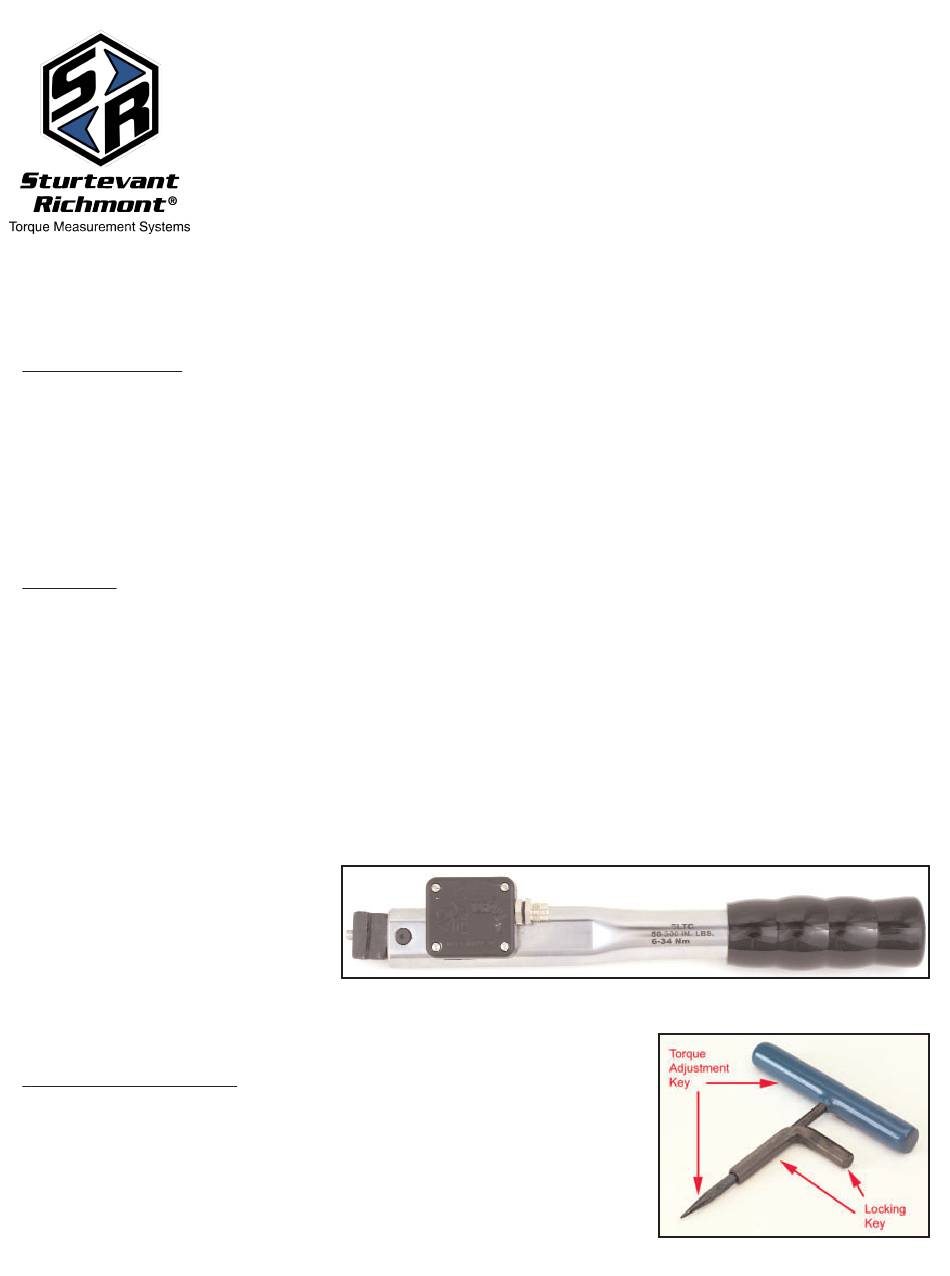

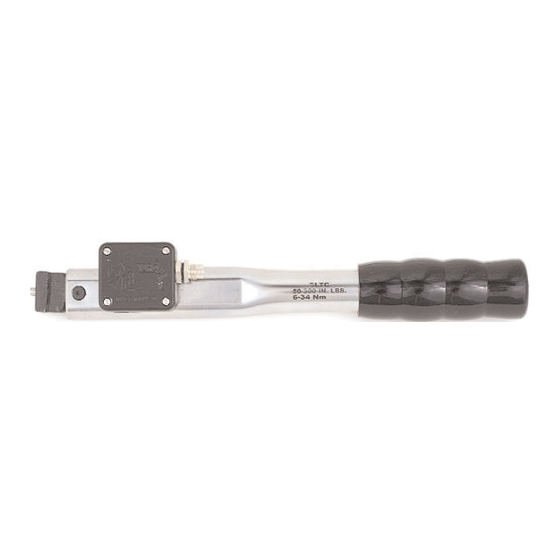

SLTC-Series Torque Wrench. The Switch
Assembly is the same on all Switch Wrench
series and capacities, and the torque pre-
setting procedure is the same for all.
The electric ratings are the same for all
SLTC-, SLTCR, and SLTCS-Series Switch Wrenches. The rating is 60 VAC/75 VDC at 3 Amperes maximum.
Torque Setting- Equipment
To set the torque on these torque wrenches the following are needed:
1. A torque tester of accuracy equal to or greater than 1% of indicated value.
2. An S/R CART Tool (Calibration and Removal Tool).
3. For SLTC-Series tools, an appropriate S/R Interchangeable Head of the
same common centerline length as will be used on the tool during
assembly is also needed.
Service and Operating Instructions Instructions
Description
Switch Wrench, hardwire, 150 in.lbs./17 Nm cap., preset, dovetail
Switch Wrench, hardwire, 300 in.lbs./34 Nm cap., preset, dovetail
Switch Wrench, hardwire, 750 in.lbs./85 Nm cap., preset, dovetail
Switch Wrench, hardwire, 1800 in.lbs./204 Nm cap., preset, dovetail
Switch Wrench, hardwire, 3600 in.lbs./408 Nm cap., preset, dovetail
Switch Wrench, hardwire, 7200 in.lbs./813 Nm cap., preset, 3/4" fixed Sq. Dr.
Switch Wrench, hardwire, 7200 in.lbs./813 Nm cap., preset, 3/4" Sq. Dr. ratchet
