Operating Instructions

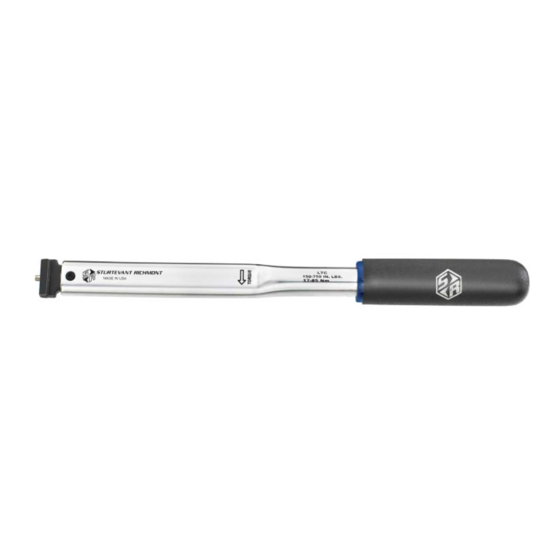

Preset Torque Wrenches - LTC/LTCR/LTCS Series
Sturtevant Richmont preset torque wrenches are designed and manufactured to provide consistent user-selectable
torque in high-cycle applications. They meet ASME B107.14 and ISO 6789 specifications of ± 4% indicated Value
accuracy from 20% to 100% of tool capacity.
he ratcheting and square drive tools (SDR & SD Series) operate and deliver torque in the clockwise (CW) direction
T
only, as shown by the arrow on the case. The wrench can be used in the counter-clockwise (CCW) direction within
the capacity of the tool, but will not indicate torque. The interchangeable head tools (LTC Series) may be used in
either direction with the same accuracy by removing the head and mounting it in the opposite direction.
S/R preset torque wrenches signal that the preset torque has been attained by emitting a distinct audible and tactile
impluse (click).
Preset torque wrenches do not have increments and must be set using a torque tester. These wrenches can be set
using any unit of torque measurement.
CART Tool for presetting torque.
