3000-Series Exacta® 2 Digital Torque Wrenches (All Models)

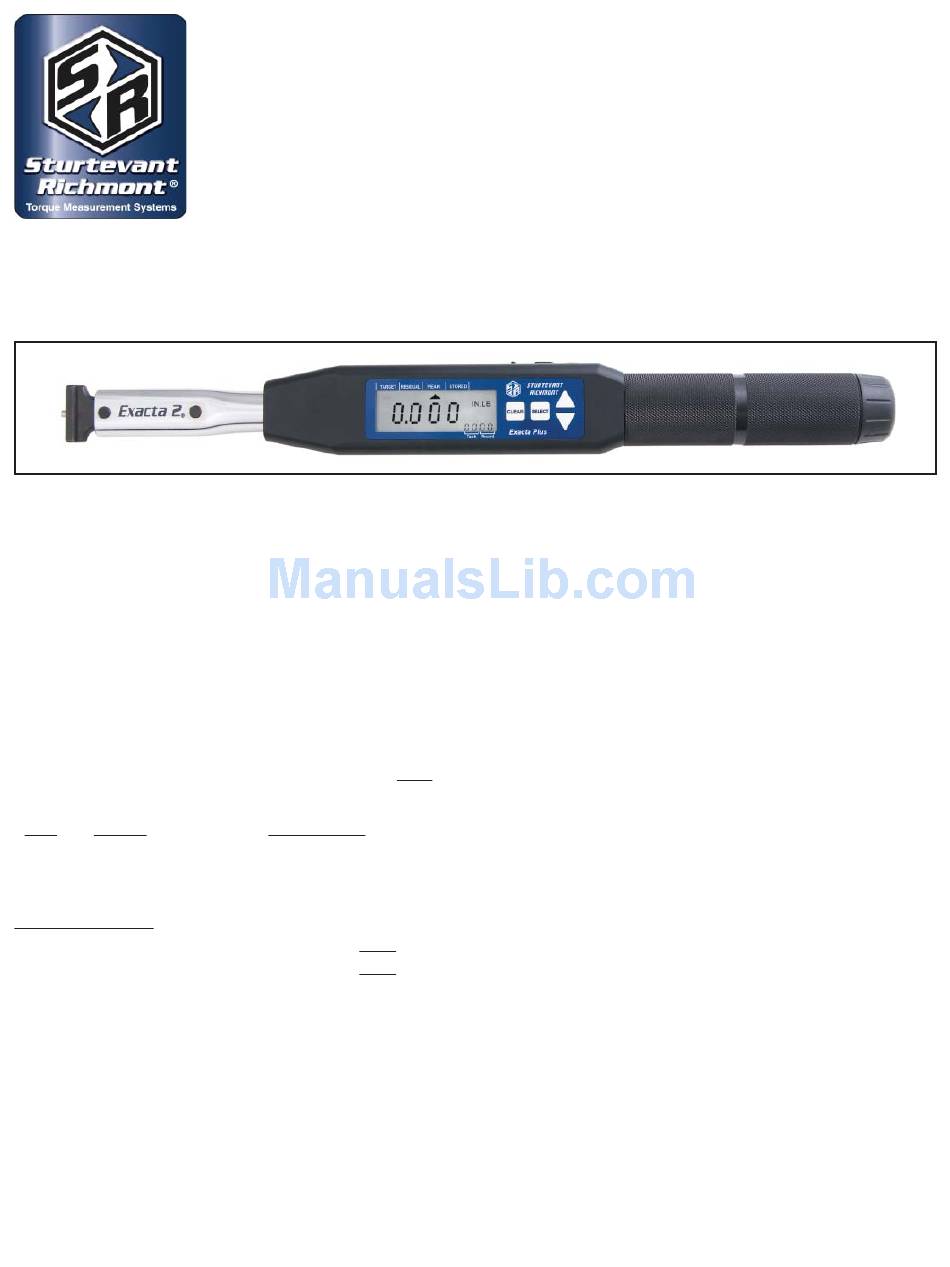

The 3000-Series Exacta
control and recording of the torque data are of high importance. They are the electromechanical tool portion
of an integrated system that includes Exacta Plus software from Sturtevant Richmont.
Safety
•
Always wear appropriate safety equipment when using this or any other hand tool.
•
Never use the tool for other than its designed purpose.
•
Never use the tool outside of its rated capacity.
Batteries and Battery Chargers
These tools were designed to use only and solely NiMH batteries having specifi c dimensions and operating
characteristics. Within NAFTA countries, the only batteries that are to be used with 3000-Series Exacta
digital torque wrenches are those immediately below.
P/N
Model
21259
Charger & 4 AA
21258
4 AA NiMH
Battery Caution!
•
Use of any other NiMH batteries may cause inaccurate torque readings.
•
Use of any other NiMH batteries may damage the tool and may void the warranty.
•
Use of any Alkaline battery will damage the tool and will void the warranty.
In countries outside of NAFTA, go to the S/R website page given below to select the correct batteries for
use with the 3000-Series Exacta
the 3000-Series Exacta
and used. The URL for the needed information is:
Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 1 of 14
Operating and Service Manual
2 Digital Torque Wrenches are designed for use in applications where accuracy,
®
Description
NiMH 4 AA NiMH 2200 mAh batteries & charger, NAFTA only
Batteries 2500 mAh NiMH batteries, spare
2 digital torque wrenches. The same cautions listed above apply to all of
®
2 digital torque wrenches, regardless of the country in which the tool is purchased
®
http://www.srtorque.com/batteries.html
Sturtevant Richmont
Global Reach. Local Support.
Division of Ryeson Corporation
3203 N. Wolf Road
Franklin Park, IL 60131
Phone: 847/455-8677 800/877-1347
Fax: 847/455-0347
Website: www.srtorque.com
E-mail: CustomerService@srtorque.com
2
®
Advertisement
Related Manuals for Sturtevant Richmont exacta 2 3000 series
Summary of Contents for Sturtevant Richmont exacta 2 3000 series
- Page 1 3000-Series Exacta 2 digital torque wrenches, regardless of the country in which the tool is purchased ® and used. The URL for the needed information is: http://www.srtorque.com/batteries.html Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 1 of 14...
- Page 2 ® use S/R slide pin ratchets. The ratchets should be disassembled and cleaned periodically. Ratchet renewal kits having the appropriate parts for each ratchet are available. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 2 of 14...
- Page 3 During normal use, the target torque or the current torque will be displayed, depending upon whether the tool is awaiting use or actually tightening a fastener. The triangular icons and text along the top indicate which value is being displayed. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 3 of 14...
- Page 4 Task. Use of the LED color scheme is selectable in the software (active or inactive). Active in all Tasks numbered greater than “00”. Not available in “Task 00” or “Record 00”. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 4 of 14...
- Page 5 After startup the last task and record number worked on will be displayed. If the tool memory has been cleared, the task and record will each be “00”. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 5 of 14...
- Page 6 If there is more than one task in the job it is necessary to make the fi rst task to be performed the active task. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 6 of 14...
- Page 7 5. Use the tool to apply the correct torque. This will store the new data where the old data was. You can then navigate to the next task and record to be worked on. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 7 of 14...
- Page 8 4. Start the Hyperterminal software on the computer. Note: Most versions of Microsoft Windows include Hyperterminal sofware. Other terminal emulation software programs will also work for this procedure. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 8 of 14...
- Page 9 - If over 1% of the tool capacity, the current torque value will be displayed. • Down arrow – Saves the new cal point and recalculates the current torque value. • Select button – Not used during this process Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 9 of 14...
- Page 10 12. Press the Up arrow key until 10 appears in the lower right corner of the LCD display. Apply 10% CW FS load to the unit. When exactly 10% CW FS torque is applied, press the DOWN arrow key. Unload the tool. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 10 of 14...
- Page 11 26. Turn tool ‘Off’, disconnect from computer, wait ten seconds then turn the tool ‘On’. This takes the tool out of calibration mode and places it in operating mode. It also provides a check to assure that the information was saved on the tool. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 11 of 14...
- Page 12 + Tol. -Tol. 181.8 178.2 363.6 356.4 545.4 534.6 727.2 712.8 1080 1090.8 1069.2 1260 1272.6 1247.4 1440 1454.4 1425.6 1620 1636.2 1603.8 1800 1818 1782 Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 12 of 14...
- Page 13 Parts and Repair Original parts and factory repair services are available when needed. Simply contact us using the informa- tion on the fi rst page of this document. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 13 of 14...
- Page 14 You can fi nd additional information (parts prints and other materials) on our website. You can also contact your S/R distributor or S/R Representative, or you can contact us using the information on the front of this document. Sturtevant Richmont - P/N 857285 - Issue Date 100407 - Page 14 of 14...
